When the right door is opened, part [A] (on each side) pulls open catch [B] (on each side), releasing
pressure on the pressure roller, so that it can turn freely to allow removal of jams. When the right door is
closed, part [C] pushes catch [B] closed, restoring normal pressure.
Separation

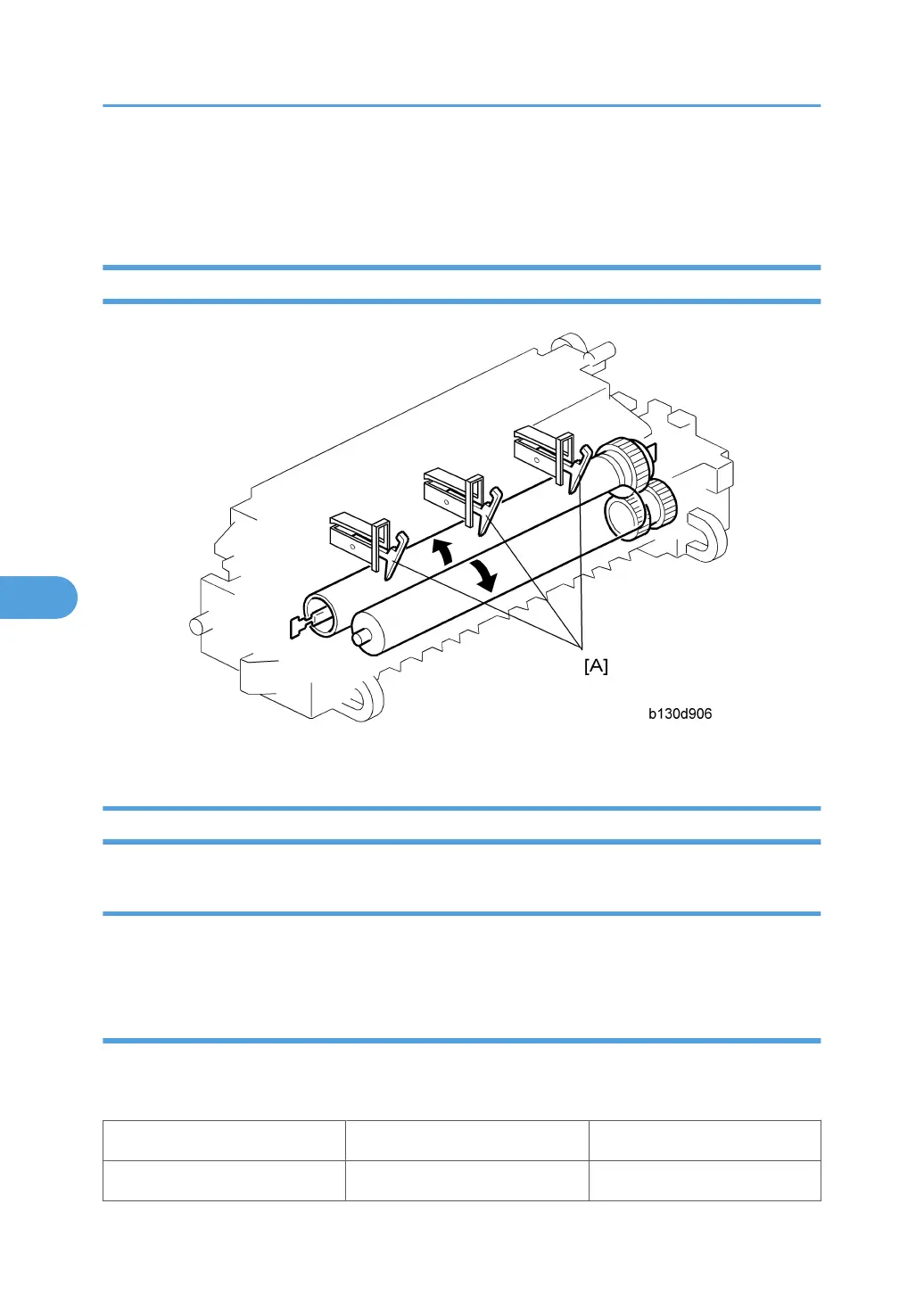

The hot roller stripper pawls [A] prevent paper from sticking to the hot roller.
Fusing Temperature Control
Control Process
The BICU references the signal from the thermistor every second. The BICU turns the fusing lamp on and
off based on the current temperature and the “target temperature”.
Target Temperature
The table lists the target temperatures. You can change these targets by the listed programs.
For the fusing temperature transition during copying, see (below).
Status/Condition Temperature SP
Warming up 160°C SP1-105-001
