Ricoh S-C3 F - Paper End Sensor; Registration Sensor

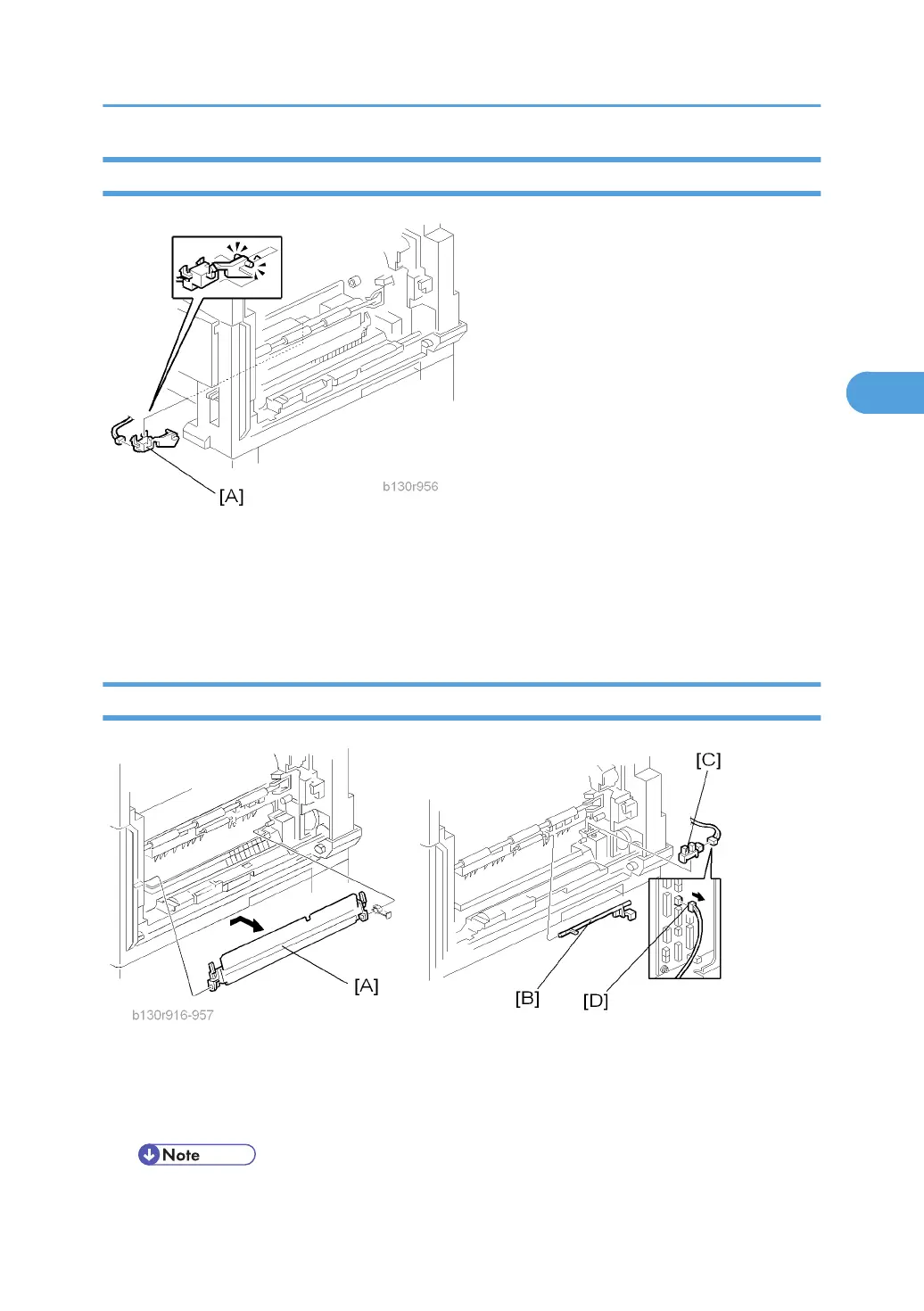

Paper End Sensor
1. Paper tray
2. Open the right door.
3. PCU (* ”PCU")
4. Paper end sensor [A] ( x 1)
Registration Sensor
1. Paper tray
2. Open the right door.
3. Open the paper guide [A].
• Remove the paper guide (Clip x 1) if you have difficulty removing the registration sensor.
Paper Feed
69
3
