Pressure Roller

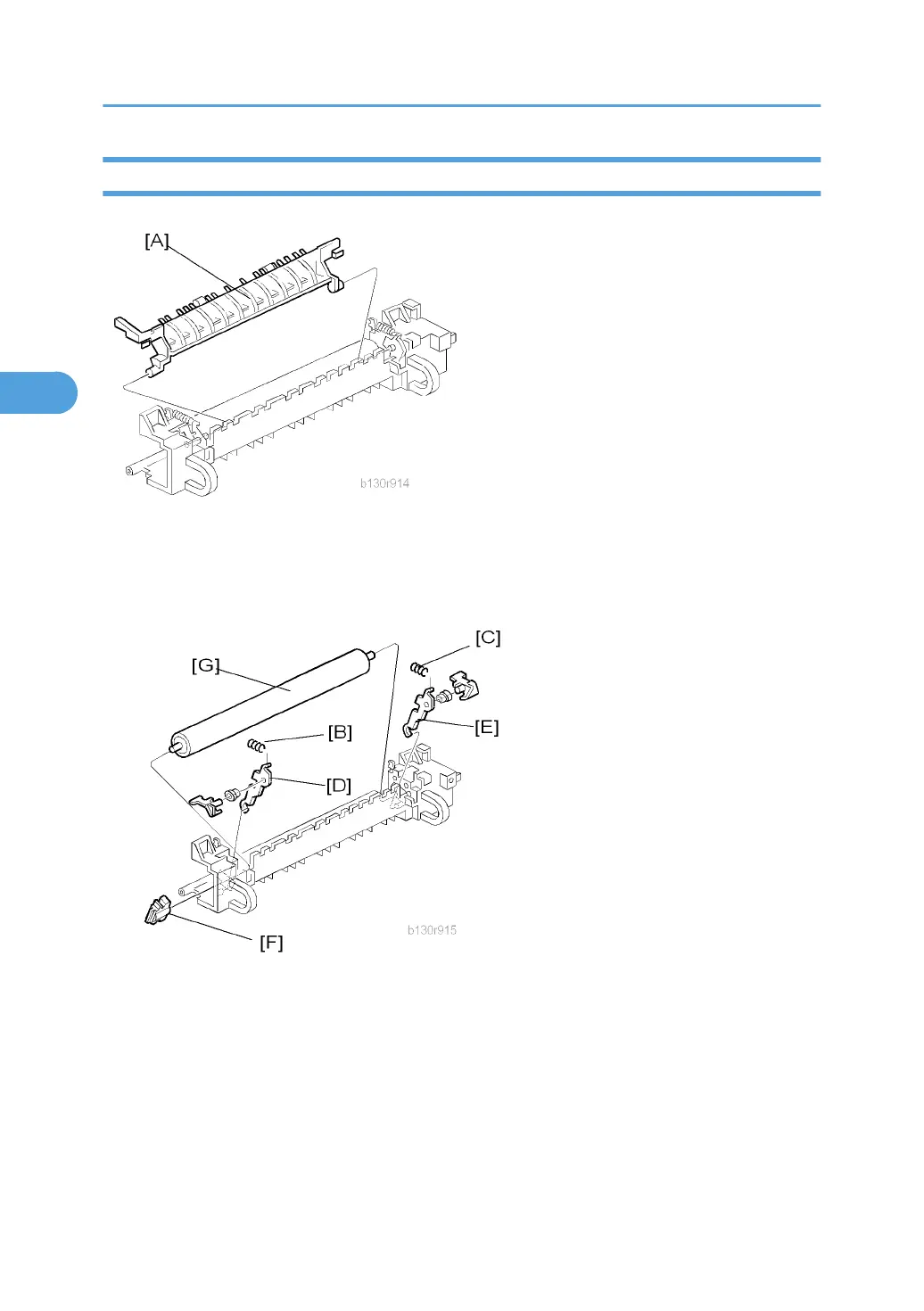

1. Separate the fusing unit into two sections (* "Hot Roller Stripper Pawls").
2. Fusing entrance guide [A]
3. Two springs [B][C]
4. Two pressure arms [D][E]
5. Bushing [F]
6. Pressure roller [G]
