Ricoh S-C3 F - Original Set and DF Inverter Sensor

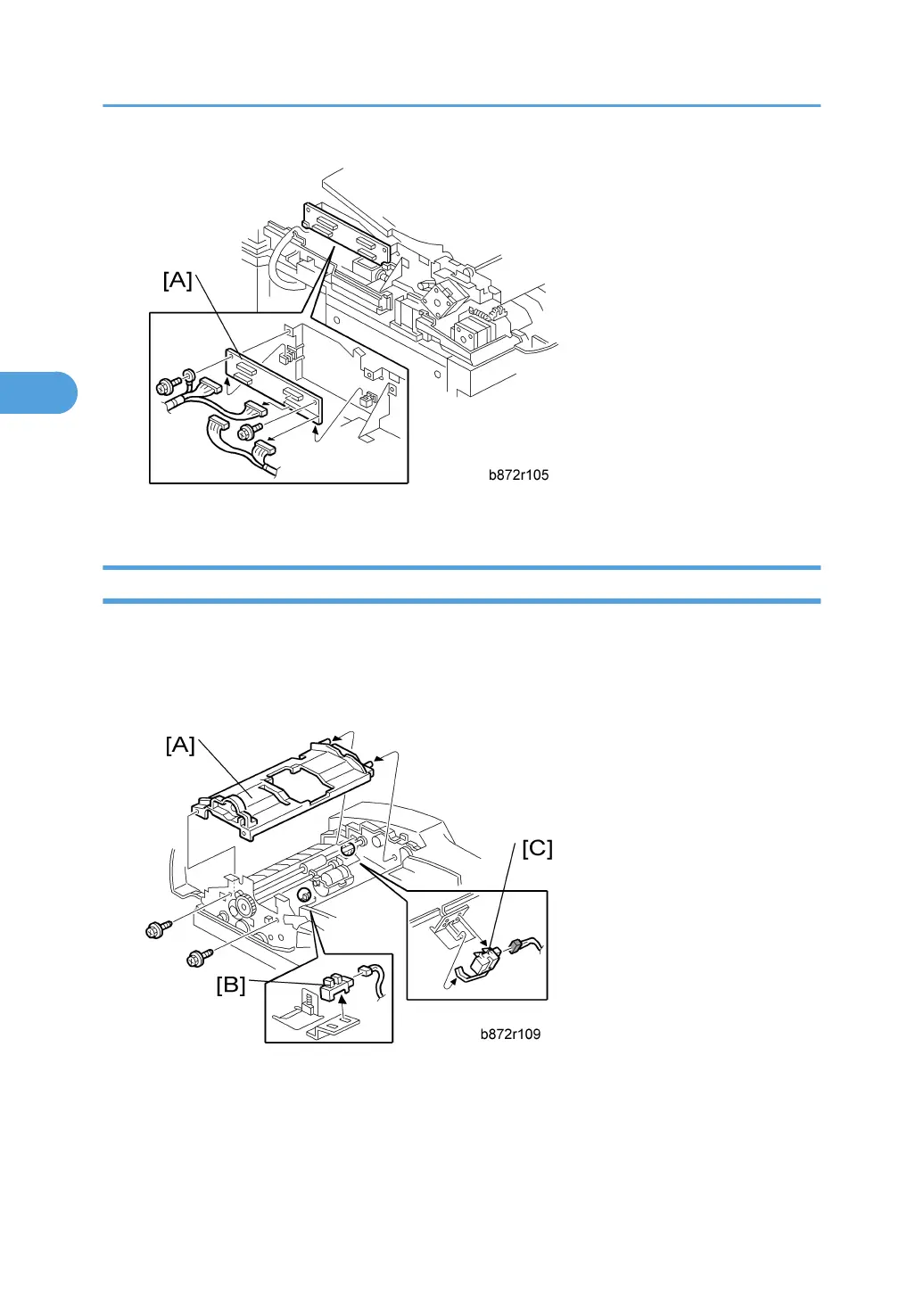

2. DF drive board [A] ( x 2,  x 4, ground cable x 1)
Original Set and DF Inverter Sensor
1. Open the DF left cover.
2. Original feed unit (* "Original Feed Unit")
3. DF feed clutch (* "DF Feed Clutch")
4. Original feed-in guide plate [A] ( x 2).
5. Original set sensor [B] ( x 1, hook)
6. DF inverter sensor [C] ( x 1, hook)
3. Replacement and Adjustment
94
3
