Ricoh S-C3 F - Image Fusing and Paper Exit

Image Fusing and Paper Exit

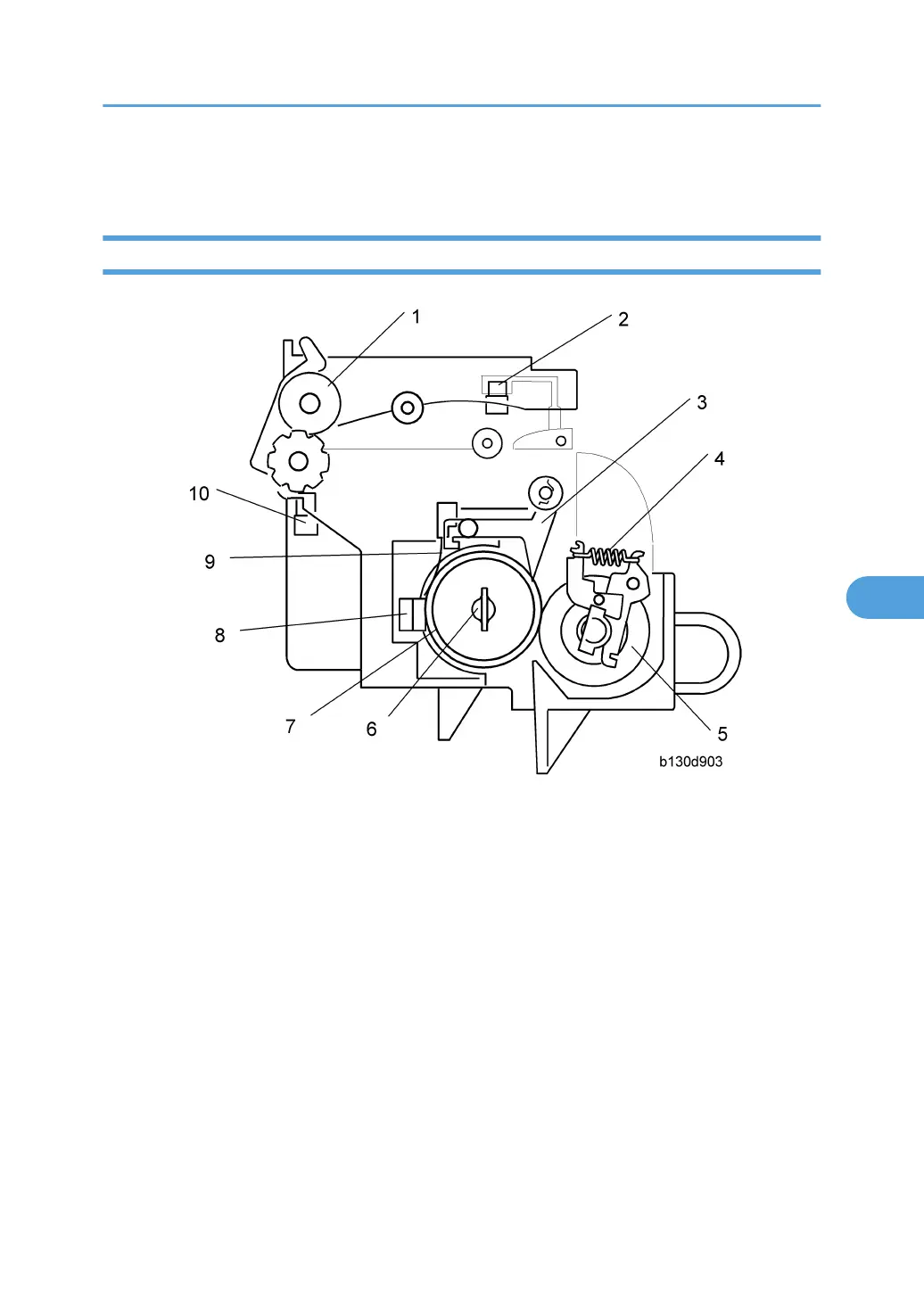

Overview
1. Exit Roller
2. Paper Path Sensor
3. Hot Roller Strippers
4. Pressure Spring
5. Pressure Roller
6. Fusing Lamp
7. Hot Roller
8. Thermoswitch
9. Thermistor
10. Exit Sensor
