4. Scanner HP sensor [A] ( × 1, hook)
Move the first scanner from the home position if you have difficulty removing the sensor.
Scanner alignment adjustment
1. Rear cover (* "Rear Cover")
2. Rear scale, upper right cover, front left cover, operation panel (* "Operation Panel and Upper
Covers")
3. Exposure glass (* ”Exposure Glass").

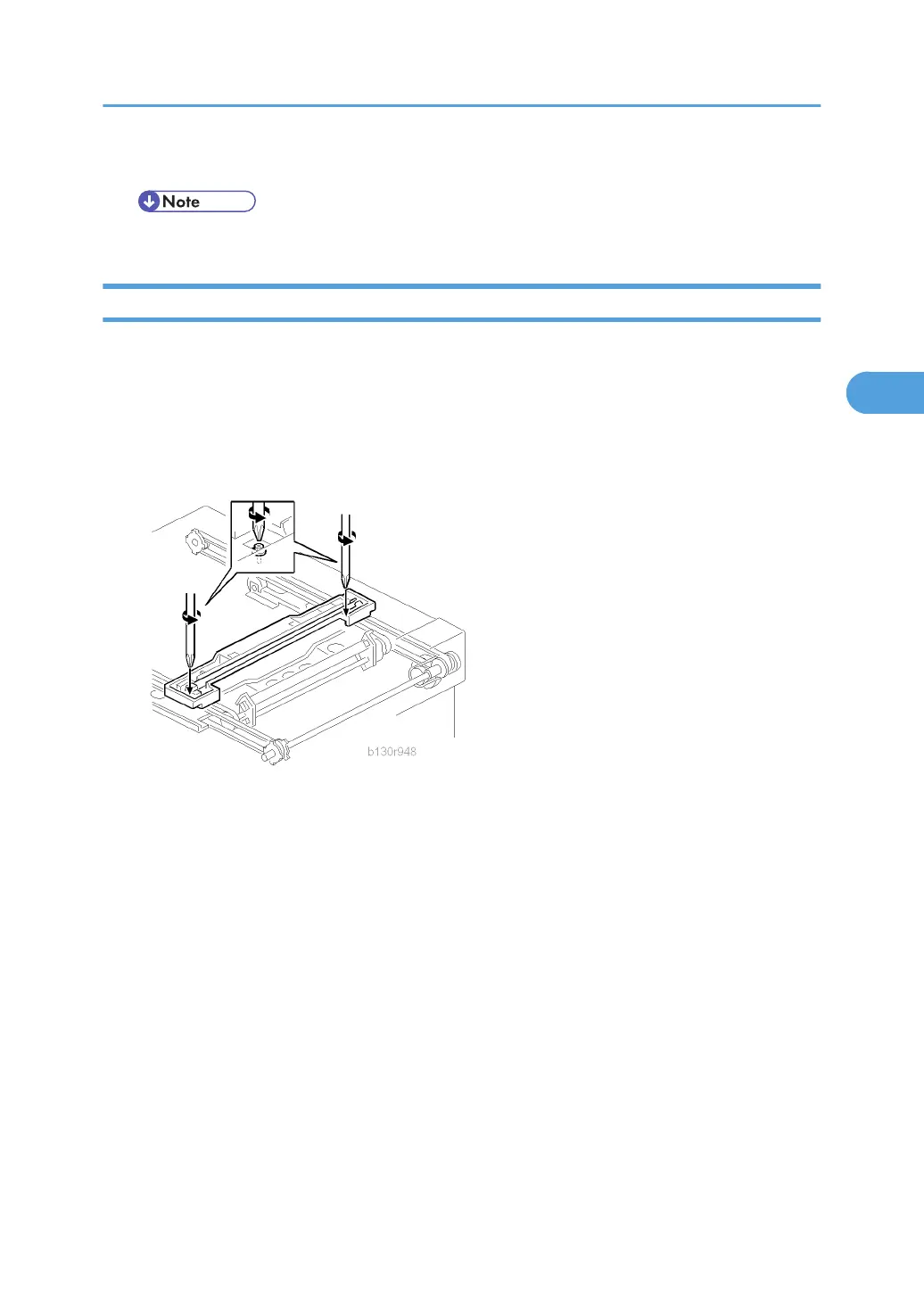

4. Loosen the 2 screws holding the 1st and 2nd scanner belts in place.
5. Slide the 1st and 2nd scanners so that all four of the following are roughly aligned on both the front
and back sides:
The hole on the copier's lid
The hole on the 1st scanner
The corner right hole on the 2nd scanner
The hole at the base of the scanner
Scanner Unit
55
