Ricoh S-C3 F - Bypass Feed Clutch and Friction Pad

Bypass Feed Clutch and Friction Pad
1. Rear cover (* "Rear Cover")
2. Right door (* "Right Door")

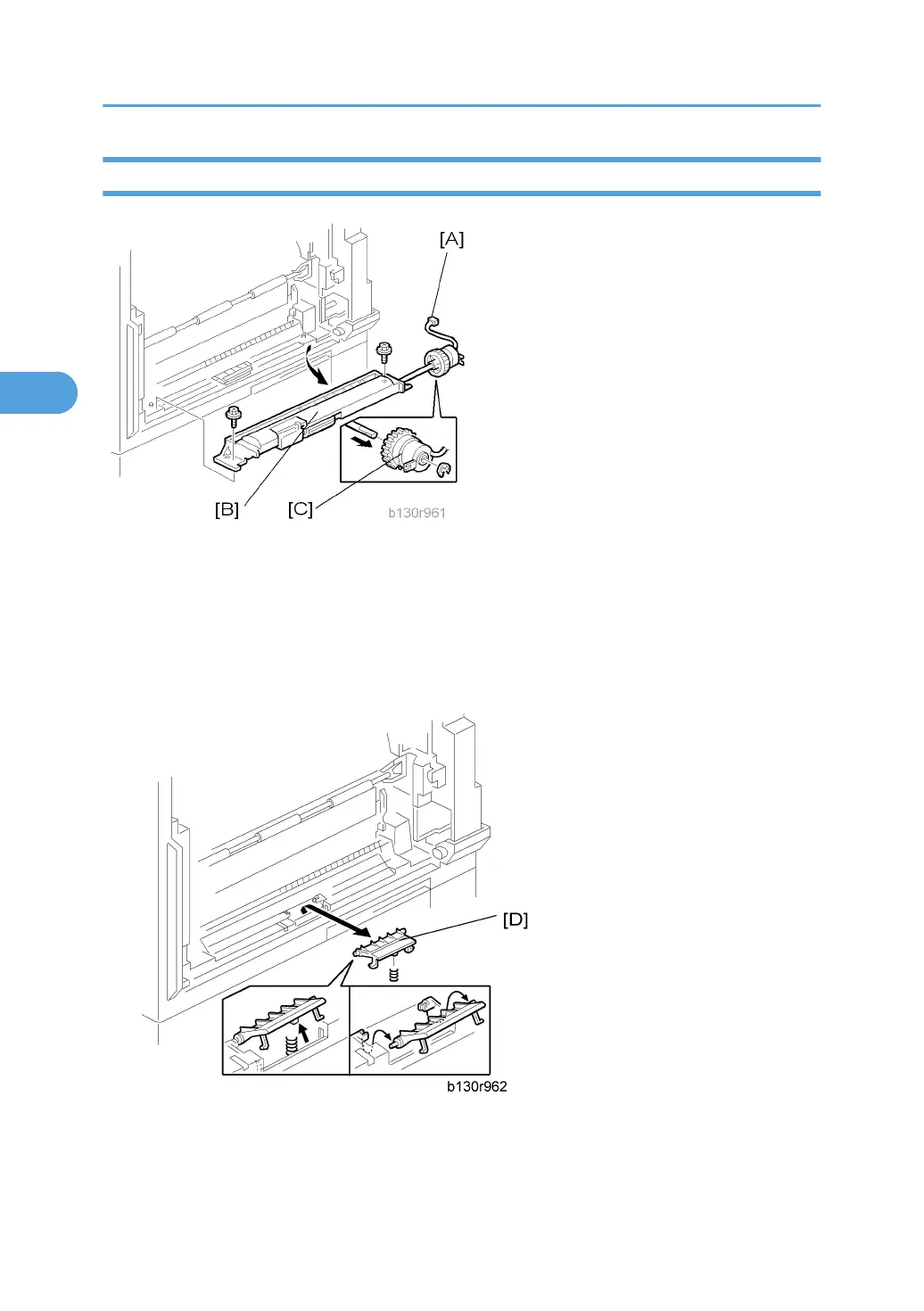

3. Disconnect the bypass feed clutch connector [A] (CN93).
4. Bypass feed roller housing [B] ( x 2)
5. Bypass feed clutch [C] ( x 1)
6. Bypass friction pad [D]
3. Replacement and Adjustment
