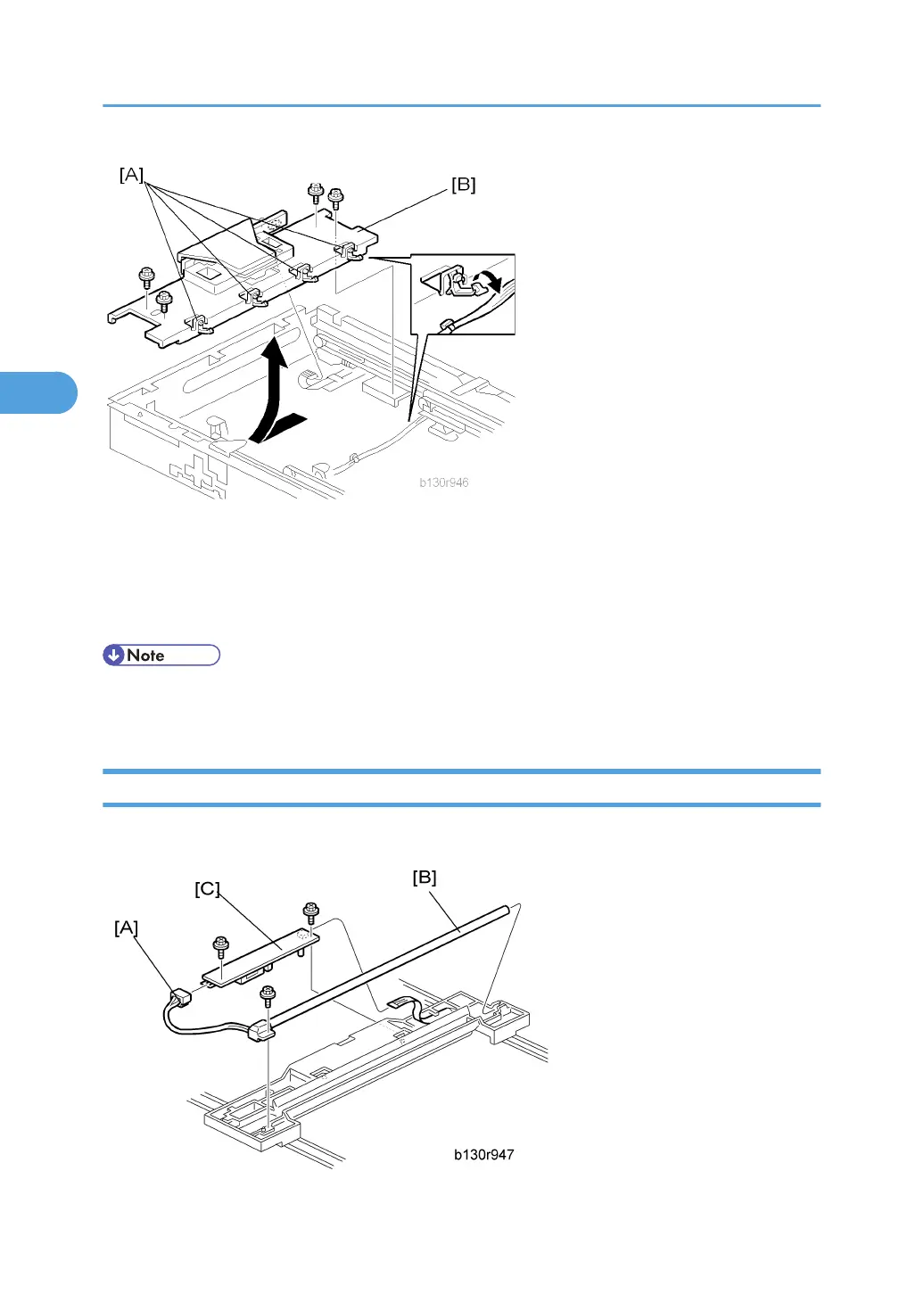

1. Exposure glass (* "Exposure Glass")
2. Front left cover, operation panel (* "Operation Panel and Upper Covers")
3. Release the cable from the four clamps [A].
4. Lens block [B] ( × 4, 1 flat cable)
Do not loosen the paint-locked screws holding the lens unit in place.
After installing a new lens block, carry out copy adjustments (* "Adjusting Copy Image Area").
Exposure Lamp, Lamp Stabilizer Board
Do not fold the exposure cable on the exposure lamp.
3. Replacement and Adjustment
52
