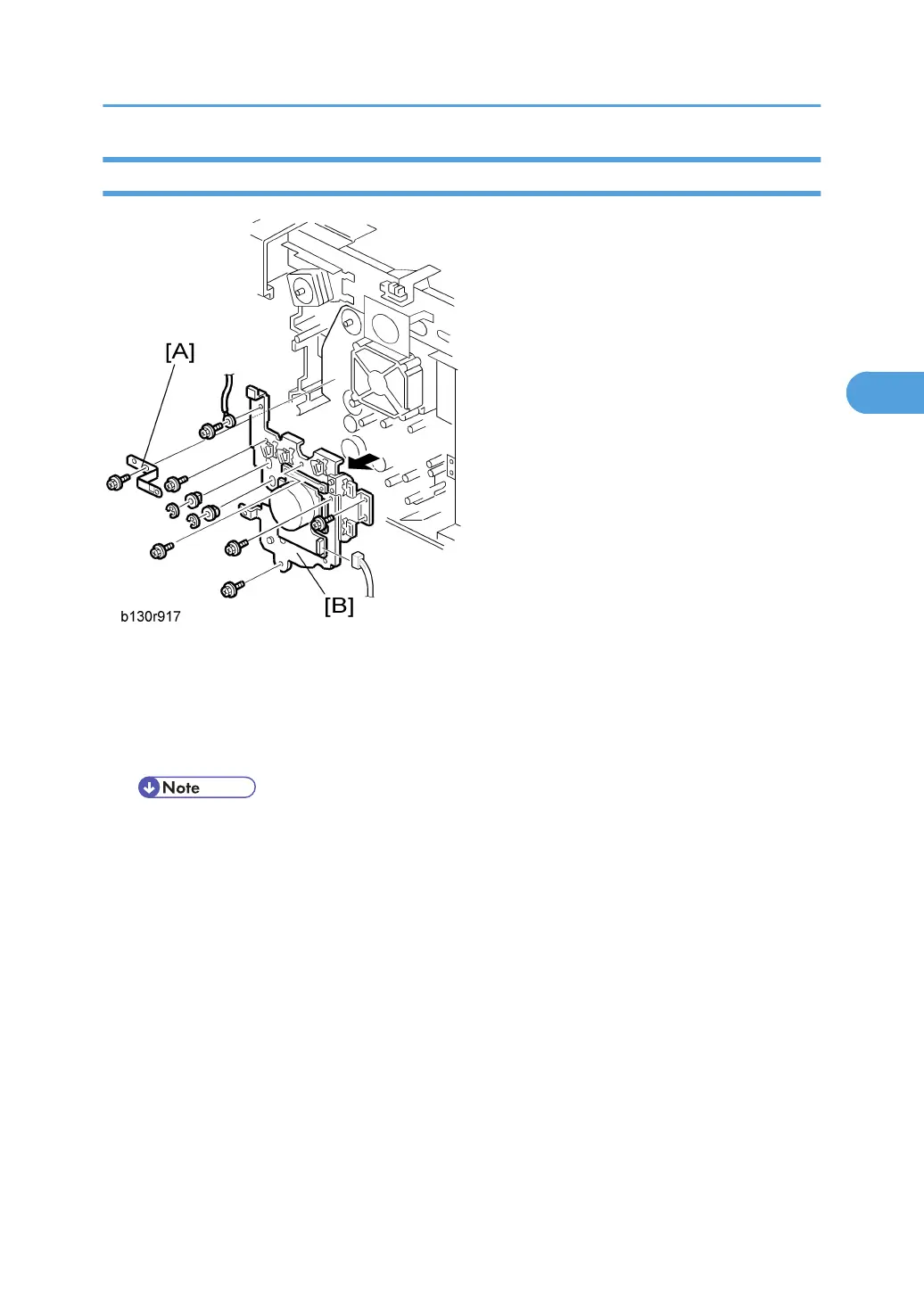

Paper Feed and Registration Clutches
1. Paper tray
2. High-voltage power supply board (* "High-Voltage Power Supply Board")
3. Ground plate [A] ( x 1)
4. Gear cover [B] ( x 1, x 7, x 2, 2 bushings)
Do not remove the main motor from the gear cover.
Paper Feed
73
3
