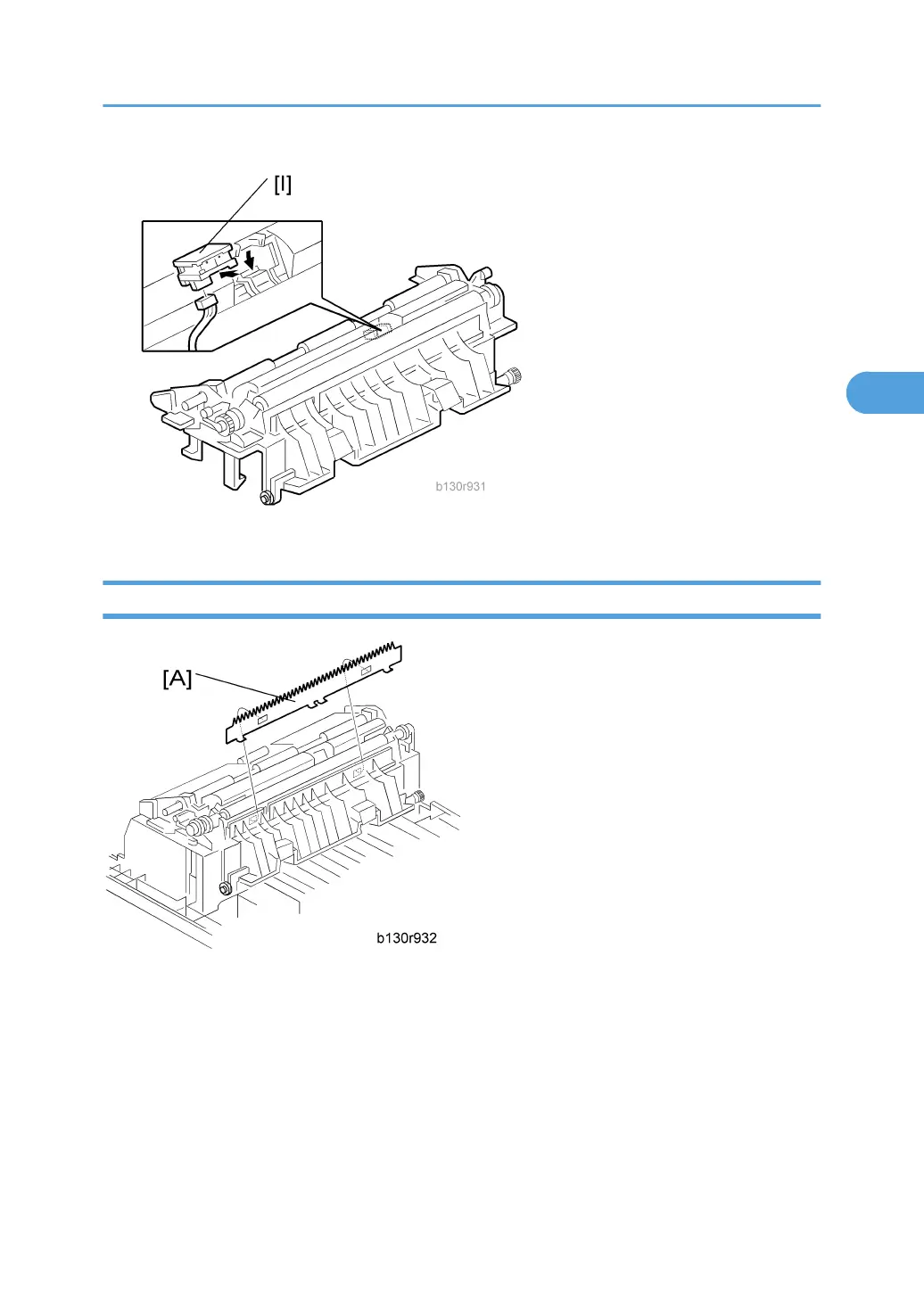

9. ID sensor [I] ( x 1)

Discharge plate

1. Right door (* "Right Door")

2. Discharge plate [A]

Image Transfer

77

3
