Duplex Printing Process

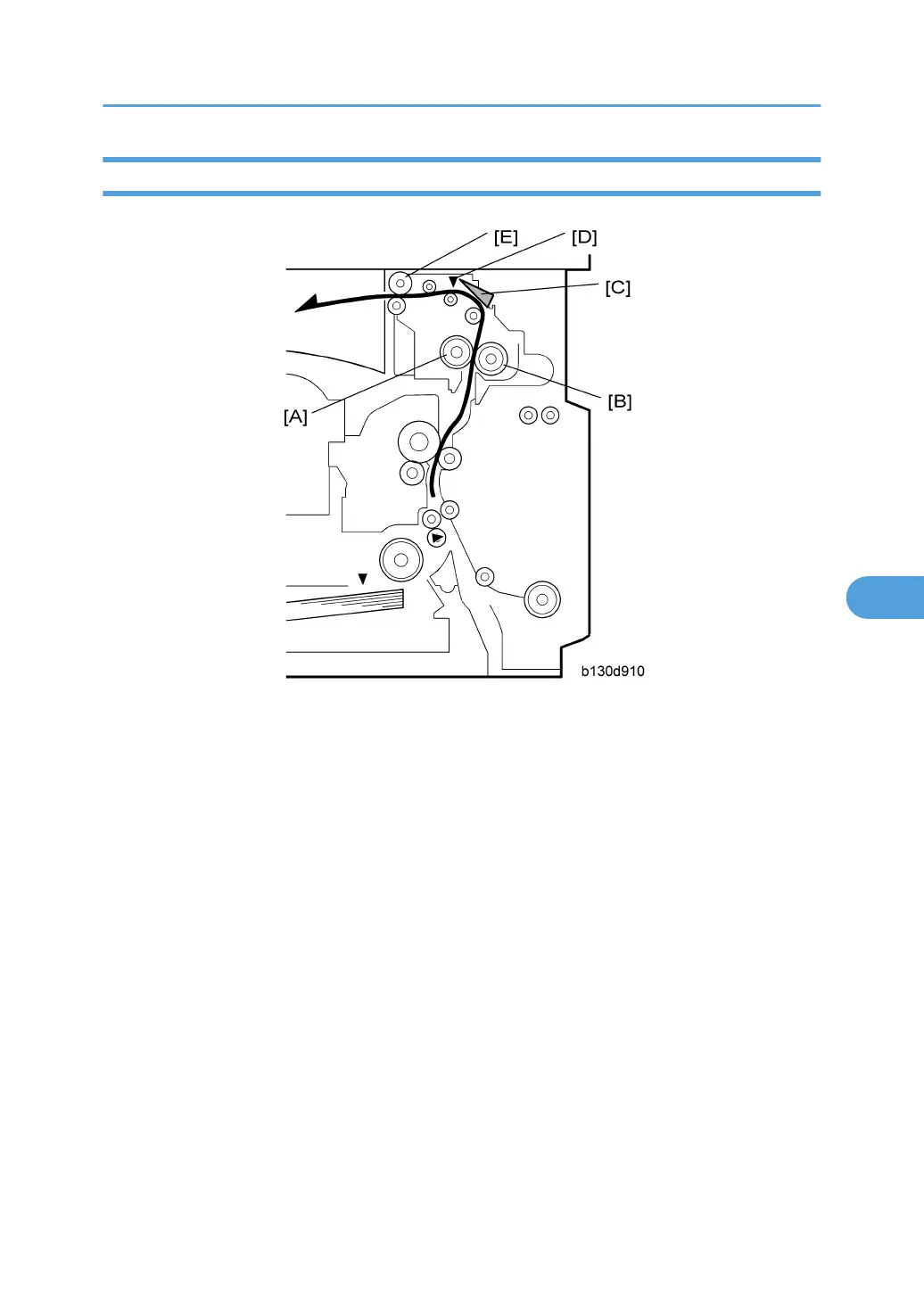

The main steps of the duplex printing process are as follows:
1. The controller starts to operate the main motor and duplex motor.
2. The hot roller [A] and pressure roller [B] transport the paper to the paper guide [C].
3. The leading edge of the paper pushes the paper guide; the paper guide turns the paper path sensor
[D] on.
4. When the leading edge of the paper reaches the exit roller [E], the exit roller transports the paper.
