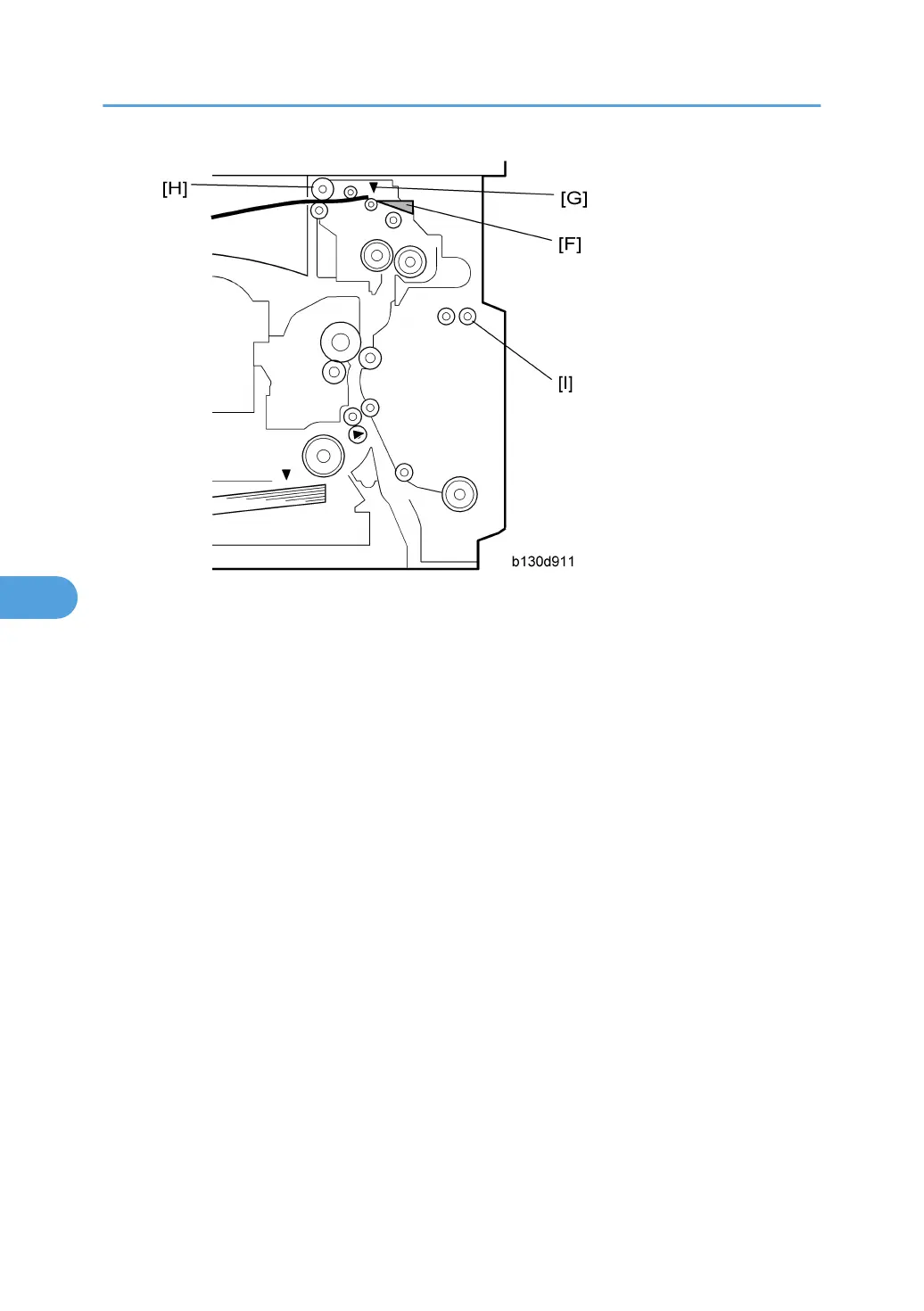

5. When the trailing edge of the paper exits from the paper guide, the paper guide drops to the original
position [F] and turns the paper path sensor [G] off.
6. The controller starts to operate the duplex motor in reverse; the exit roller [H] turns in reverse,
transporting the paper to the duplex roller.
7. The paper goes over the paper guide and reaches the duplex roller [I].
8. The duplex roller transports the paper into the duplex unit. The paper goes through the unit.
6. Detailed Section Descriptions
292
