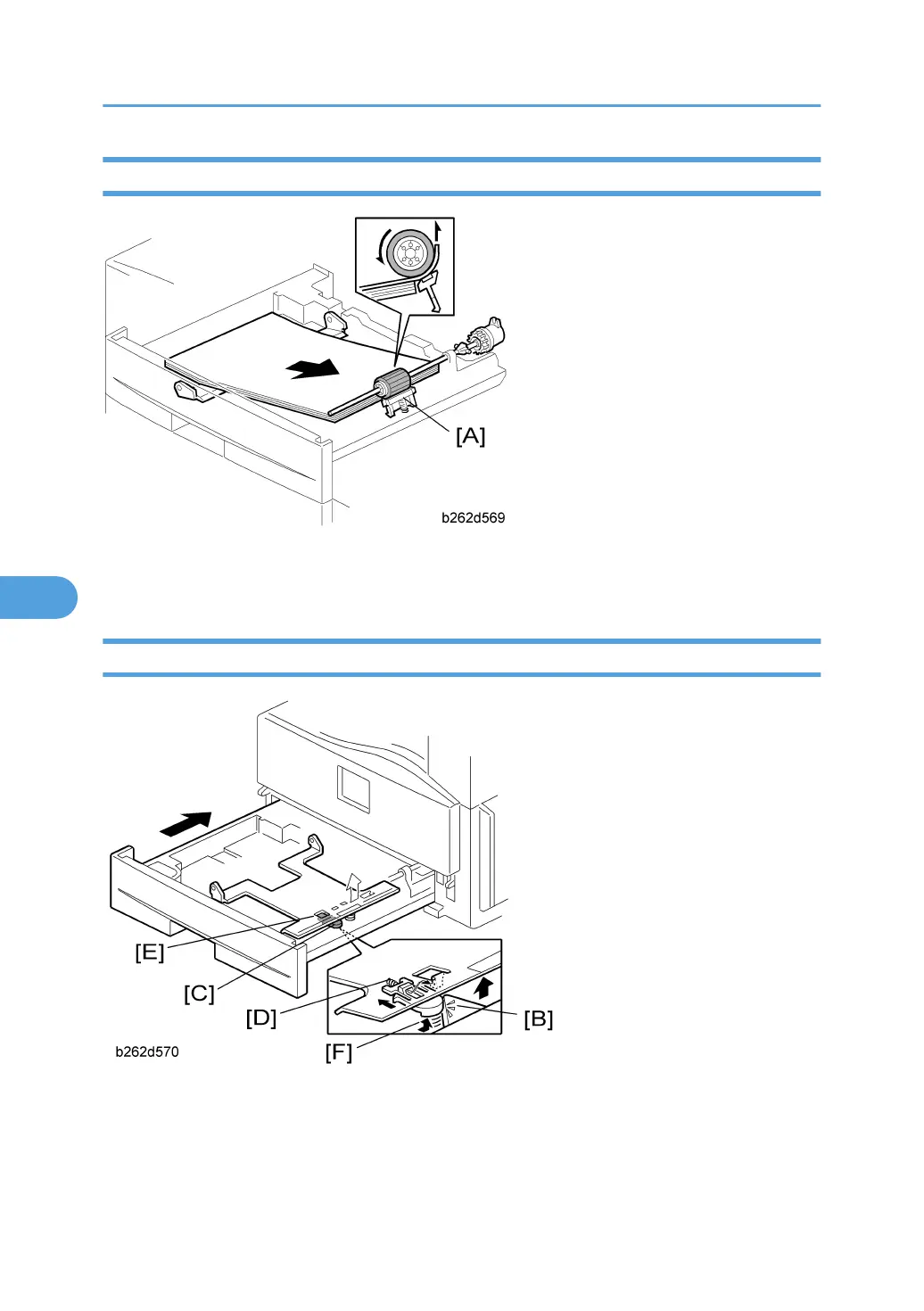

Paper Feed and Separation
The machine uses a friction-pad feed system.
Friction pad [A] (in paper tray)
Paper Lift Mechanism
When tray is pushed in: Projection [B] on frame pushes rounded slider [C] in against spring [D], retracting
the latch [E]. Spring [F] pushes the plate up.
6. Detailed Section Descriptions
278
6
