From 100-Sheet Bypass Tray

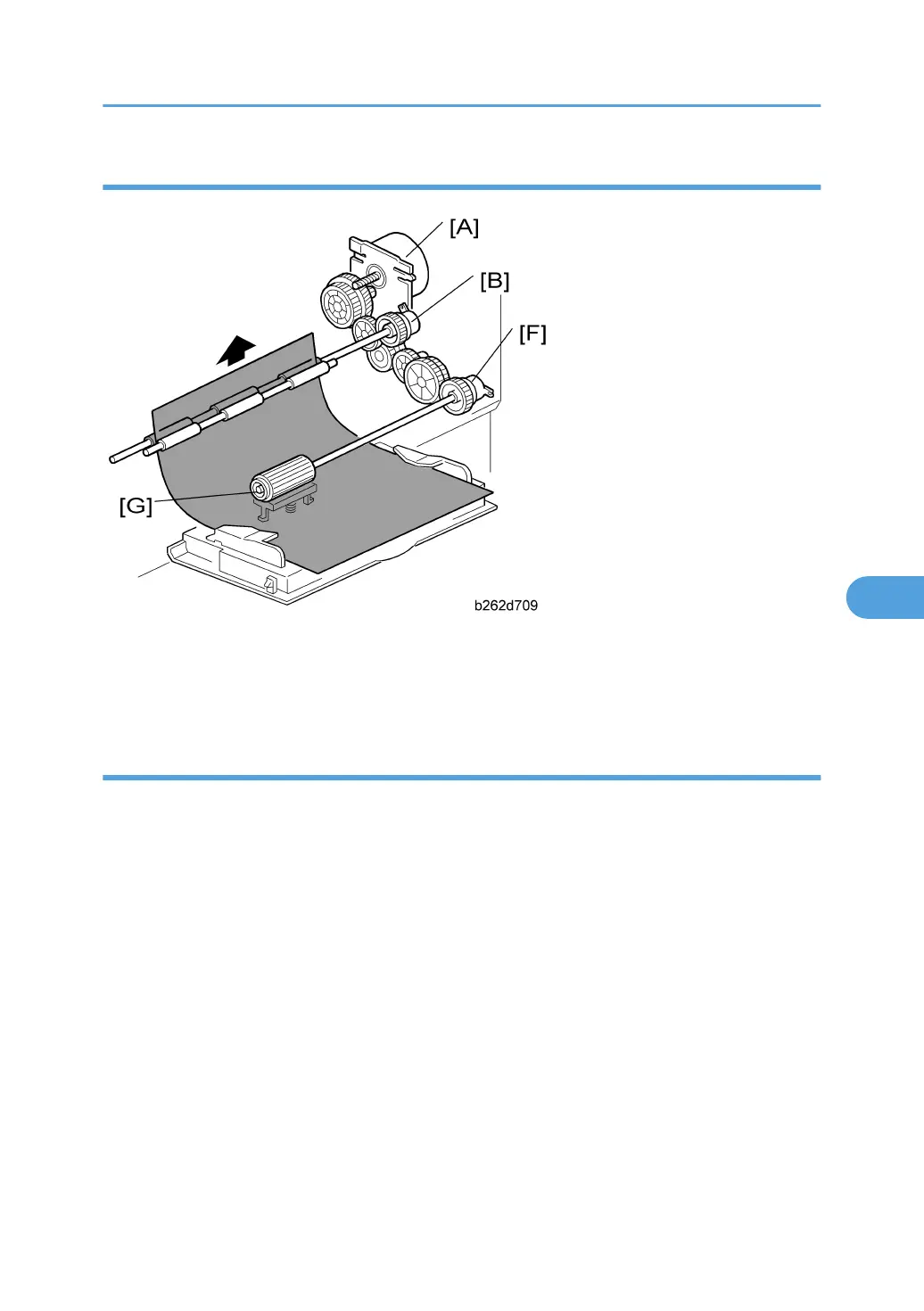

Main motor [A] drives gear on registration clutch [B] and bypass feed clutch [F]. The bypass feed clutch
drives the bypass feed roller [G]. Again, the BICU controls clutch timing based on input from the registration
sensor.
From 1-Sheet Bypass Tray
The user inserts the sheet directly up to the registration roller [D]. Main motor [A] drives the gear on
registration clutch [B], causing the registration roller to turn and feed the sheet.
