Ricoh S-C3 F - Scanner Unit; Exposure Glass; Lens Block

Scanner Unit
To clean the mirrors and lenses, use a blower brush or wet cotton.
Exposure Glass
To clean the exposure glass, use alcohol or glass cleaner.
1. Rear cover (* "Rear Cover")
2. Rear scale, upper right cover (* "Operation Panel and Upper Covers")

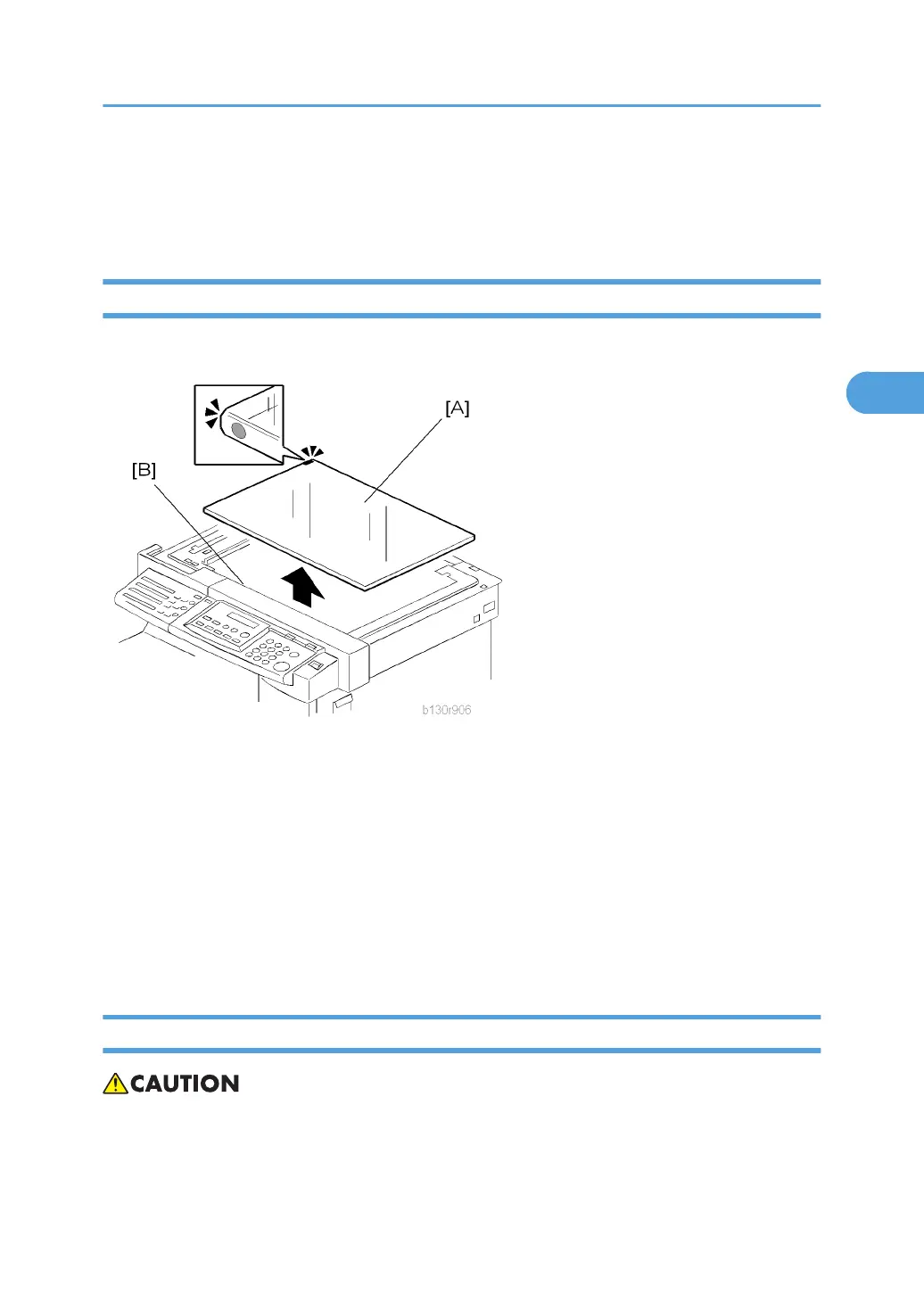

3. Exposure glass [A]
Reassembling
Make sure that the marking on the glass is at the rear left corner, and that the left edge of the glass is aligned
flush against the support ridge [B] on the frame.
Adjustment
When replacing the white plate, perform the "Scan Auto Adjustment" (*SP4-428-001).
Lens Block
• Do not disassemble the lens block. The lens block is precision adjusted before shipment.
• Do not touch the screws on the CCD. The CCD is precision adjusted before shipment.
Scanner Unit
