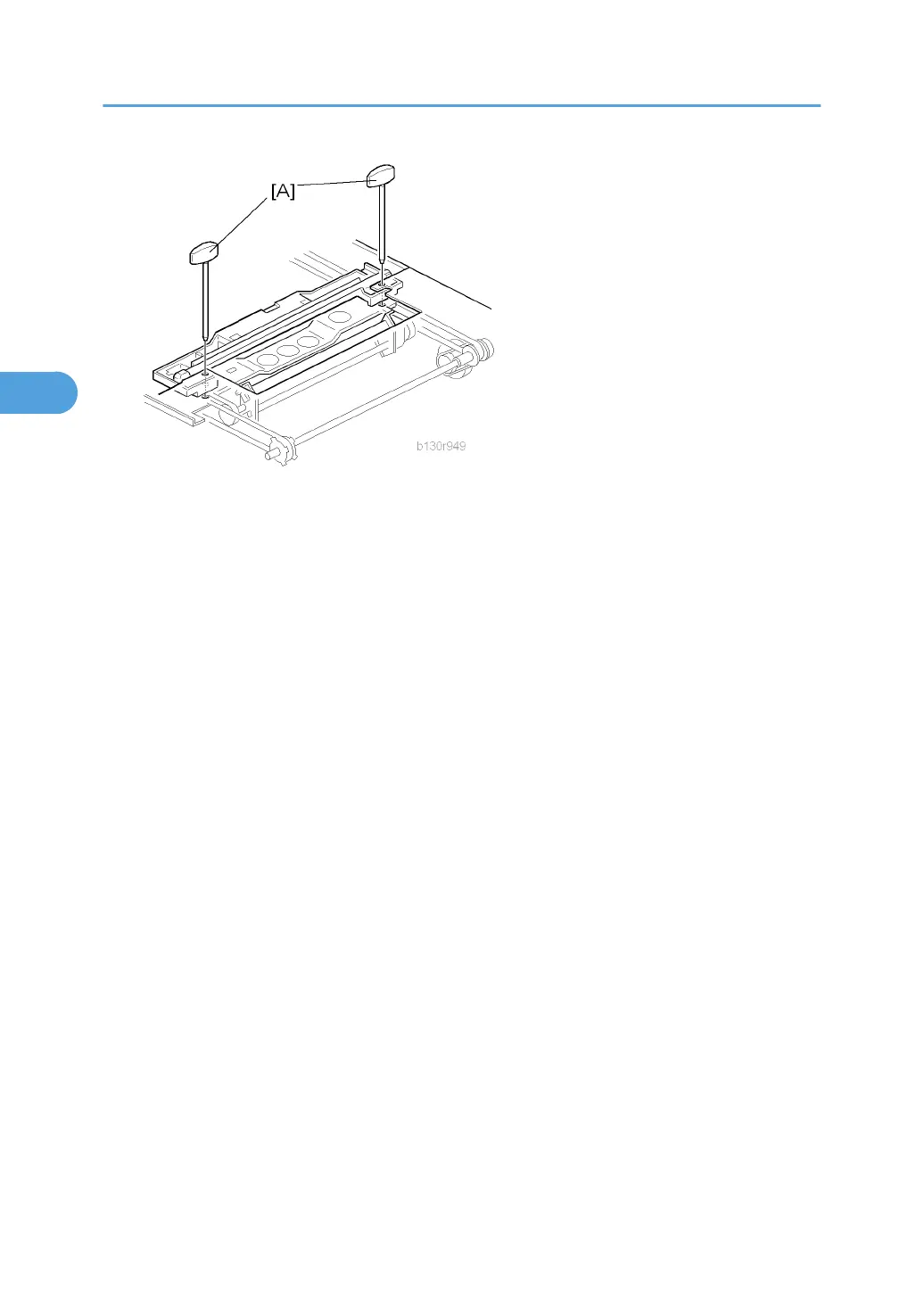

6. Insert the two optics adjustment tools [A], and adjust the scanners as necessary so that the tools go
through all four holes.
7. Tighten the two screws that you loosened at step 2 above, so that the belts are firmly clamped into
place.
8. Remove the adjustment tools.
