Ricoh S-C3 F - Page 239

8. Platen Cover Sensor
9. Exposure Glass
10. Exit Roller
11. Exit Sensor
12. Scanner Motor
13. Hot Roller
14. Pressure Roller
15. Cleaning Blade
16. OPC Drum
17. Discharge Plate
18. Transfer Roller
19. Development Roller
27. Mixing Augers
28. (Main) Friction Pad
29. Paper Feed Roller
30. Paper End Sensor
31. TD (Toner Density) Sensor
32. Bottom Plate
33. Polygon Mirror Motor
34. Laser Unit
35. Toner Supply Bottle (or THM)
36. Toner Collection Coil
37. Scanner HP Sensor

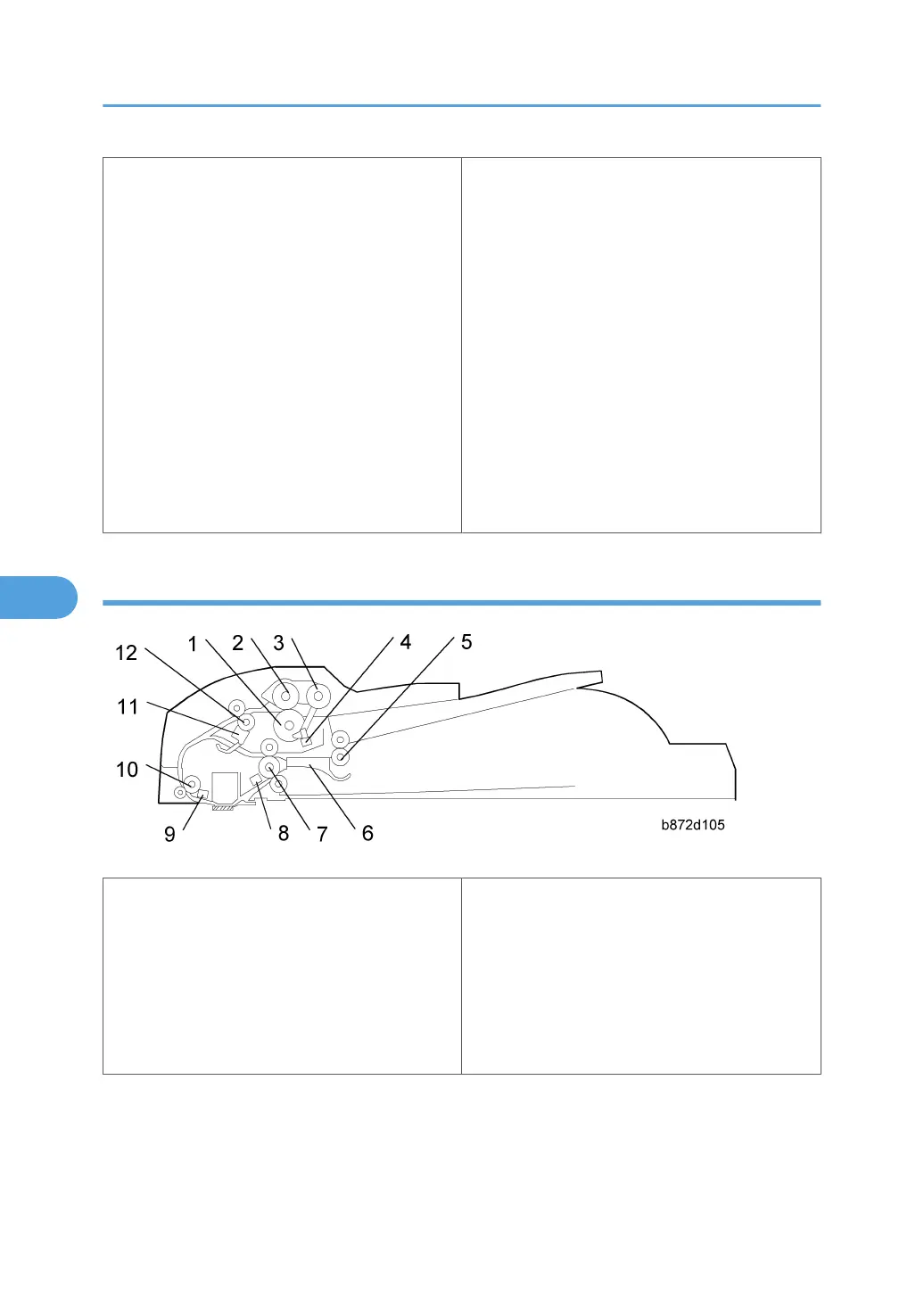

ARDF
1. Separation Roller
2. Paper Feed Roller
3. Pick-up Roller
4. Original Set Sensor
5. Inverter Roller
6. Junction Gate
7. Exit Roller
8. Exit Sensor
9. Registration Sensor
10. Registration Roller
11. Inverter Sensor
12. Transport Roller
