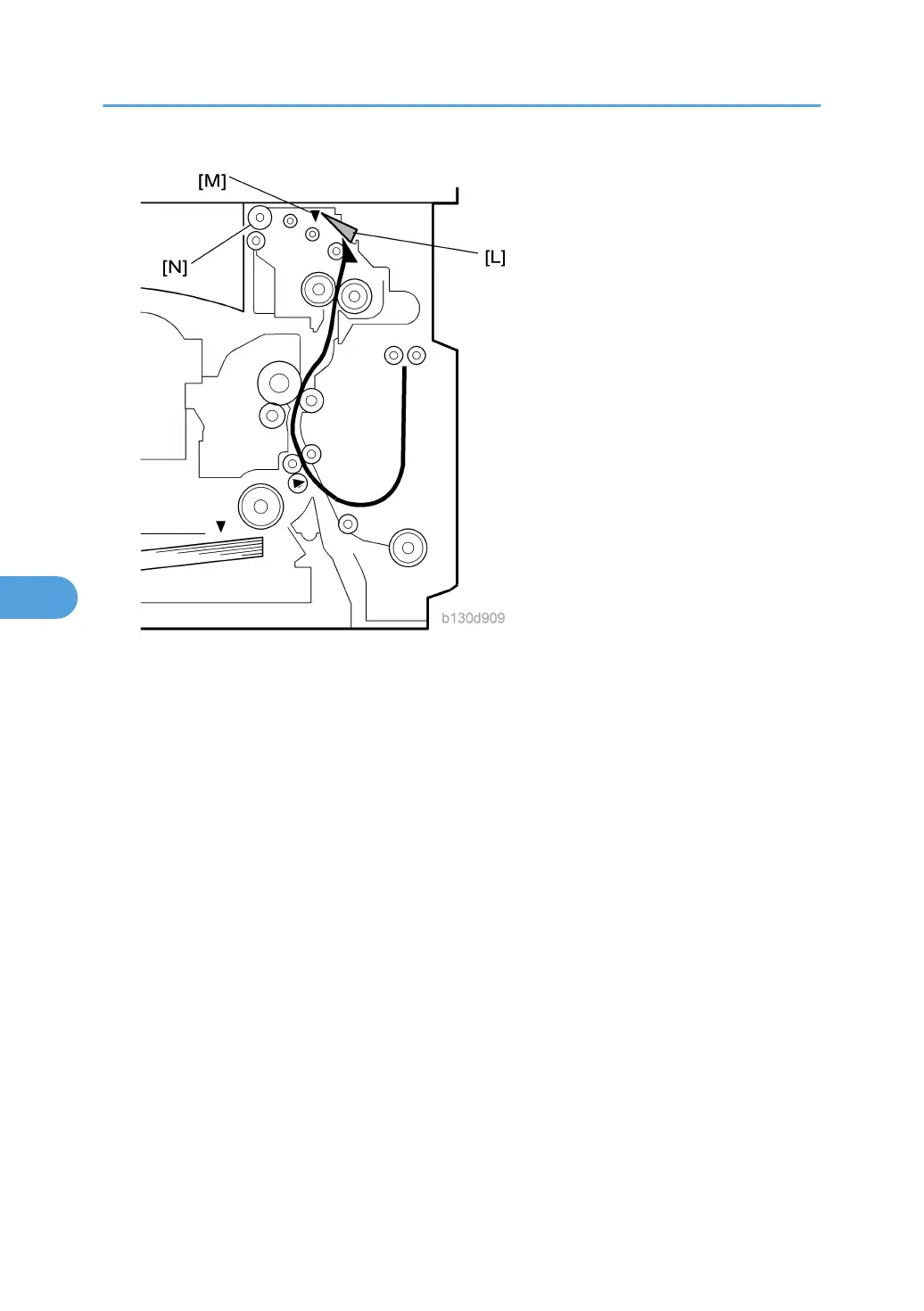

13. The leading edge of the paper pushes the paper guide [L]; the paper guide turns the paper path
sensor [M] on.
14. The controller changes the direction of the duplex motor. The exit roller [N] changes the direction of
its rotation, transporting the paper to the copy tray.
