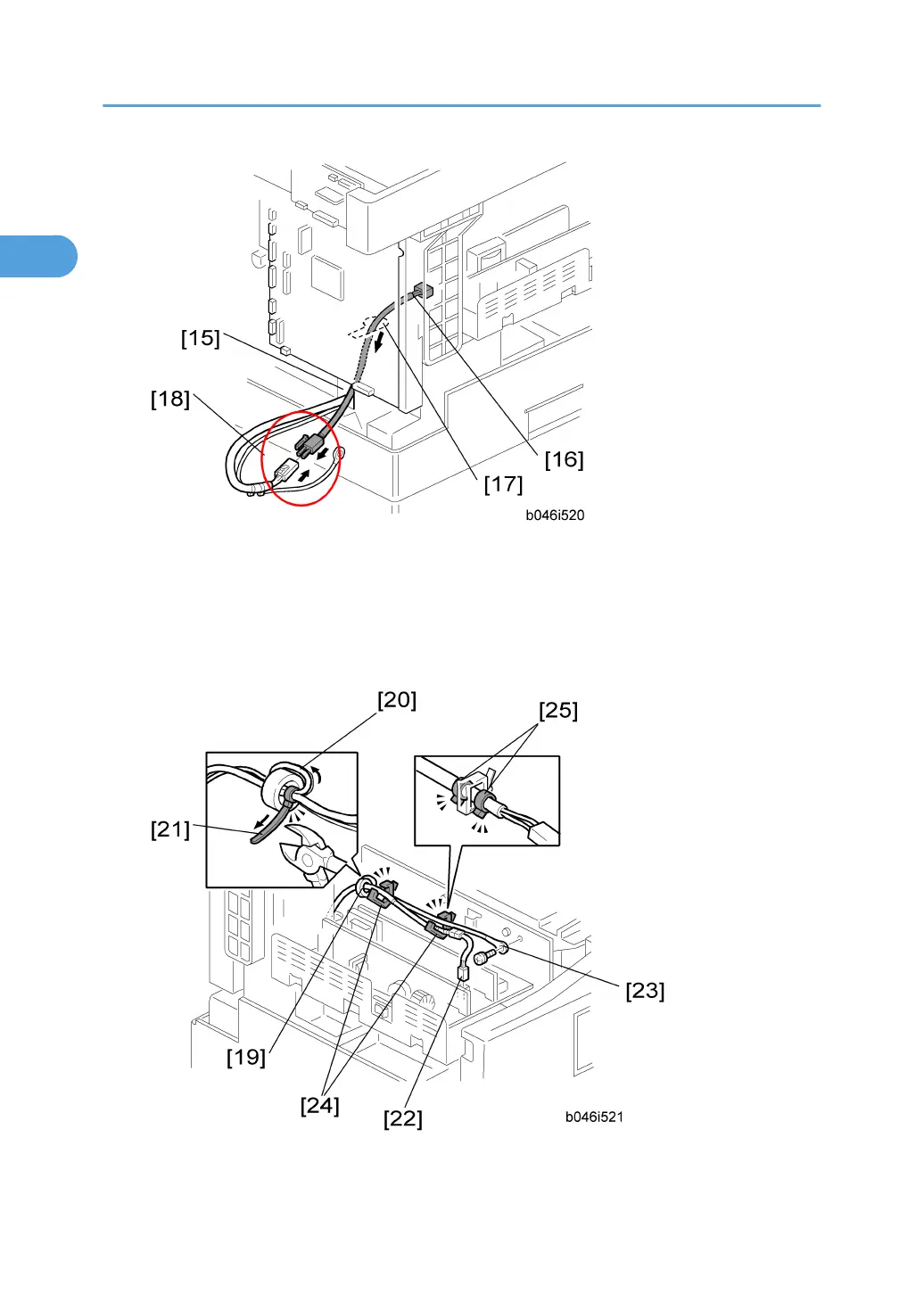

14. Pass the heater harness through the hole [15] at the rear of the copier.
15. Pass relay harness [16] through the opening [17] (at the rear of the PSU) and through the other
opening [15].
16. Connect the relay harness to the heater's harness [18].
17. Pull the relay harness back into the copier.
18. Attach the ferrite core [19] over the relay harness.
