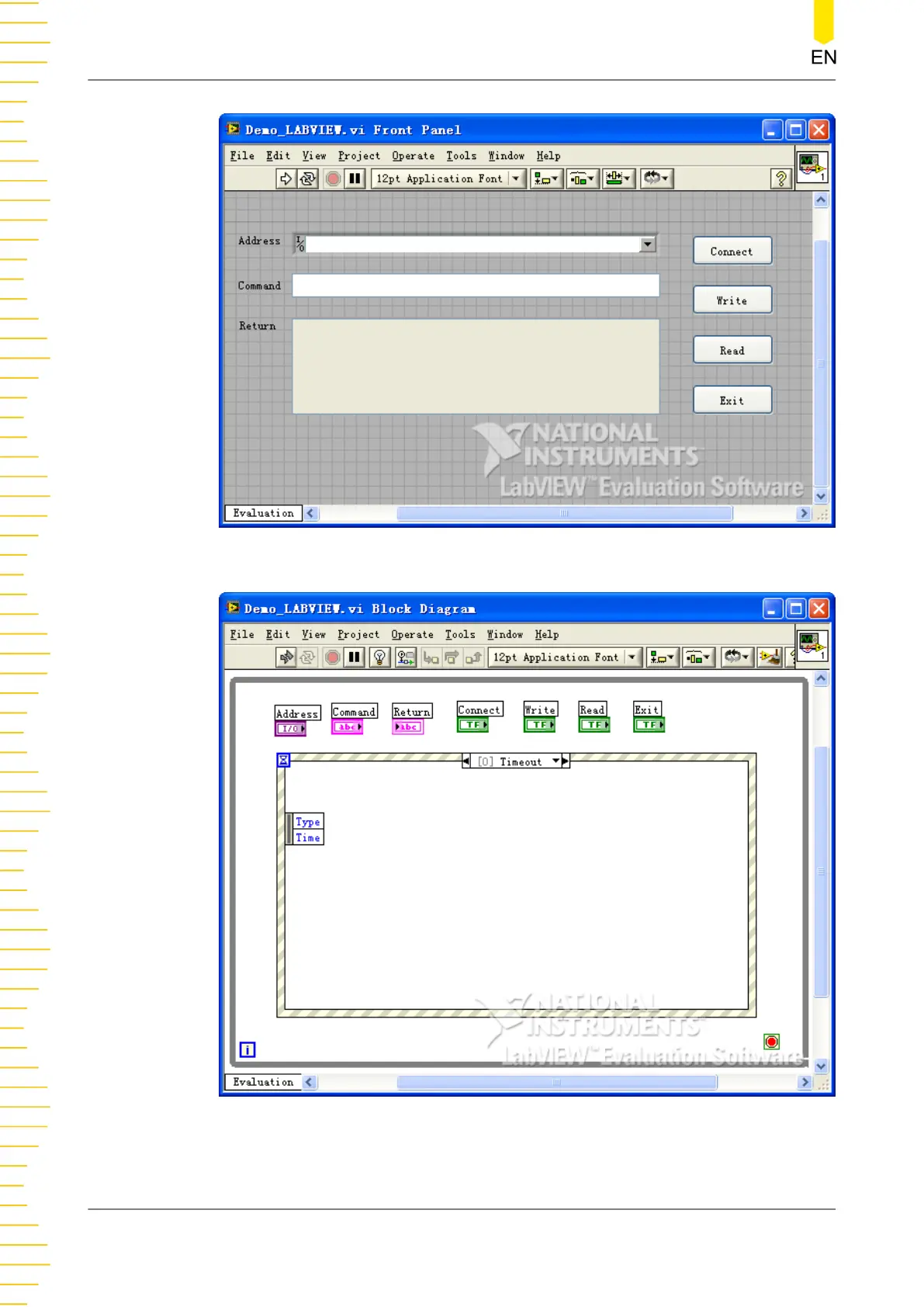

3. Click Show Block Diagram in the Window menu to create event structure.

4. Add events, including connecting instrument, write operation, read operation, and

exit.

Programming Examples

126
