Chapter 3 Programming Demos RIGOL
DSA800E Programming Guide 3-17
LabVIEW 8.6 Programming Demo
Enter the Labview 8.6 programming environment and follow the steps below.
1. Create a new VI file and name it as DemoForDSA LV86.

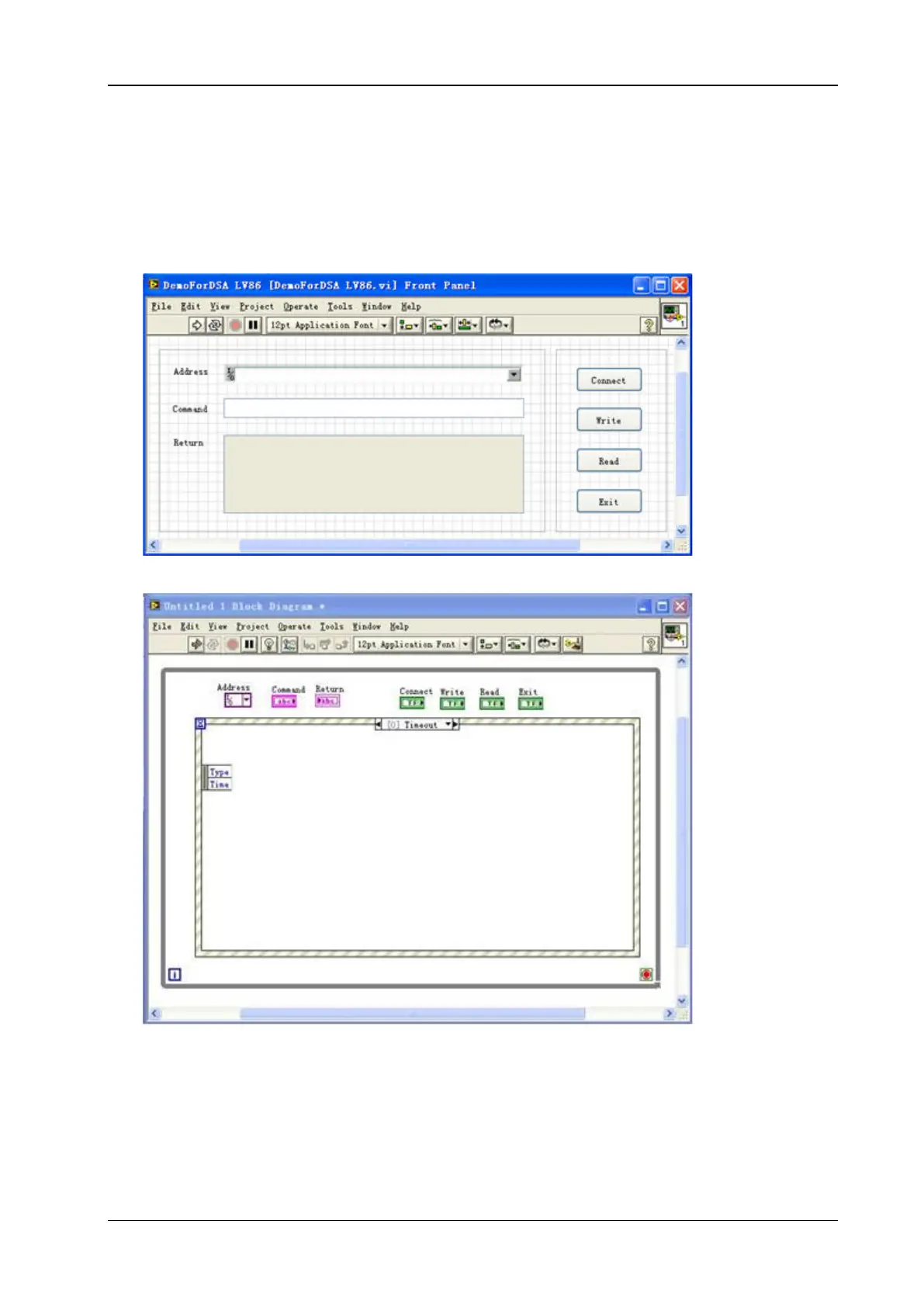

2. Add controls in the front panel interface, including the Address bar, Command bar and Return bar
as well as the Connect, Write, Read and Exit buttons.
3. Create the event structure in Show block Diagram under the Window menu.
4. Add the events (including connect to the instrument, write operation, read operation and exit).
1) Connect to the instrument
