166

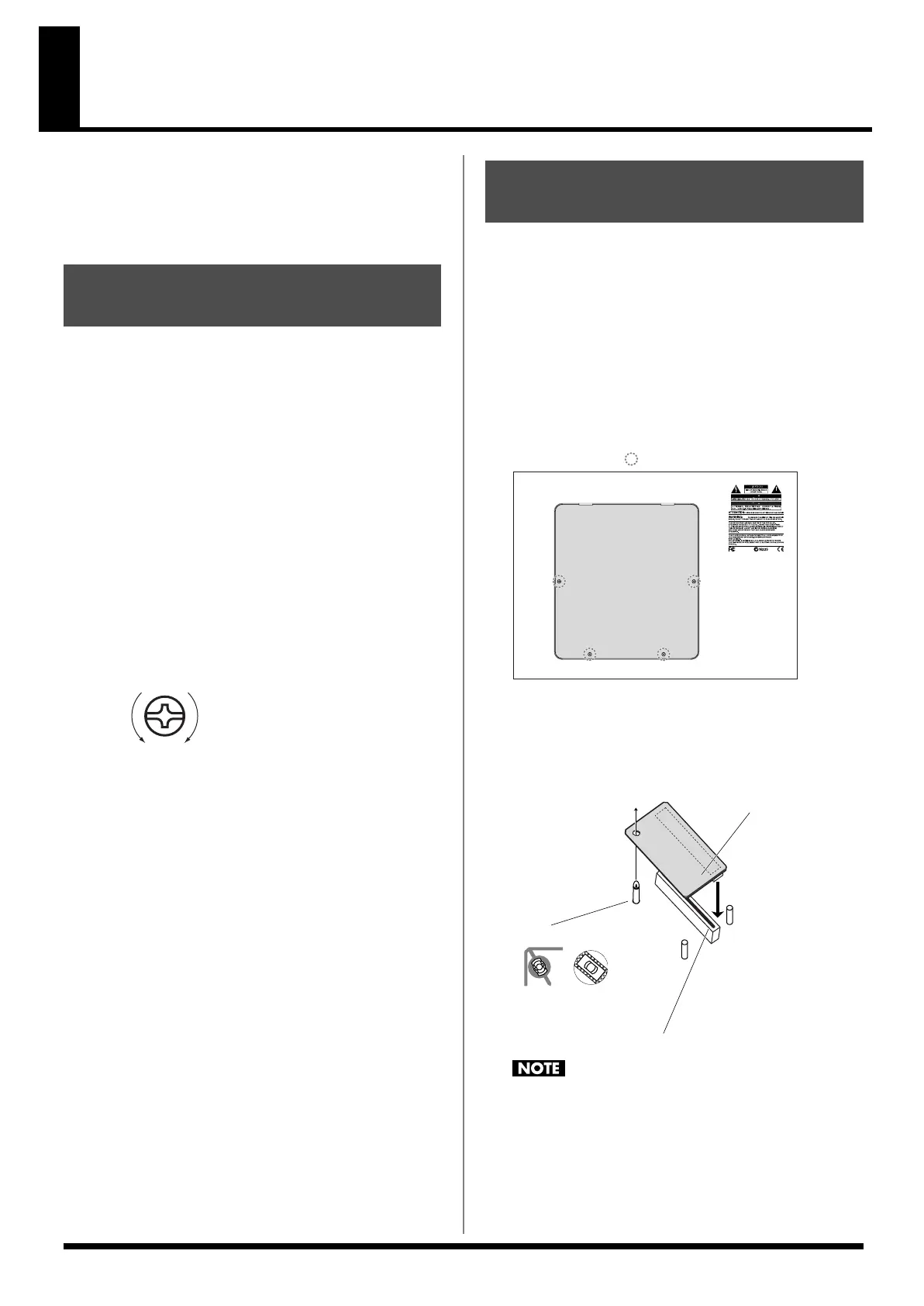

Installing the Wave Expansion Board
Up to six optional Wave Expansion Boards (SRX series) can be
installed in the Fantom-XR.
Wave Expansion Boards store Wave data, patches, and rhythm sets,
and by equipping the Fantom-XR with these boards, you can greatly
expand your sound palette.
901
• To avoid the risk of damage to internal components that can be
caused by static electricity, please carefully observe the
following whenever you handle the board.
1
• Before you touch the board, always first grasp a metal object
(such as a water pipe), so you are sure that any static
electricity you might have been carrying has been
discharged.
2
• When handling the board, grasp it only by its edges. Avoid
touching any of the electronic components or connectors.
5
• Save the bag in which the board was originally shipped, and
put the board back into it whenever you need to store or
transport it.
• Use a Philips screwdriver that is suitable for the size of the
screw (a number 2 screwdriver). If an unsuitable screwdriver is
used, the head of the screw may be stripped.
• To remove a screw, rotate the screwdriver counter-clockwise.
To tighten the screws, rotate the screwdriver clockwise.
fig.30-001.e
• When installing Wave Expansion Boards, remove only the
specified screws.
• Be careful that the screws you remove do not drop into the
interior of the Fantom-XR.
• Do not leave the bottom cover removed. After installation of the
Wave Expansion Boards is complete, be sure to replace the
cover.
• Be careful not to cut your hand on the opening for installing the
board.
• Do not touch any of the printed circuit pathways or connection
terminals.
911
• Do not touch any of the printed circuit pathways or connection
terminals.
912
• Never use excessive force when installing a circuit board. If it
doesn’t fit properly on the first attempt, remove the board and
try again.
913
• When circuit board installation is complete, double-check your
work.
914
• Always turn the unit off and unplug the power cord before
attempting installation of the circuit board (SRX series).
915
• Install only the specified circuit board(s) (SRX series). Remove
only the specified screws.
To install a wave expansion board, you’ll need to remove the top
panel cover. Boards can be installed in the EXP A–EXP F slots. These
slots correspond with the Wave Expansion Board groups (XP-A–XP-
F) when the expansion Wave, patches, and rhythm sets are used.
1.
Before installing the Wave Expansion Board, turn off the
power of the Fantom-XR and all connected devices, and
disconnect all cables, including the Power cable, from the
Fantom-XR.
2.
From the Fantom-XR, remove only the screws shown in the
following diagram, and detach the top panel cover.
fig.30-002.e
3.
There are six slots inside. As shown in the following
illustration, plug the connector of the Wave Expansion
Board into the connector of the relevant slot, and at the
same time insert the board holder through the hole of the
Wave Expansion Board.
fig.30-005.e
If you install expansion boards of the same type, only one board
will be detected.
Cautions When Installing an
Wave Expansion Board
tightenloosen
How to Install a Wave
Expansion Board
Board holder
Position them as shown
before you install the board.
Connector
Wave Expansion Board
(SRX series)
Fantom-XR_r_e.book 166 ページ ２００６年４月４日 火曜日 午前１０時１４分
