Various connection examples

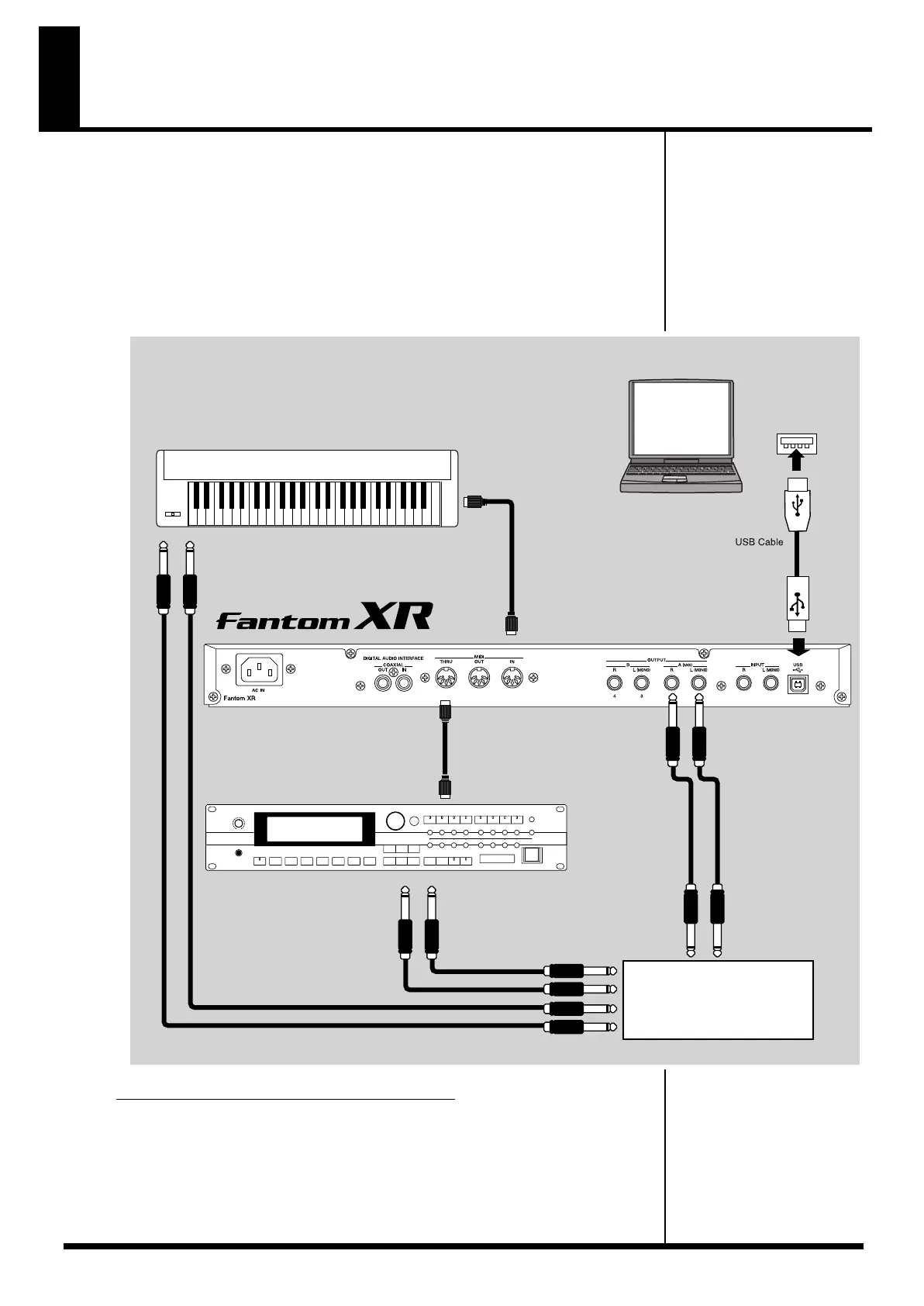

Connection example 1:
Using the Fantom-XR as a sound module for live
performance
Here’s an example of using the Fantom-XR in your live performance setup.
Use the MIDI connectors to connect the Fantom-XR to your keyboard and your other sound
modules, and use the USB connector for connections to the Fantom-X Editor or librarian. Since
you can edit sounds or manage data via the USB connector, you’ll be able to make last-minute
changes at the gig.
fig.03-012.e
Parameter settings on the Fantom-XR:
USB Mode: MIDI (if using USB MIDI)/STORAGE (if transferring files)
-> Set this to MIDI mode so you can use the USB connector for the Fantom-X Editor.
MIDI IN
MIDI IN
MIDI OUT
MIDI THRU
Edit sounds and
manage data.
Computer
Other sound module
MIDI keyboard/sequencer
To your computer’s
USB connector
To DI, mixer, or amp
