Roland Fantom XR User Manual

197

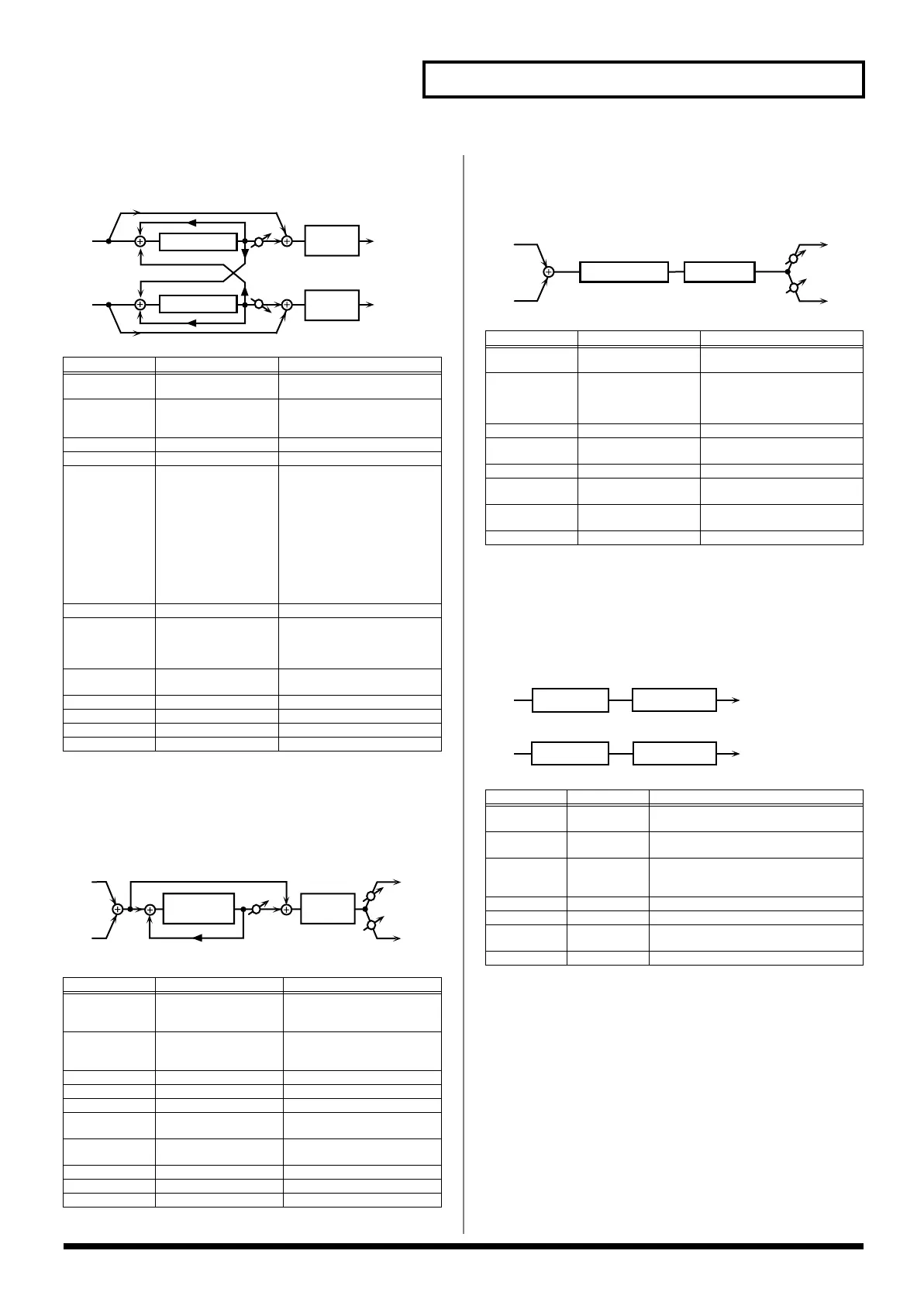

Effects List
12: STEP PHASER
The phaser effect will be varied gradually.
fig.MFX-12
13: MLT STAGE PHASER
(MULTI STAGE PHASER)
Extremely high settings of the phase difference produce a deep
phaser effect.
fig.MFX-13
14: INFINITE PHASER
A phaser that continues raising/lowering the frequency at which the
sound is modulated.
fig.MFX-14
15: RING MODULATOR
This is an effect that applies amplitude modulation (AM) to the input
signal, producing bell-like sounds. You can also change the
modulation frequency in response to changes in the volume of the
sound sent into the effect.
fig.MFX-15
Parameter
Value Description
Mode 4-STAGE, 8-STAGE, 12-
STAGE
Number of stages in the phaser
Manual # 0–127 Adjusts the basic frequency
from which the sound will be
modulated.
Rate # 0.05–10.00 Hz, note Frequency of modulation
Depth 0–127 Depth of modulation
Polarity INVERSE,
SYNCHRO
Selects whether the left and
right phase of the modulation
will be the same or the opposite.
INVERSE: The left and right
phase will be opposite. When
using a mono source, this
spreads the sound.
SYNCHRO: The left and
right phase will be the same.
Select this when inputting a
stereo source.
Resonance # 0–127 Amount of feedback
Cross
Feedback
-98– +98 % Adjusts the proportion of the
phaser sound that is fed back
into the effect. Negative (-) set-
tings will invert the phase.
Step Rate # 0.10–20.00 Hz, note Rate of the step-wise change in
the phaser effect
Mix # 0–127 Level of the phase-shifted sound
Low Gain -15– +15 dB Gain of the low range
High Gain -15– +15 dB Gain of the high range
Level 0–127 Output Level
Parameter
Value Description
Mode
4-STAGE, 8-STAGE,
12-STAGE, 16-STAGE,
20-STAGE, 24-STAGE
Number of phaser stages
Manual # 0–127 Adjusts the basic frequency
from which the sound will be
modulated.
Rate # 0.05–10.00 Hz, note Frequency of modulation
Depth 0–127 Depth of modulation
Resonance # 0–127 Amount of feedback
Mix # 0–127 Level of the phase-shifted
sound
Pan # L64–63R Stereo location of the output
sound
Low Gain -15– +15 dB Gain of the low range
High Gain -15– +15 dB Gain of the high range
Level 0–127 Output Level
R in
R out
L in
L out
Step Phaser
Mix
2-Band
EQ
Step Phaser
2-Band
EQ
Mix
Resonance
Mix
L in
R in
L out
R out
Pan R
Pan L
2-Band
EQ
Multi Stage
Phaser
Parameter
Range Explanation
Mode
1, 2, 3, 4 Higher values will produce a
deeper phaser effect.
Speed # -100– +100 Speed at which to raise or lower
the frequency at which the
sound is modulated
(+: upward / -: downward)
Resonance # 0–127 Amount of feedback
Mix # 0–127 Volume of the phase-shifted
sound
Pan # L64–63R Panning of the output sound
Low Gain -15– +15 dB Amount of boost/cut for the
low-frequency range
High Gain -15– +15 dB Amount of boost/cut for the
high-frequency range
Level 0–127 Output volume
Parameter
Value Description
Frequency #
0–127 Adjusts the frequency at which modula-
tion is applied.
Sens # 0–127 Adjusts the amount of frequency modula-
tion applied.
Polarity UP, DOWN Determines whether the frequency modu-
lation moves towards higher frequencies
( UP ) or lower frequencies ( DOWN ).
Low Gain -15– +15 dB Gain of the low frequency range
High Gain -15– +15 dB Gain of the high frequency range
Balance # D100:0W–
D0:100W
Volume balance between the direct sound
(D) and the effect sound (W)
Level 0–127 Output level
Infinite Phaser 2-Band EQ
L in
R in
L out
R out
Pan R
Pan L
L in
R in
L out
R out
Ring Mod
2-Band EQ
2-Band EQ
Ring Mod
Fantom-XR_r_e.book 197 ページ ２００６年４月４日 火曜日 午前１０時１４分
