Roland Fantom XR - Step Ring Modulator

198

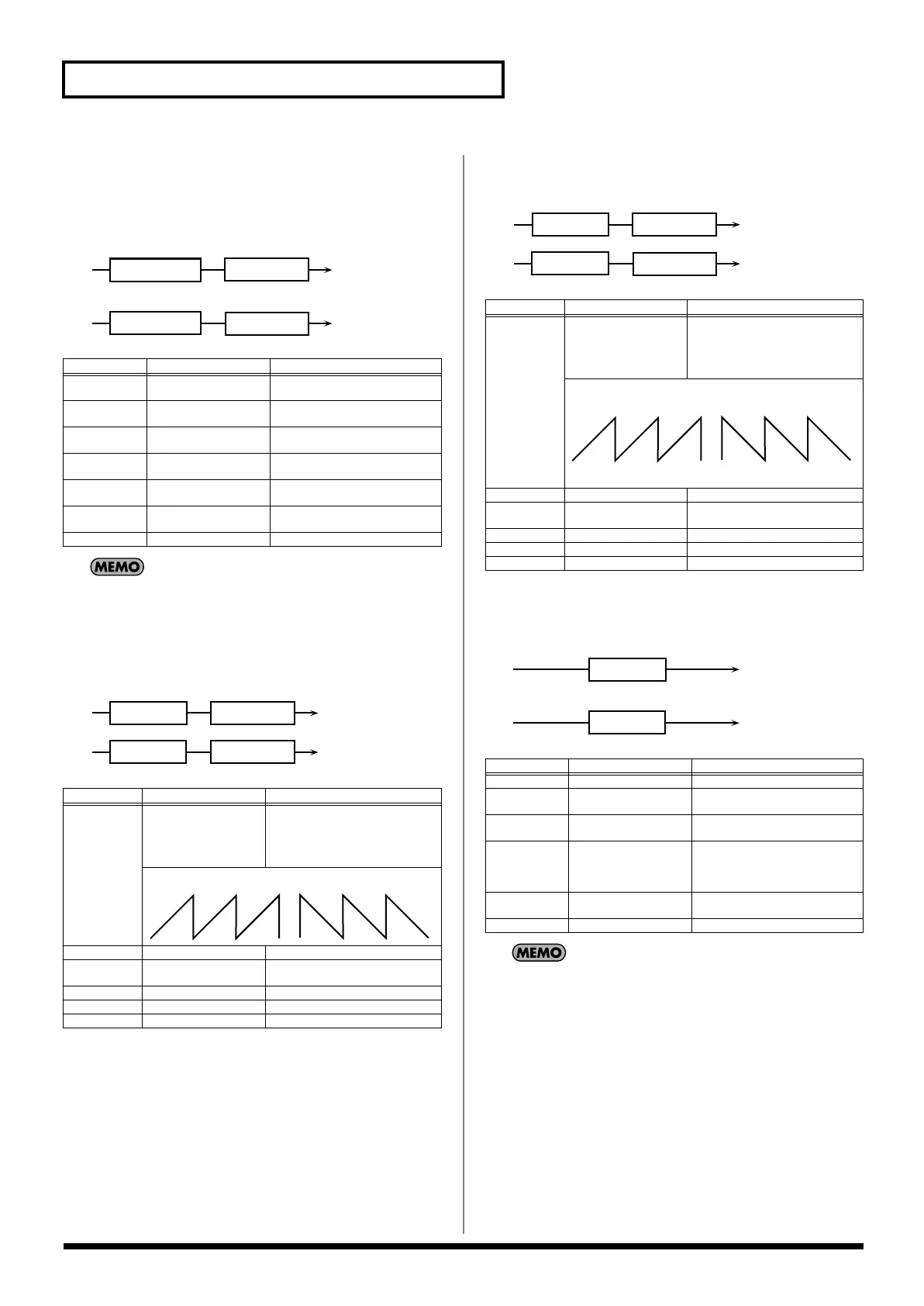

Effects List
16: STEP RING MOD
(STEP RING MODULATOR)
This is a ring modulator that uses a 16-step sequence to vary the
frequency at which modulation is applied.
fig.MFX-16
You can use multi-effect control to make the step sequence play
again from the beginning (p. 215).
17: TREMOLO
Cyclically modulates the volume to add tremolo effect to the sound.
fig.MFX-17a
18: AUTO PAN
Cyclically modulates the stereo location of the sound.
fig.MFX-18a
19: STEP PAN
This uses a 16-step sequence to vary the panning of the sound.
fig.MFX-19
You can use multi-effect control to make the step sequence play
again from the beginning (p. 215).
Parameter
Range Explanation
Step 01–16 0–127 Frequency of ring modulation at
each step
Rate # 0.05–10.00 Hz, note Rate at which the 16-step se-
quence will cycle
Attack # 0–127 Speed at which the modulation
frequency changes between steps
Low Gain -15– +15 dB Amount of boost/cut for the low-
frequency range
High Gain -15– +15 dB Amount of boost/cut for the high-
frequency range
Balance # D100:0W–D0:100W Volume balance of the original
sound (D) and effect sound (W)
Level 0–127 Output volume
Parameter
Value Description
Mod Wave
TRI, SQR, SIN, SAW1,
SAW2
Modulation Wave
TRI: triangle wave
SQR: square wave
SIN: sine wave
SAW1/2: sawtooth wave
Rate # 0.05–10.00 Hz, note Frequency of the change
Depth # 0–127 Depth to which the effect is ap-
plied
Low Gain -15– +15 dB Gain of the low range
High Gain -15– +15 dB Gain of the high range
Level 0–127 Output Level
L in
R in
L out
R out
Step Ring Mod
2-Band EQ
2-Band EQ
Step Ring Mod
L in
R in
L out
R out
Tremolo
2-Band EQ
2-Band EQ
Tremolo
SAW1 SAW2
Parameter
Value Description
Mod Wave
TRI, SQR, SIN, SAW1,
SAW2
Modulation Wave
TRI: triangle wave
SQR: square wave
SIN: sine wave
SAW1/2: sawtooth wave
Rate # 0.05–10.00 Hz, note Frequency of the change
Depth # 0–127 Depth to which the effect is ap-
plied
Low Gain -15– +15 dB Gain of the low range
High Gain -15– +15 dB Gain of the high range
Level 0–127 Output Level
Parameter Range Explanation
Step 01–16
L64–63R Pan at each step
Rate # 0.05–10.00 Hz, note Rate at which the 16-step se-
quence will cycle
Attack # 0–127 Speed at which the pan changes
between steps
Input Sync Sw OFF, ON Specifies whether an input note
will cause the sequence to resume
from the first step of the sequence
(ON) or not (OFF)
Input Sync
Threshold
0–127 Volume at which an input note
will be detected
Level 0–127 Output volume
L in
R in
L out
R out
Auto Pan
2-Band EQ
2-Band EQ
Auto Pan
SAW1 SAW2
L
R
L
R
L in
R in
L out
R out
Step Pan
Step Pan
