Overview of the Fantom-XR
LFO (Low Frequency Oscillator)
Use the LFO to create cyclic changes (modulation) in a sound. The
Fantom-XR has two LFOs. Either one or both can be applied to effect
the WG (pitch), TVF (filter) and/or TVA (volume). When an LFO is
applied to the WG pitch, a vibrato effect is produced. When an LFO is
applied to the TVF cutoff frequency, a wah effect is produced. When
an LFO is applied to the TVA volume, a tremolo effect is produced.
LFO is not included in the rhythm tones (percussion instrument sounds).

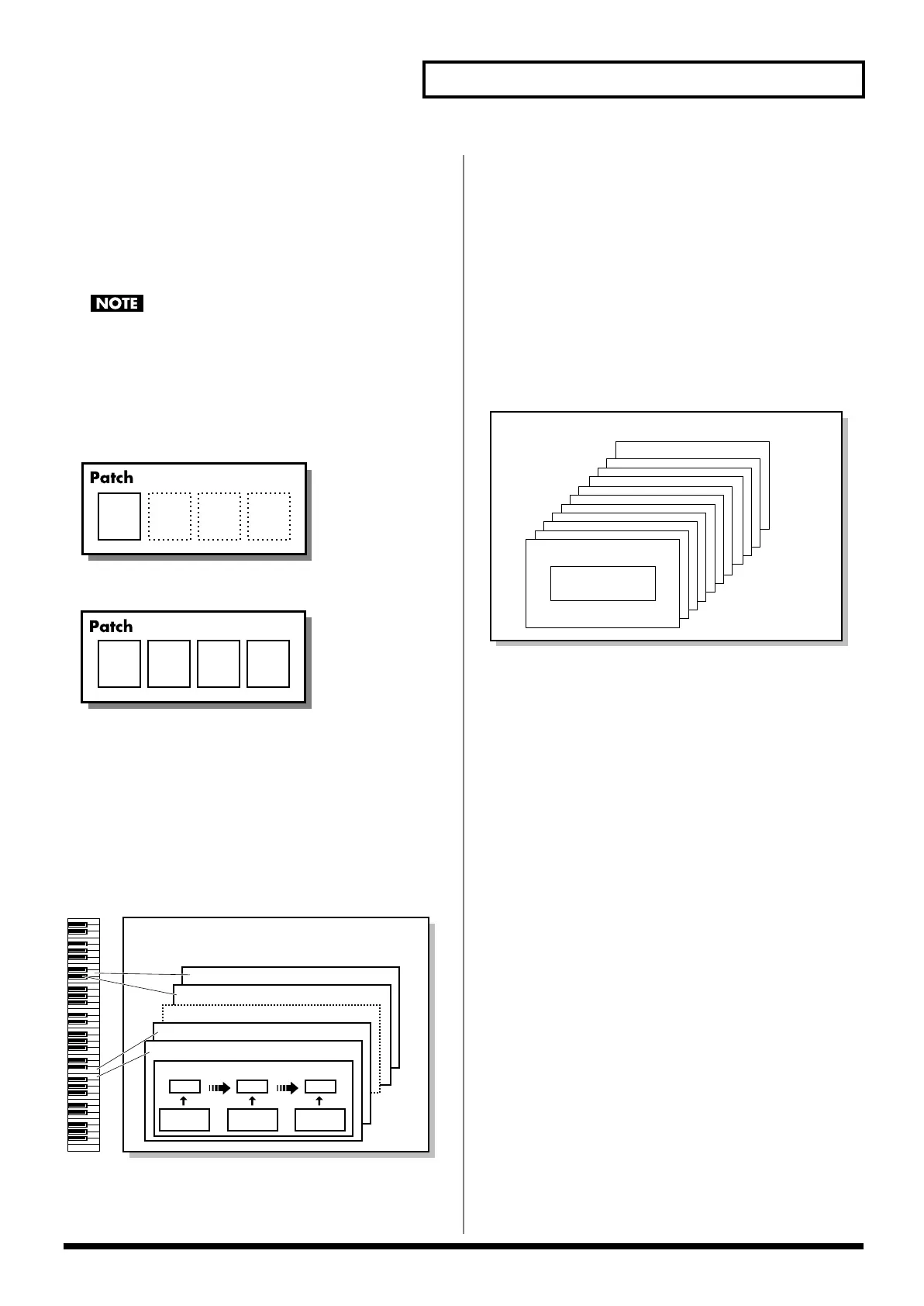

Patches
Patches are the basic sound configurations that you play during a
performance. Each patch can be configured by combining up to four
tones. How the four tones are combined is determined by the
Structure Type parameter (p. 51).
fig.04-003.e
Rhythm Sets
Rhythm sets are groups of a number of different percussion
instrument sounds. Since percussion instruments generally do not
play melodies, there is no need for a percussion instrument sound to
be able to play a scale on the keyboard. It is, however, more
important that as many percussion instruments as possible be
available to you at the same time. Therefore, each key (note number)
of a rhythm set will produce a different percussion instrument.
fig.04-004.e
Each percussion instrument consists of the following four elements.
(For details, refer to the explanations for “Tones.”)
WG (Wave Generator)
TVF (Time Variant Filter)
TVA (Time Variant Amplifier)
Envelope
Performances
A performance has a patch or rhythm set assigned to each of the 16
parts, and can simultaneously handle 16 sounds.
Because the Fantom sound generator can control multiple sounds
(instruments) it is called a Multi-timbral sound generator.
fig.04-005.e
Part
On the Fantom-XR, a “part” is something to which you assign a
patch or rhythm set. In Performance mode, each performance has
sixteen parts, and you can assign a patch or rhythm set to each part.
Example 1:A Patch consisting of only one Tone
(Tones 2–4 are turned off).
Example 2: A Patch consisting of four Tones.
Tone
1
Tone
2
Tone
1
Tone
4
Tone
3
Tone
4
Tone
2
Tone
3
Note Number 98 (D7)
Note Number 97 (C#7)
Note Number 36 (C2)
Note Number 35 (B1)
Rhythm Tone (Percussion instrument sound)
Rhythm Set
WG
Pitch
Envelope
TVF
TVF
Envelope
TVA
Envelope
TVA
Performance
Part 16
Part 1
Patch/
Rhythm Set
