100 Menu System Description ODIN Intercom Matrix
Status Field
The Status field displays the GPIO-16 port communication status.
Errors To/From Field
The Errors To/From field displays the number of errors to and from the GPIO-16 logged by the intercom.
BER To/From Field
The BER To/From field displays the number of errors to and from the GPIO-16 in the last 10 minutes.
LCP-102
Frame Field
The Frame field is used to select the frame to be viewed.
LCP-102 Column
The LCP-102 column displays the LCP-102 number.
Up to 15 LCP-102s can be connected to each frame.
Status Field
The Status field displays the LCP-102 port communication status.
Available port communication statuses are:
The GPIO-16 is connected.
The GPIO-16 was connected, but is no longer connected.
There is no connection.

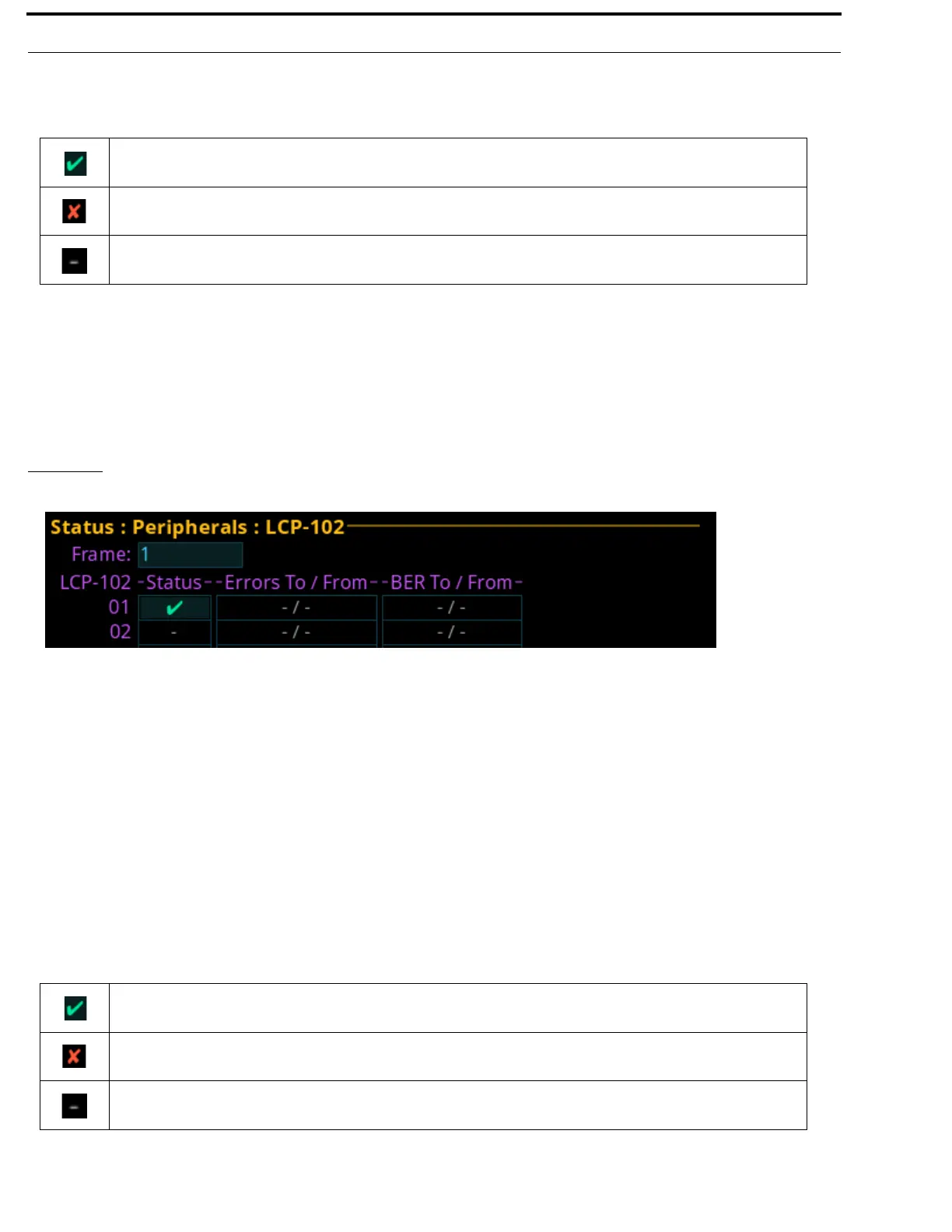

FIGURE 32. Status | Peripherals | LCP-102
The LCP-102 is connected.
The LCP-102 was connected, but is no longer connected.
There is no connection.
