ODIN Intercom Matrix Menu System Description 89
Management Port
The Management Port screen displays the network status information for the Management Port.
Frame Field
The Frame field is used to select the frame to be viewed.
Link Up Field
The Link Up field displays the status of the links on the port.
Any of the following indications may appear
:
Speed Field
The Speed field displays the transmission speed over the Management Port interface.
The speeds the Ethernet links support: 10 Mbps, 100 Mbps or 1 Gbps.
Duplex Field
The Duplex field displays the current transmit mode – Half or Full Duplex. Almost all Ethernet interfaces auto-negotiate to Full
Duplex. If the interface displays Half Duplex mode, this typically signifies the auto-negotiate failed, resulting in network collisions
and errors.
Available options for this field are
Half-Duplex – can either transmit or receive, but not both simultaneously.
Full-Duplex – can transmit and receive simultaneously.

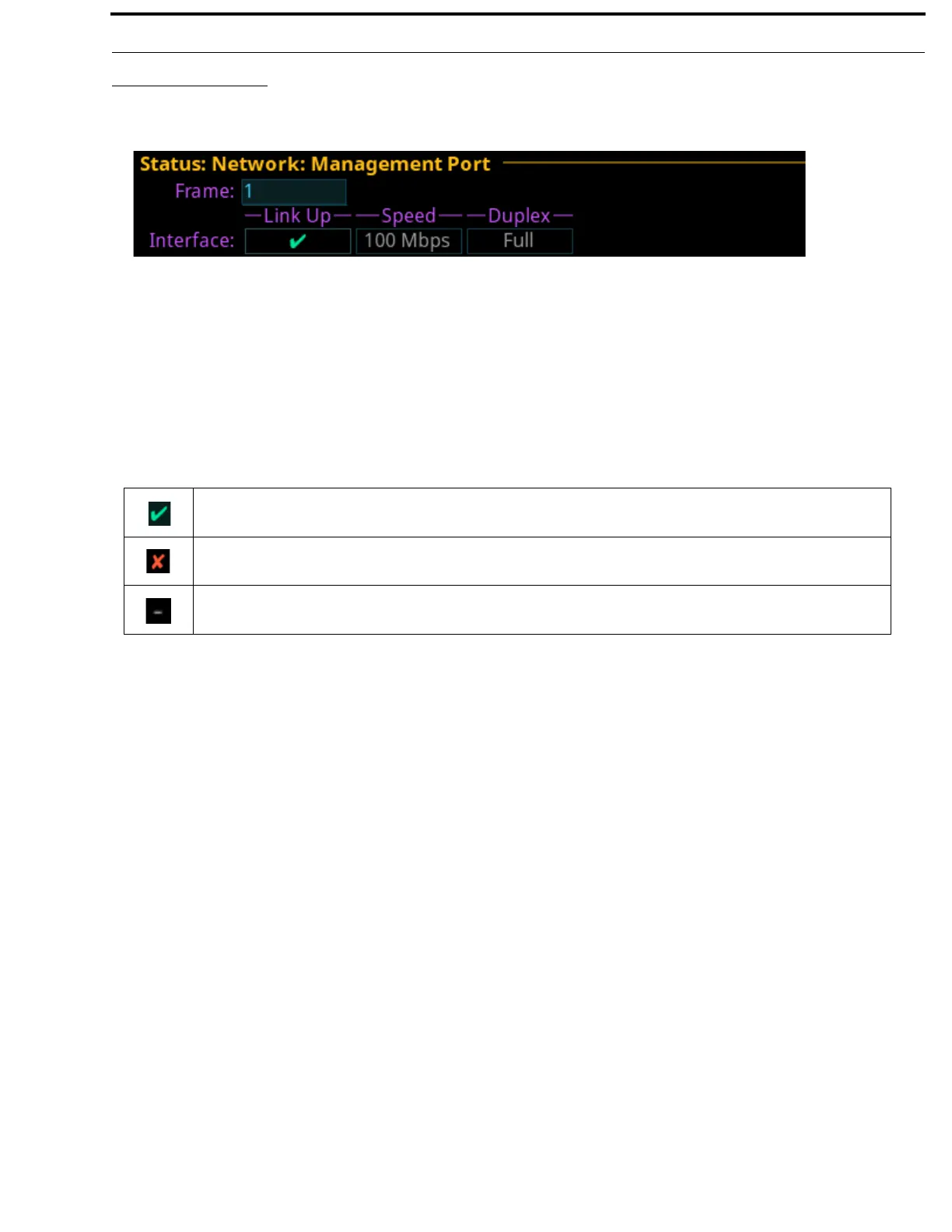

FIGURE 21. Status | Network | Management Port
The link is up.
The link is not up, but the IP address is defined.
No IP address is defined.
