ODIN Intercom Matrix Introduction 11
Reference View – ODIN Rear Panel

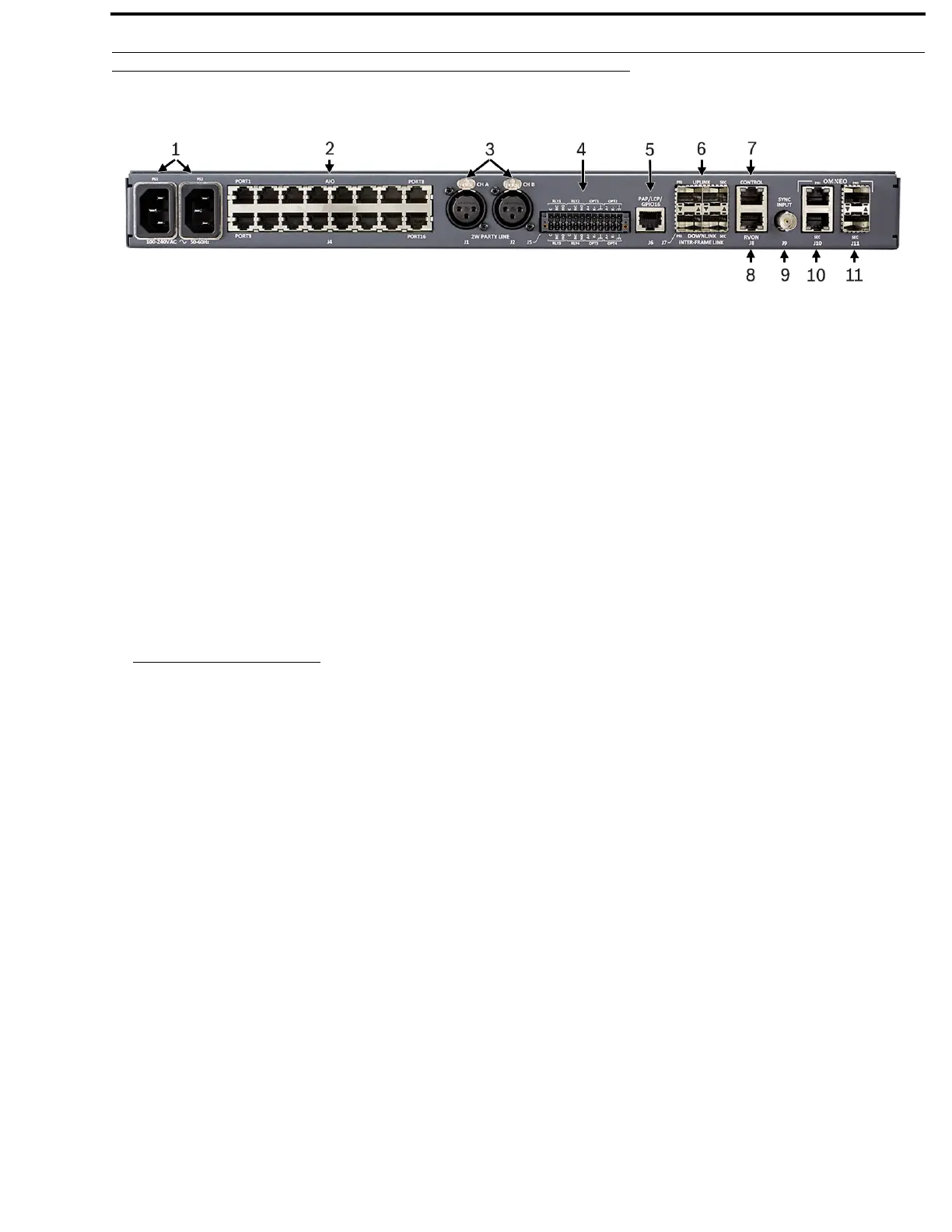

FIGURE 2. ODIN Rear Panel
1.
PS 1 – AC power connector
PS 2 – AC power connector
2.
AIO analog connectors – 16x (See “AIO Connector (RJ-45): J4 - x16” on page 14)
3.
2W party line CH A and CH B – 3-pin XLR female connector
4.
GPIO connector – 24-position Terminal Block (See “GPIO Connector: J5” on page 15)
5.
PAP/LCP/GPIO16 connector – RJ-45 Connector (See “PAP/LCP/GPIO16: J6” on page 15)
a
a. Only used for PAP-32 devices, not PAP-5032 devices.
6.
Inter-frame link connectors
7.
Control port – Ethernet connector (See “CONTROL & RVON: J8 Ethernet x 2” on page 15)
8.
RVON port
9.
Sync Input Connector – BNC connector
10.
OMNEO port – Ethernet connectors (See “OMNEO ETHERNET: J10 RJ-45 x 2 Supports 10/100/1000 Ethernet” on page 15)
11.
OMNEO port – Optical (fiber) connectors
