90 Menu System Description ODIN Intercom Matrix
Ports
The Ports menu is used to view port status for the following port and device types:
OMNEO
RVON
AIO
2-Wire
Keypanel
TIF
OMNEO
The OMNEO screen displays the status for OMNEO ports.
Frame Field
The Frame field is used to select the frame to be viewed.
Port Field
The Port field displays the port alpha for the OMNEO port.
Device Name Field
The Device Name field displays the name of the device to which this port is configured to connect.
NOTE: If this is an OMNEO connection, the device name always populates the field, unless the device connected to the port
is a third party Dante device.

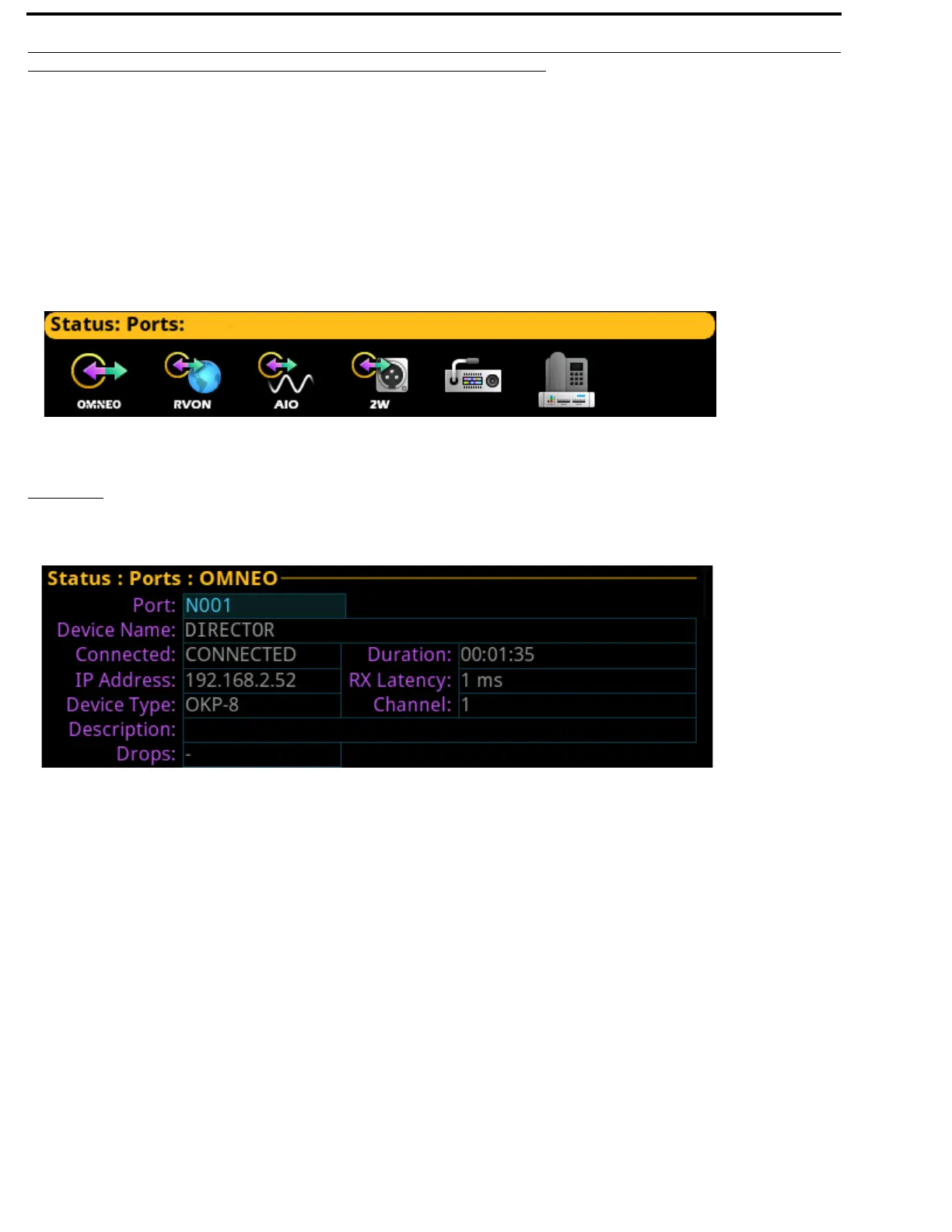

FIGURE 22. Status | Ports Menu Icons
FIGURE 23. Status | Ports | OMNEO
