130 Menu System Description ODIN Intercom Matrix
DNS Server Field
The DNS Server field is used to enter the IP address of the DNS server.
Device Field
The Device field is automatically set when the OMNEO device name is set (-MGMT is appended for the Management Port device
name).
This field is not editable.
Domain Field
The Domain field is used to enter the domain in which OMNEO resides. If multiple domains are not being used, it is best to leave
this field blank, which implies the .local domain is used.
NOTE: The DNS server address must be entered when providing a domain.
Use Static Check Box
The Use Static check box determines whether the IP address for the OMNEO interface is fixed and manually entered.
Ports Menu
The Ports menu is used to select the port type to configure.
OMNEO Channels
Frame Field
The Frame field is used to select the frame to be viewed.
Port Field
The Port field is used to select which port to configure.
Device Name Field
The Device Name field is used to enter the name of an OMNEO device to which this port attempts to connect.

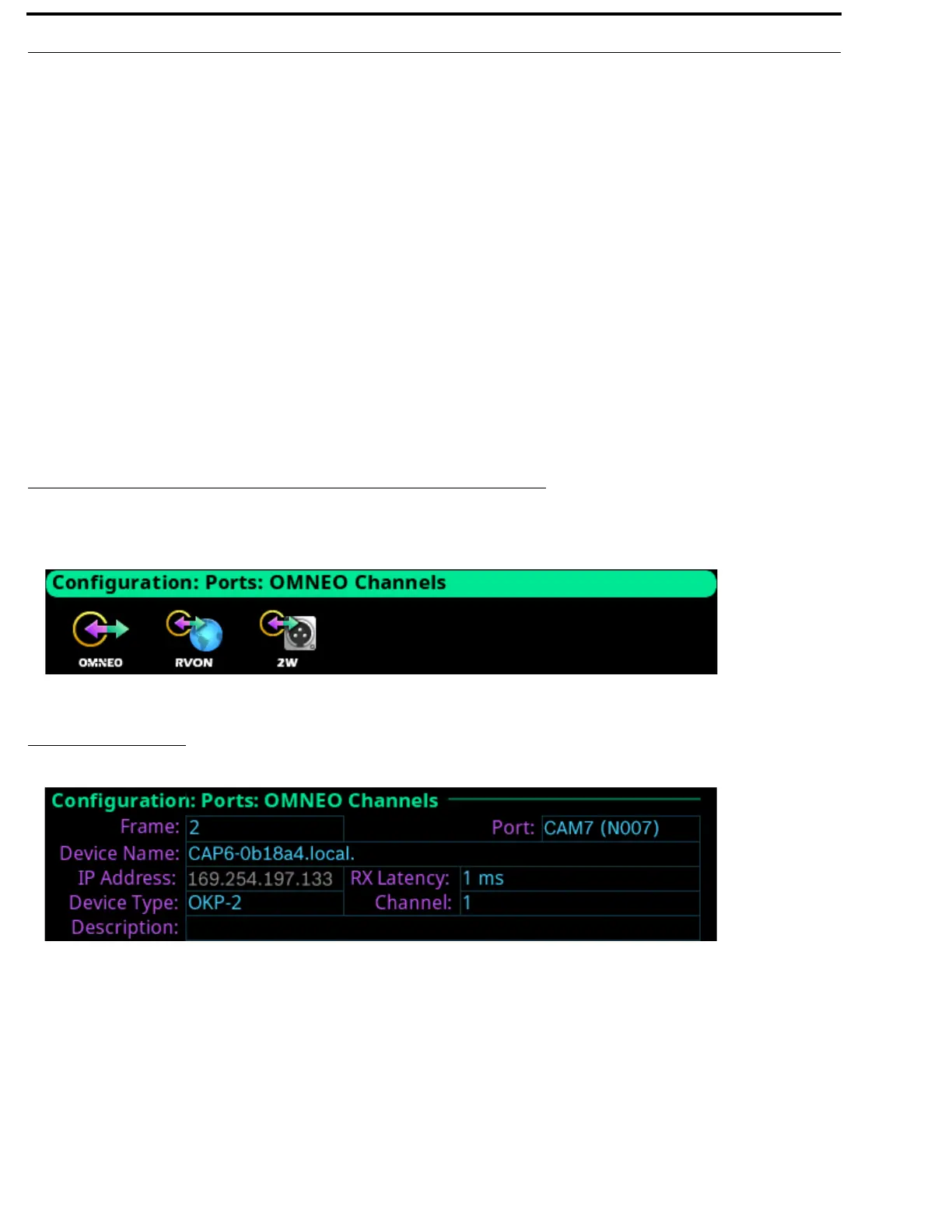

FIGURE 61. Configuration | Ports Menu Icons
FIGURE 62. Configuration | Ports | OMNEO Channels
