88 Menu System Description ODIN Intercom Matrix
RVON
The RVON screen is used to view the status of the RVON network status.
Frame Field
The Frame field is used to select the frame to be viewed.
Link Up Field
The Link Up field displays the status of data communication on the RVON port.
Available statuses are:
Speed Field
The Speed field displays the transmission speed over the RVON port.
The Ethernet links supports 100 Mbps or 1 Gbps.
Duplex Field
The Duplex field displays the transmit mode the RVON network connection is currently operating – Half or Full Duplex. Almost
all Ethernet interfaces auto-negotiate to Full Duplex. If the interface displays Half Duplex mode, this typically signifies the auto-
negotiate failed, resulting in network collisions and errors.
Available options for this field are:
Half-Duplex – can either transmit or receive, but not both simultaneously.
Full-Duplex – can transmit and receive simultaneously.

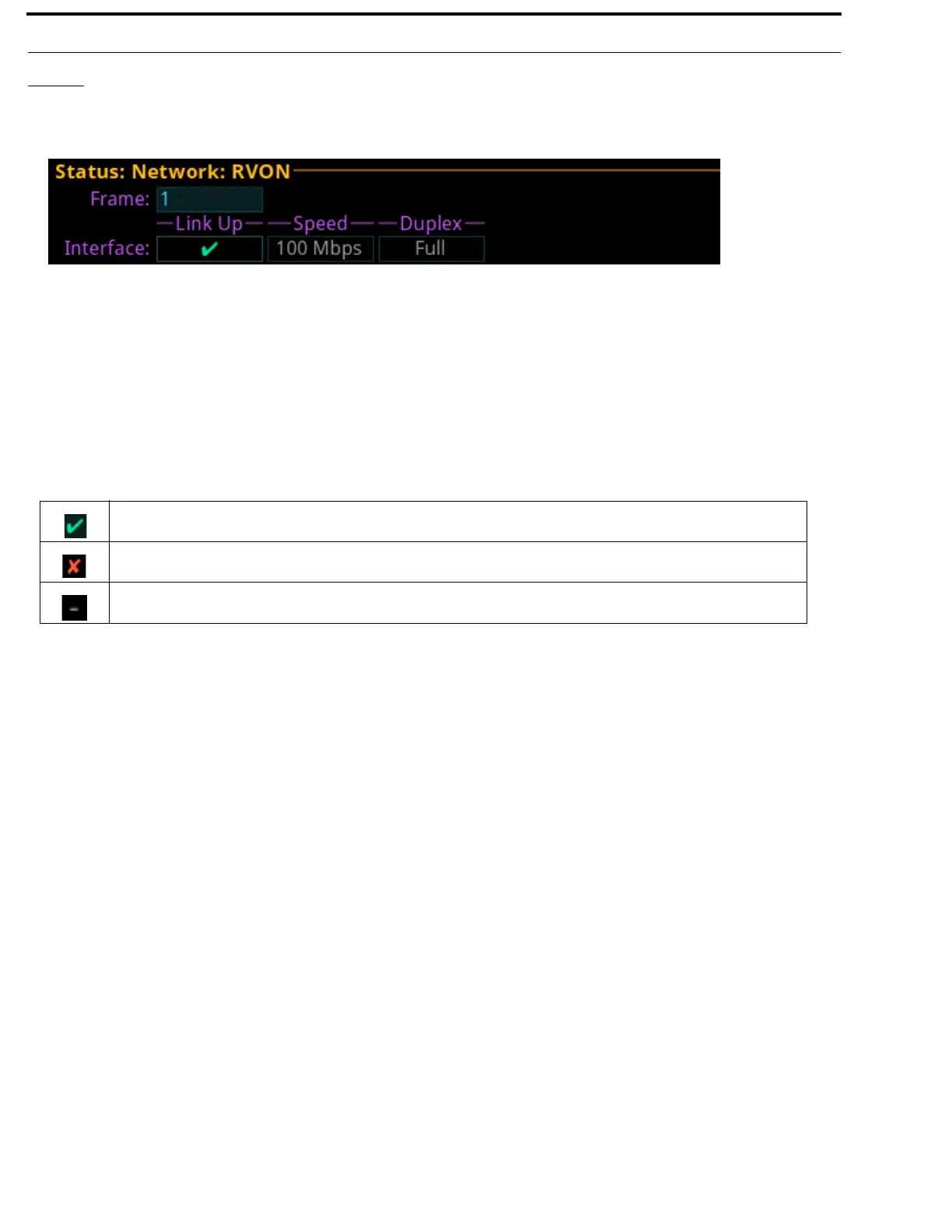

FIGURE 20. Status | Network | RVON
The link is up.
The link is not up, but an IP address is defined.
No IP address is defined.
