ODIN Intercom Matrix Menu System Description 87
OMNEO (RJ-45)
The OMNEO (RJ-45) screen is used to view the status of the OMNEO (RJ-45) network status.
Frame Field
The Frame field is used to select the frame to be viewed.
Primary Row
The Primary row displays the link status, connection speed and duplex status for the primary OMNEO (RJ-45) connection.
Secondary Row
The Secondary row displays the link status, connection speed and duplex status for the secondary OMNEO (RJ-45) connection.
Link Up Field
The Link Up field displays the status of data communication on the OMNEO (RJ-45) port.
Available statuses are:
Speed Field
The Speed field displays the transmission speed over the OMNEO interface.
The Ethernet links support 100 Mbps or 1 Gbps.
Duplex Field
The Duplex field displays the transmit mode the OMNEO network connection is currently operating – Half or Full Duplex. Almost
all Ethernet interfaces auto-negotiate to Full Duplex. If the interface displays Half Duplex mode, this typically signifies the auto-
negotiate failed, resulting in network collisions and errors.
Available options for this field are:
Half-Duplex – can either transmit or receive, but not both simultaneously.
Full-Duplex – can transmit and receive simultaneously.

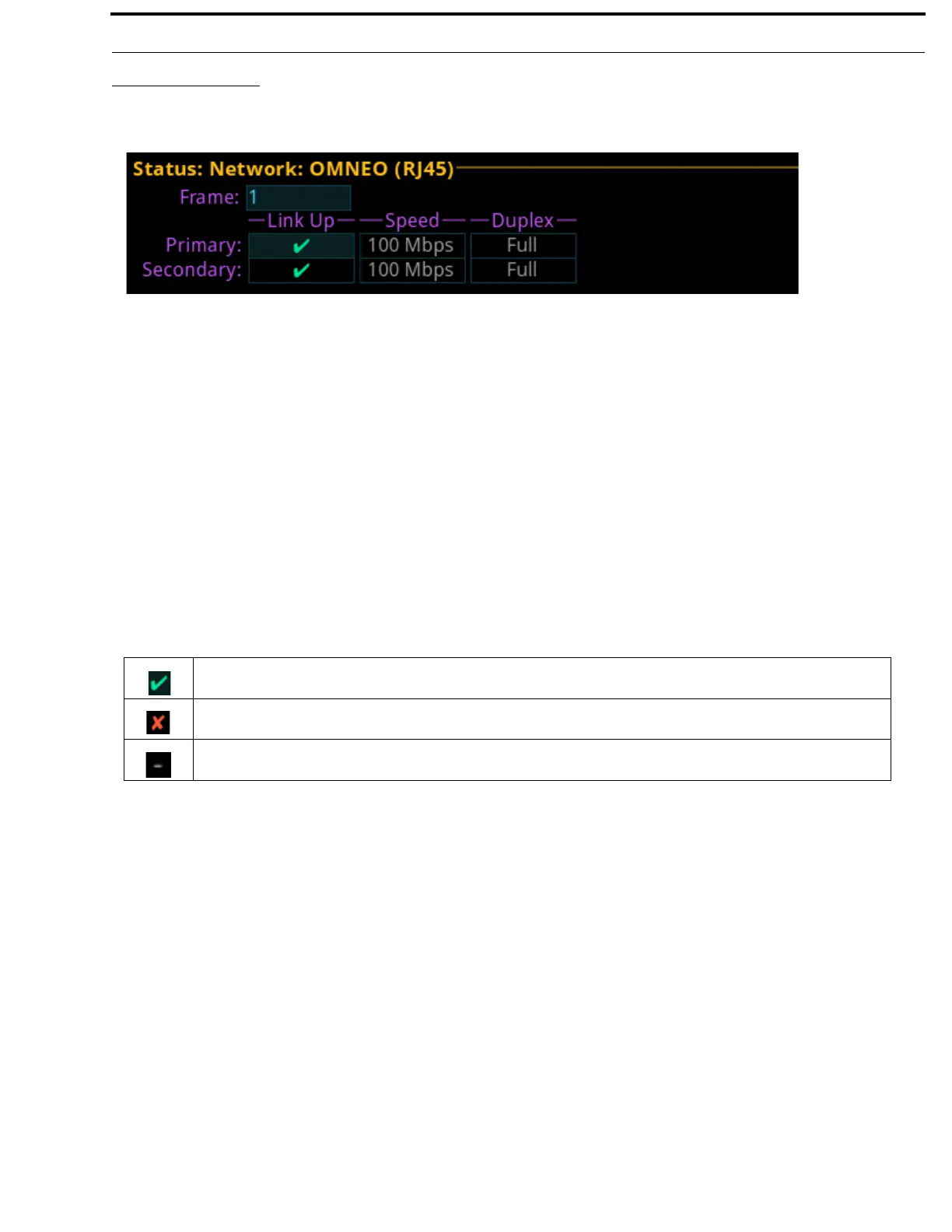

FIGURE 19. Status | Network | OMNEO (RJ-45)
The link is up.
The link is not up, but an IP address is defined.
No IP address is defined.
