10 Introduction ODIN Intercom Matrix
Reference View – ODIN Front Panel

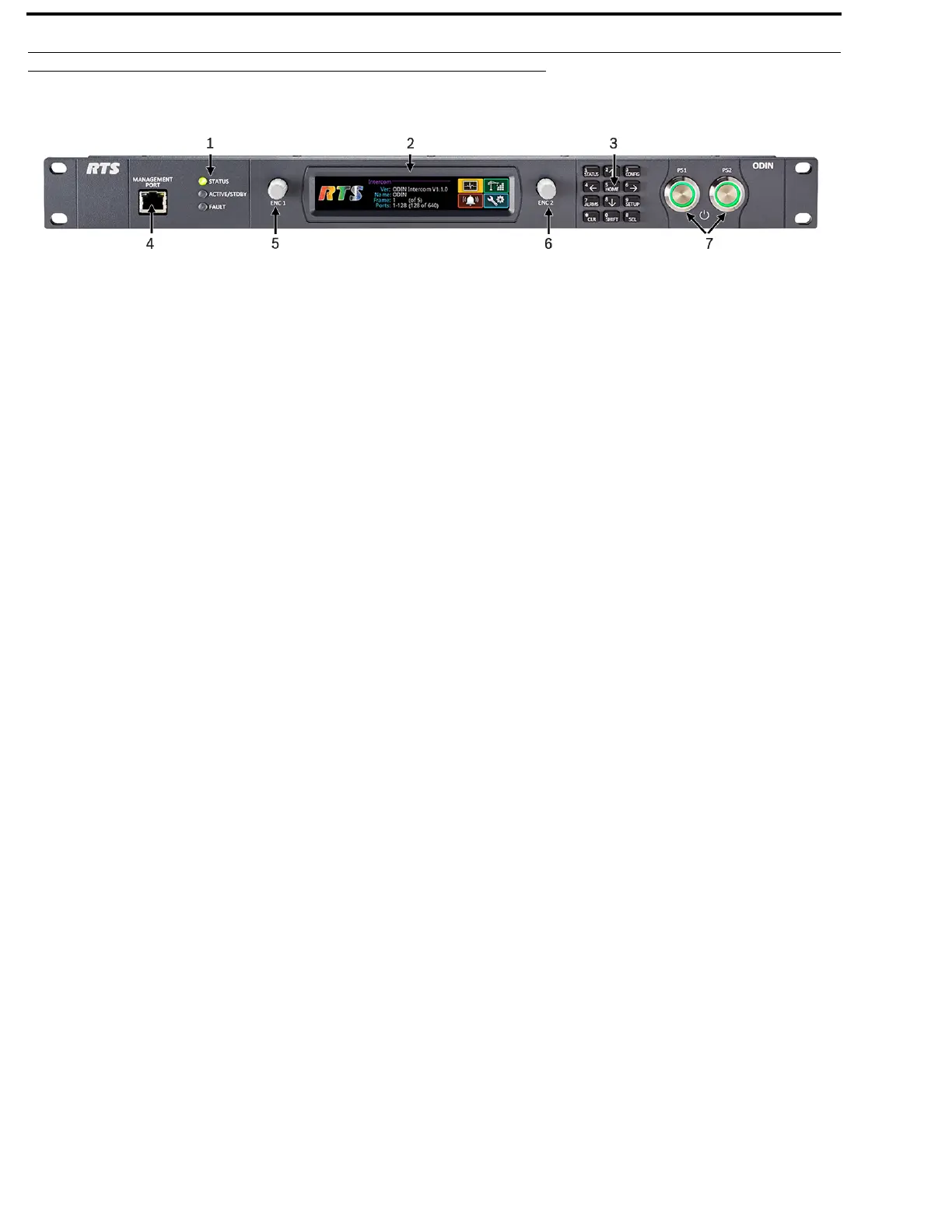

FIGURE 1. ODIN Front Panel
1.
Status, Active/Stdby, and Fault LEDs
2.
High resolution LCD display
3.
Keypad
4.
Management port - Ethernet connector (See “Management Port - RJ-45 Supports 10/100/1000 Ethernet” on page 14)
5.
ENC 1 - Left encoder knob
6.
ENC 2 - Right encoder knob
7.
PS1 switch (Power Supply)
PS2 switch (Power Supply)
