SATO M-10e TT/DT Printers Service Manual
Section 5. Mechanical Adjustments
5.3 Head Facing Adjustment (Print Balance)
STEP PROCEDURE
1. Switch the printer OFF and disconnect the power cord.
2. Raise the access cover.
3. Carry out continuous printing while ensuring that ribbon is not rewinding. (NA
for ribbon on Direct Thermal Units.)
4. Loosen the (2) screws as shown in illustrations.
5. Rotate the eccentric post screw to adjust the head position. When correct head
position is achieved, tighten the screws.
Perform this procedure with Section 5.4 for best print value.

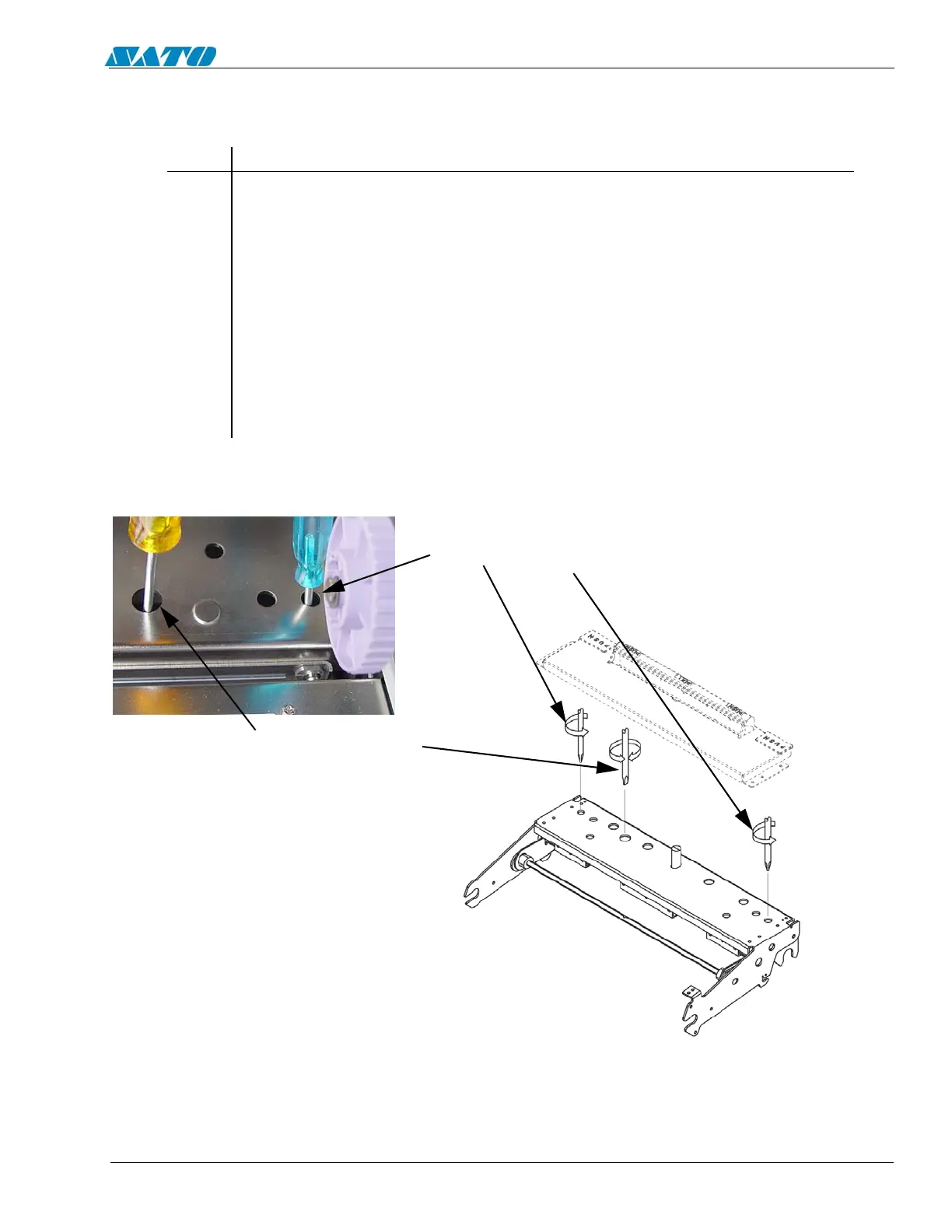

ROTATE ECCENTRIC
POST SCREW TO ADJUST
HEAD POSITION
LOOSEN (2) SCREWS

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
