SATO E series Service Manual

PN 9001098
Rev. A
2-1
SATO M-10e TT/DT Printers Service Manual
Configuration
Section
2

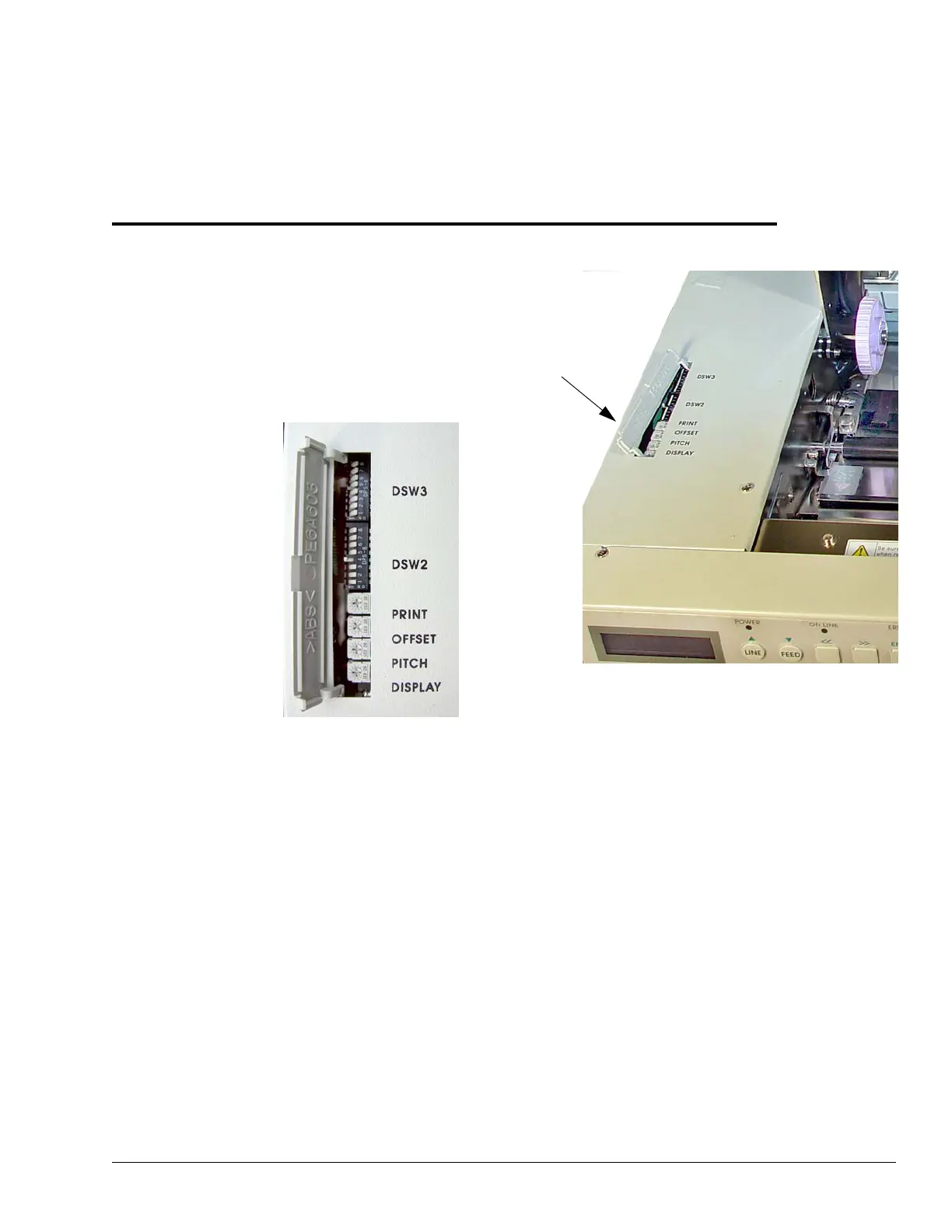

Two DIP switches (DSW2 & DSW3) are
located on the top of the printer on the left side
underneath the main cover. Swing open the
access cover to change the switches.
DSW2 DSW3
• Thermal Transfer or
Direct Transfer Mode
• Operating Mode, Batch/Continuous/
Tear Off/Cutter/Reserved
• Sensor Type Mode • Label Pitch Sensor Enable/Disable
• Head Check Mode • Backfeed Position
• Hex Dump Mode
• External Device Label Print
Syncronization
• Receive Buffer Mode • External Signal Type Selection
• Firmware Download Mode • Repeat Print Via External Signal
• Protocol Code
• Serial Protocol
These switches can be
used to set:
2.1 Dip Switch Settings

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
