Section 1. Overview and Specifications

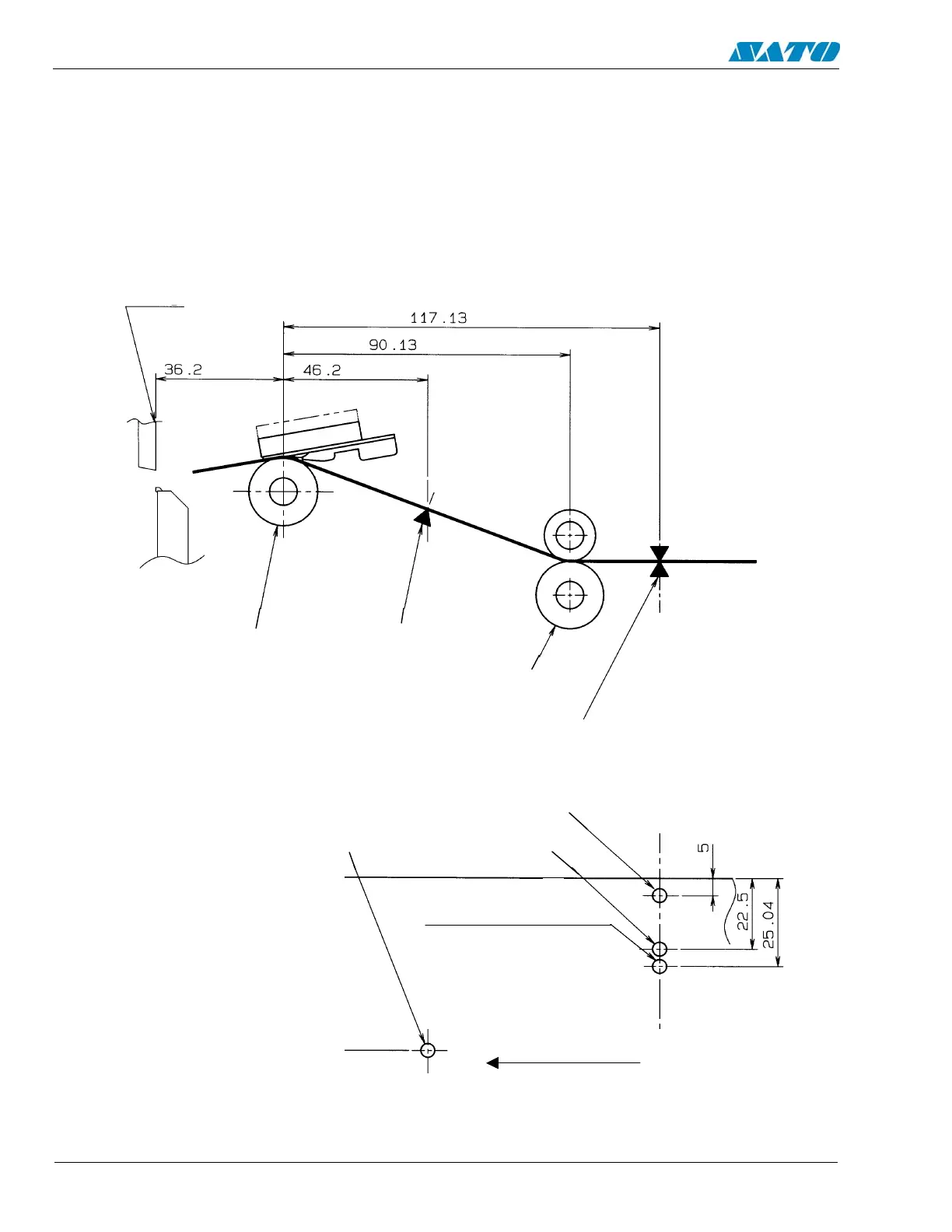

Cut Position
Print Position
Platen Roller
Feed Rolle
r
Auto Load
Sensor
Label Sensor
Auto Load
Sensor
Label Feed Direction
All Dimensions are in mm
Paper End Senso
r
Eye-Mark
Sensor
Label Gap
Sensor
1.3 Sensors
The M10e printer can position labels using either a Label Gap (transmissive) or an Eye-Mark
(reflective) sensor. The sensor used is selected by DSW2-2. The sensor position is fixed and
cannot be adjusted. In addition, the signals from the sensors can be adjusted using the LCD
panel to compensate for different liner opacities and/or Eye-Mark reflectance values.

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
