SATO E series Service Manual

PN 9001098
Rev. A
1-9
SATO M-10e TT/DT Printers Service Manual
Section 1. Overview and Specifications
LABEL GAP
SENSOR
(TRANSMISSIVE)
Detects the edge of the label by looking through
the backing paper which is translucent and
detecting the presence of the opaque label.
(SEN1 PCB), (SEN2 PCB)
EYE MARK
SENSOR
(REFLECTIVE)
Detects the light reflected from the bottom of the
label liner.
(SEN1 PCB)
PAPER END
SENSOR
Senses when the media supply has been
depleted. (SEN1 PCB), (SEN2 PCB)
LABEL
PENETRATING
SENSOR
Description needed (SEN3 PCB)
RIBBON SENSOR Detects when ribbon has reached the end of the
spool. (CSEN PCB)
AUTO LOAD
SENSOR
Senses when the media is correctly positioned for
auto loading.

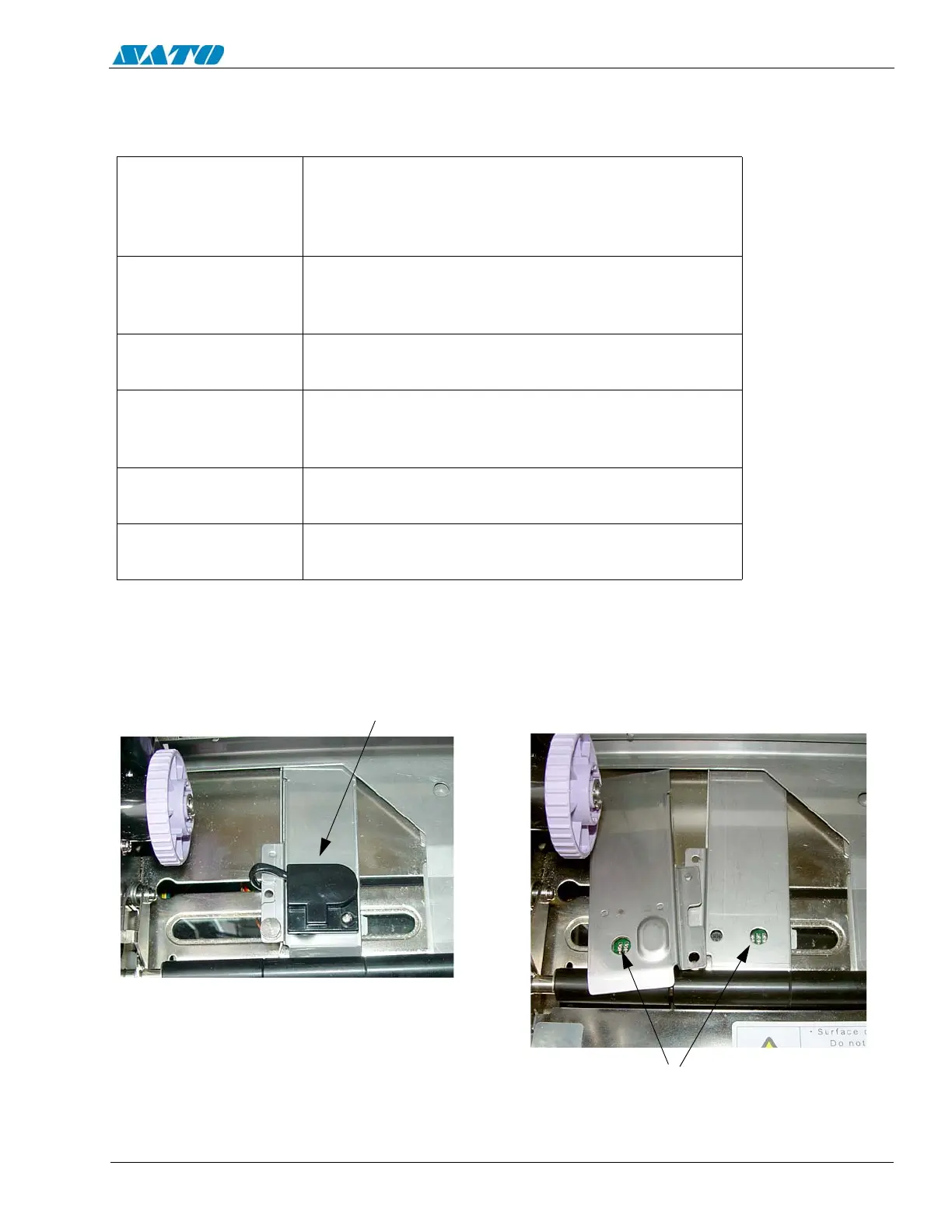

Sensors
SENSOR ASSEMBLY
Contains SEN2 PCB for
Label Gap Sensor
Underside
showing sensors

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
