SATO E series Service Manual

SATO M-10e TT/DT Printers Service Manual
PN 900109
Rev. A
5-4
Section 5. Mechanical Adjustments

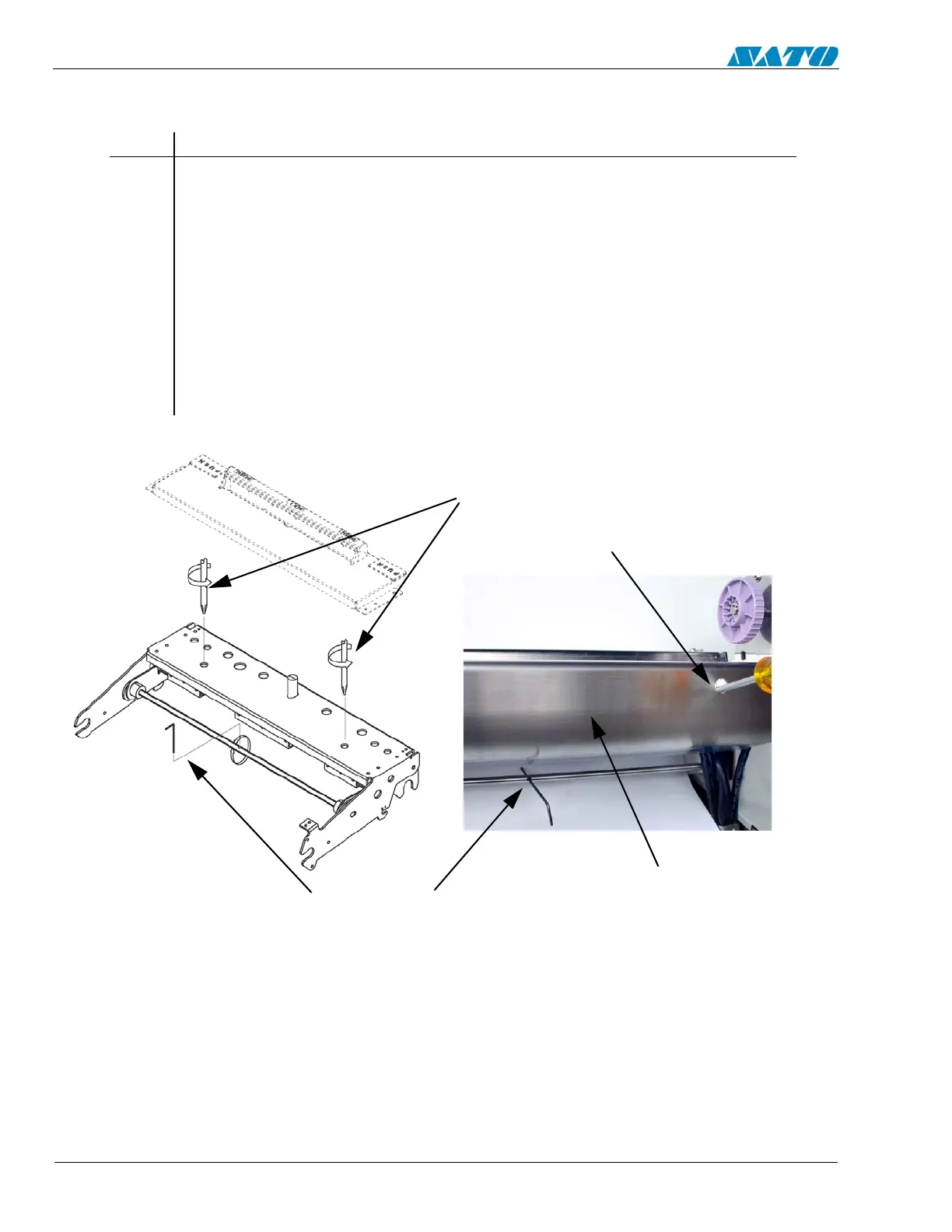

5.4 Print Head Front and Rear Alignment (Print Balance)
STEP PROCEDURE
1. Switch the printer OFF and disconnect the power cord.
2. Raise the access cover.
3. Loosen (2) adjustment fixed screws.
4. Insert hexagonal wrench or pin into adjustment socket. Adjust forward or
backward by turning the axle.
Backward rotation shifts the head position backward.
Forward rotation shifts the head position forward.
Perform this procedure with Section 5.3 to achieve the best print value.
INSERT HEXAGONAL
WRENCH OR PIN THROUGH
ADJUSTMENT SOCKET
AND ROTATE
FORWARD OR BACKWARD
LOOSEN (2) SCREWS
(ACCESS THROUGH
HEAD COVER)
HEAD COVER

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
