SATO E series - Steps Prior to some Procedures

PN 9001098
Rev. A
6-3
SATO M-10e TT/DT Printers Service Manual
Section 6. Replacement Procedures
Steps Prior to Some Procedures

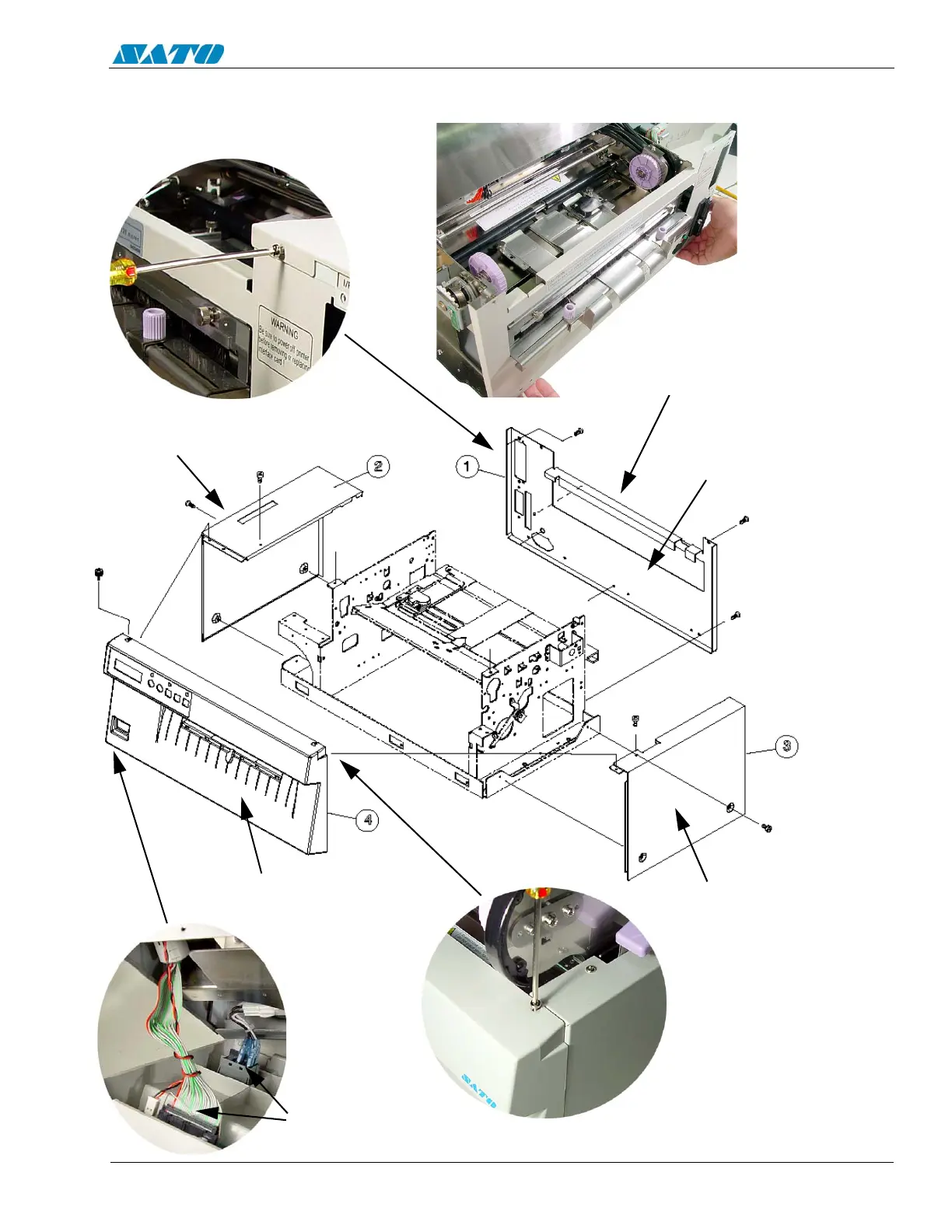

REAR PANEL
RIGHT SIDE
COVER
FRONT COVER
LEFT SIDE
COVER
Lift the Rear Panel straight
up to manuver it from the
inside bracket, then pull
toward your body.
DETACH TWO
CONNECTORS
