SATO E series Service Manual

PN 9001098
Rev. A
3-5
SATO M-10e TT/DT Printers Service Manual
Section 3. Interface Specifications
The High Speed Serial Interface is a Plug-in interface module that can be installed in the printer by the user.
General Specifications
Asynchronous ASCII Half duplex communication
Ready/Busy Hardware Flow Conrol
Pin 20, DTR Control
Pin 4, RTS Error Condition
X-On/X-Off Software Flow Control
Bi-Directional Communication
Data Transmission Rate 9600, 19200, 38400, 57600bps
Character Format 1 Start Bit (fixed)
7 or 8 data bits (selectable)
Odd, Even or No parity (selectable)
1 or 2 Stop bits (selectable)
Electrical Specifications
Connector DB-25S (Female)
DB-25P (Male), 50 ft. maximum length. For cable configuration, refer
to Cable Requirements appropriate to the RS232C protocol chosen.
Signal Level High = +5V to 12V
Low = -5V to -12V

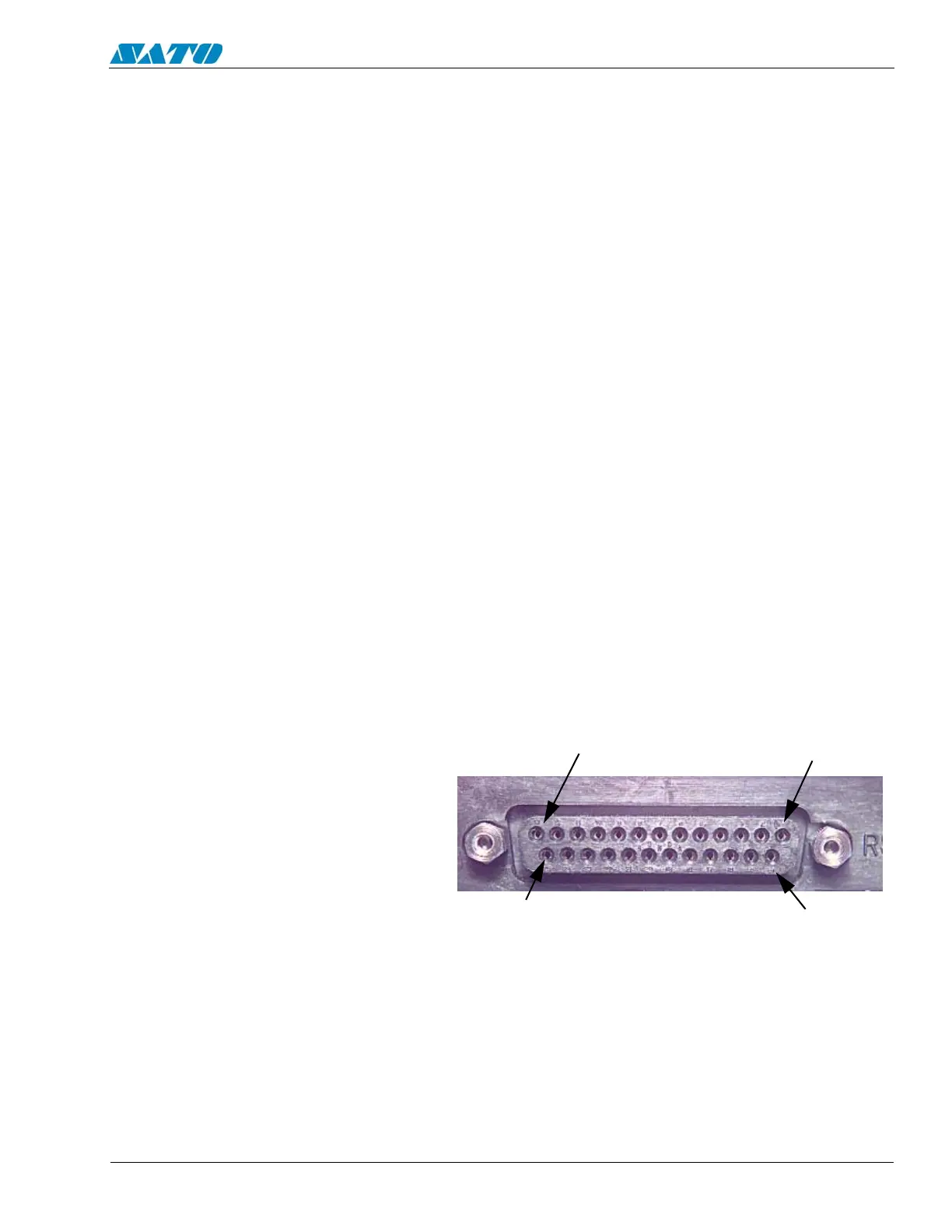

PIN ASSIGNMENTS - RS232C PRINTER END
1
13
14
25
3.5 RS232C Serial Interface

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
