SATO E series Service Manual

SATO M-10e TT/DT Printers Service Manual
PN 9001098
Rev. A
3-4
Section 3. Interface Specifications
PIN SIGNAL DIRECTION PIN SIGNAL DIRECTION
1STROBE To Printer 19 STROBE Return Reference
2 DATA 1 To Printer 20 DATA 1 Retrun Reference
3 DATA 2 To Printer 21 DATA 2 Return Reference
4 DATA 3 To Printer 22 DATA 3 Return Reference
5 DATA 4 To Printer 23 DATA 4 Return Reference
6 DATA 5 To Printer 24 DATA 5 Return Reference
7 DATA 6 To Printer 25 DATA 6 Return Reference
8 DATA 7 To Printer 26 DATA 7 Return Reference
9 DATA 8 To Printer 27 DATA 8 Return Reference
10 ACK To Host 28 ACK Return Reference
11 Busy To Host 29 BUSY Return Reference
12 Printer Error To Host 30 PE Return Reference
13 SELECT To Host 31 INIT From Host
14
AUTOFD
(1)
To Host 32 FAULT To Hos t
15 Not Used 33 Not Used
16 Logic Gnd 34 Not Used
17 FG Frame Ground 35 Not Used
18 +5V (Z=24K
ohm)
To
Host
36
SELECTIN
(1)
From
Host
(1) Signals required for IEEE 1284

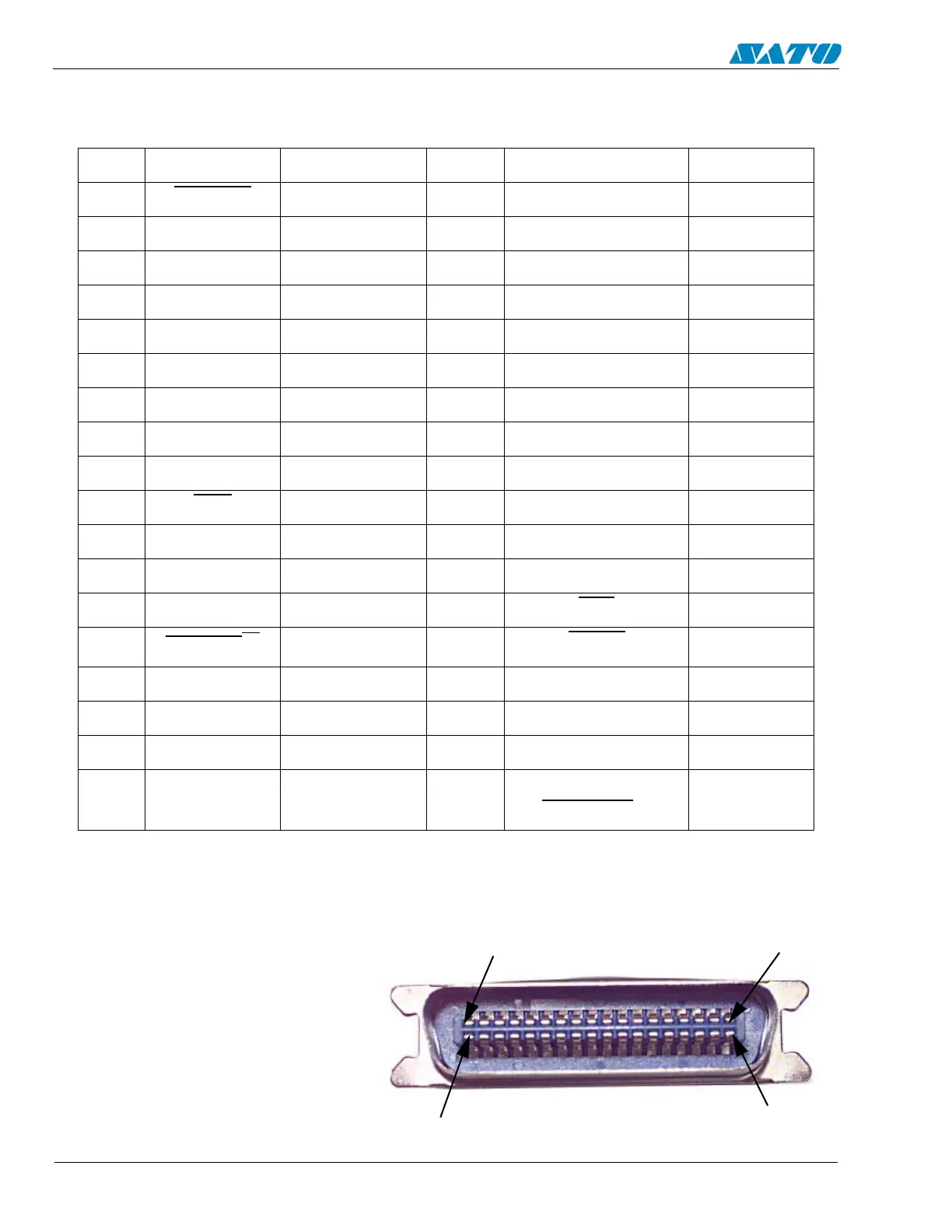

IEEE 1284 Parallel Interface
PIN ASSIGNMENTS
IEEE 1284 CABLE END
18
36
1
19

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
