SATO E series Service Manual

SATO M-10e TT/DT Printers Service Manual
PN 900109
Rev. A
6-6
Section 6. Replacement Procedures

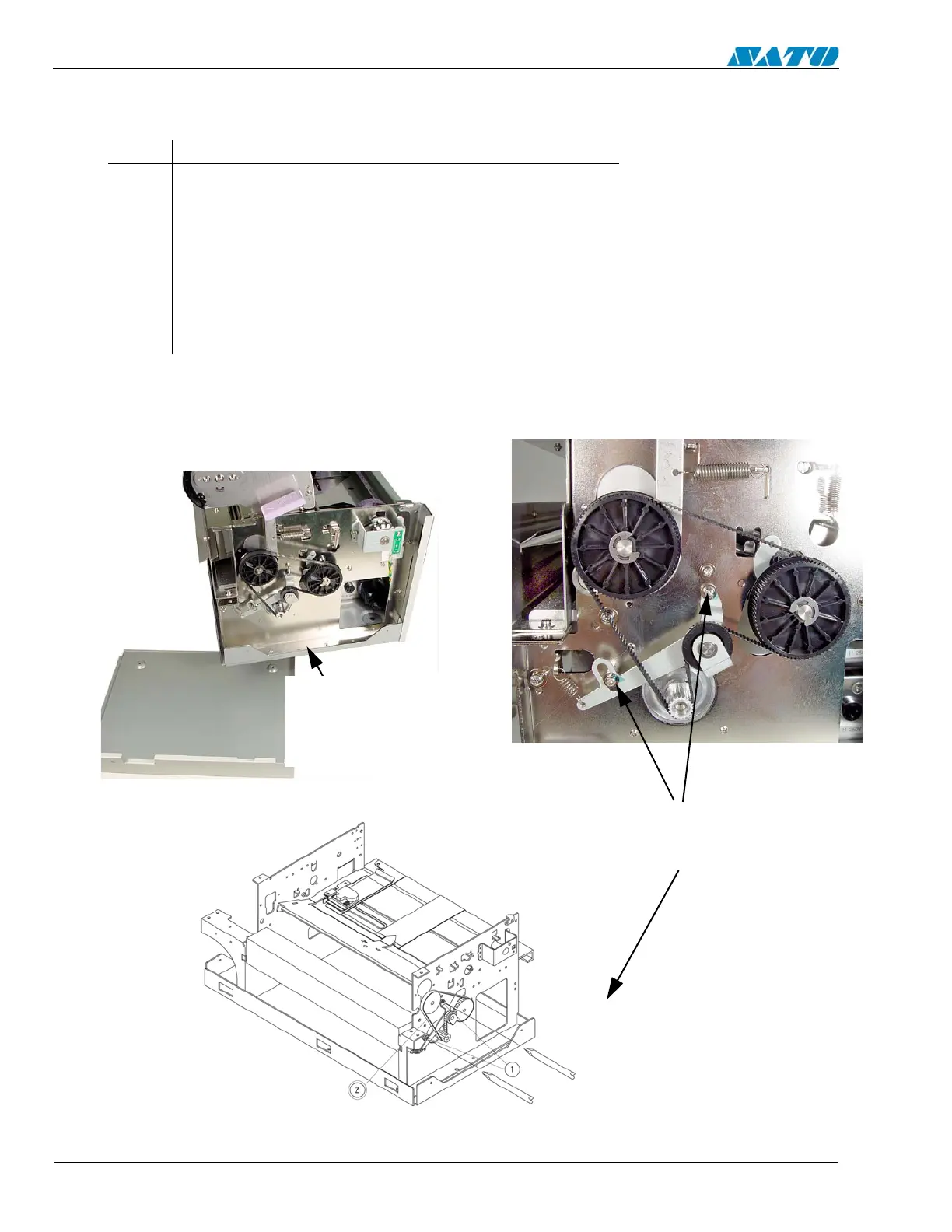

6.4 Replacing the Timing Belt
To replace the timing belt, follow perform the following steps.
STEP PROCEDURE
1. Switch the printer OFF and disconnect the power cord.
2. Unfasten (5) screws from the right side cover and remove.
3. Unfasten (2) screws to relieve tension from the belt.
4. Remove and replace the belt.
5. Adjust the belt tension as outlined in Section 5.2.
6. Replace the right side cover.
UNFASTEN (5) SCREWS
AND REMOVE THE
RIGHT SIDE COVER
UNFASTEN (2)
SCREWS TO REMOVE
TENSION FROM BELT

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
