Section 6. Replacement Procedures
6.12b Replacing the Fuse(s)

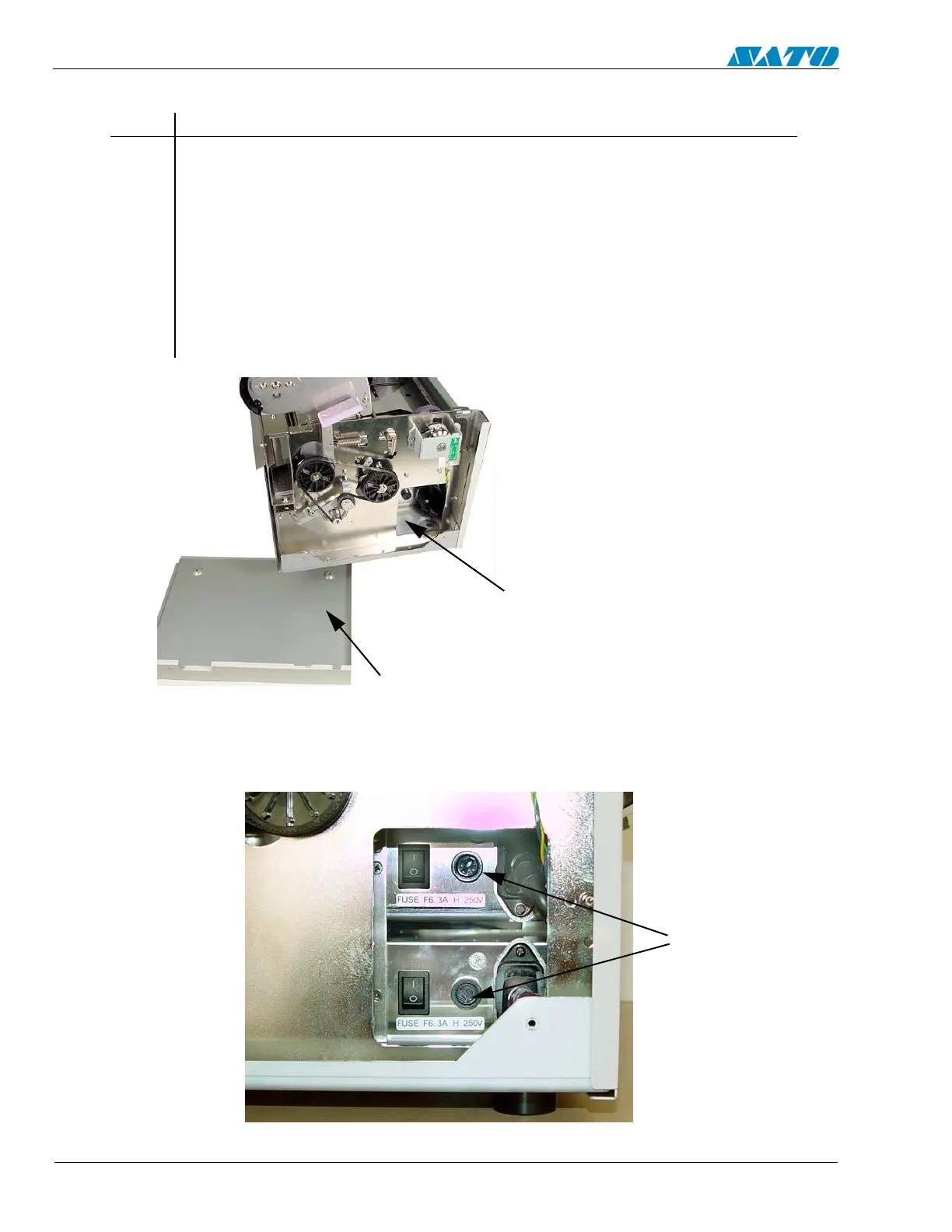

ACCESS OPENING
TO FUSE(S)
UNFASTEN (5) SCREWS
AND REMOVE THE
RIGHT SIDE COVER
REMOVE AND
REPLACE FUSE(S)
STEP PROCEDURE
1. Switch the printer OFF and disconnect the power cord.
2. Unfasten (5) screws from the right side cover and remove.
3. Remove and replace the fuse(s) with one of equal rating.
Do not use a fuse of
higher rating.
4. Replace the right side cover.
5. Complete the Factory Reset Procedure.
