SATO M-10e TT/DT Printers Service Manual
Section 6. Replacement Procedures
6.12a Replacing the Fuse(s) (On PCB)
STEP PROCEDURE
1. Switch the printer OFF and disconnect the power cord.
2. Unfasten (5) screws from the left side cover and remove.
3. Remove and replace the fuse(s) with one of equal rating.
Do not use a fuse of
higher rating.
4. Replace the left side cover.
5. Complete the Factory Reset Procedure.

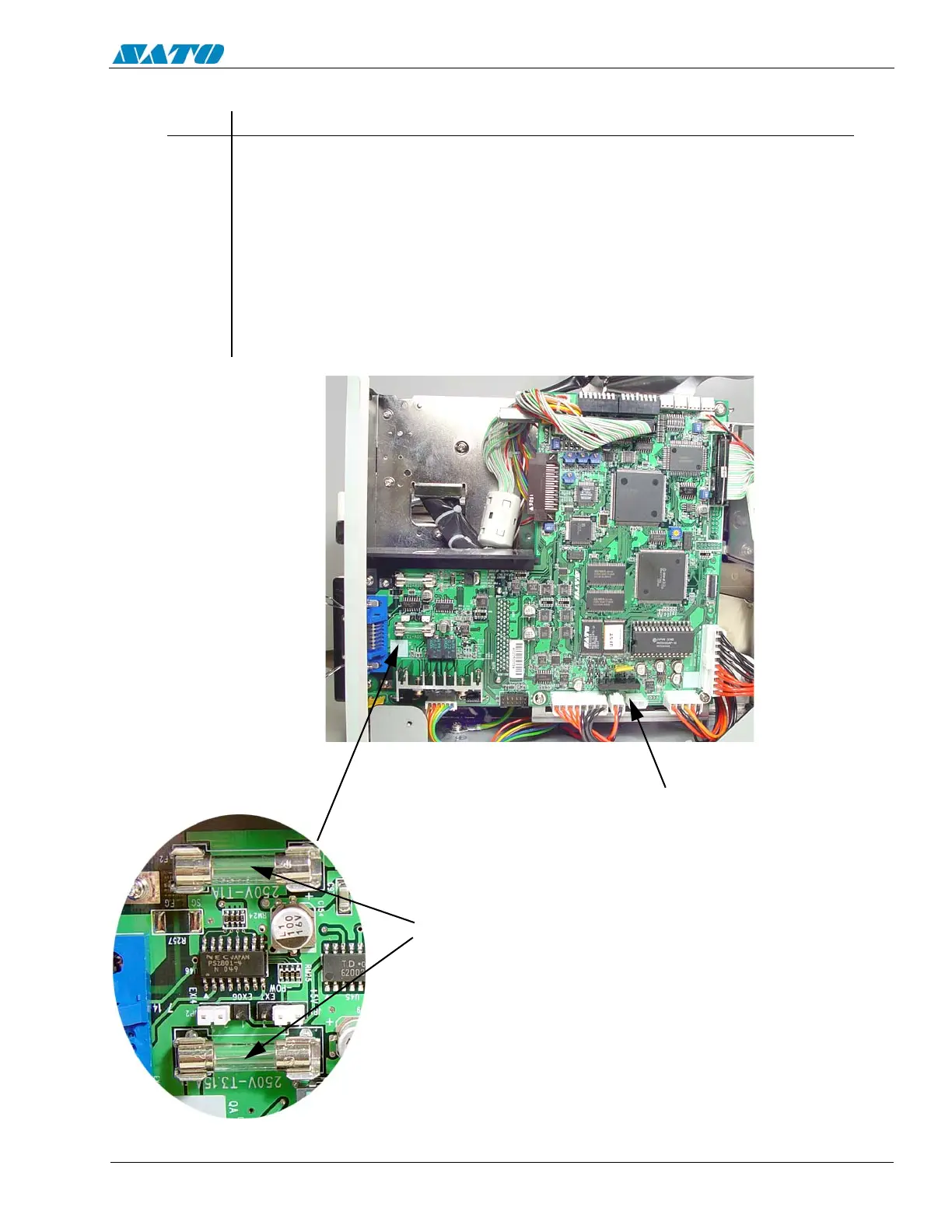

REMOVE AND
REPLACE FUSE(S)
MAIN CIRCUIT BOARD
