SATO M-10e TT/DT Printers Service Manual
PN 900109
Rev. A
6-16
Section 6. Replacement Procedures

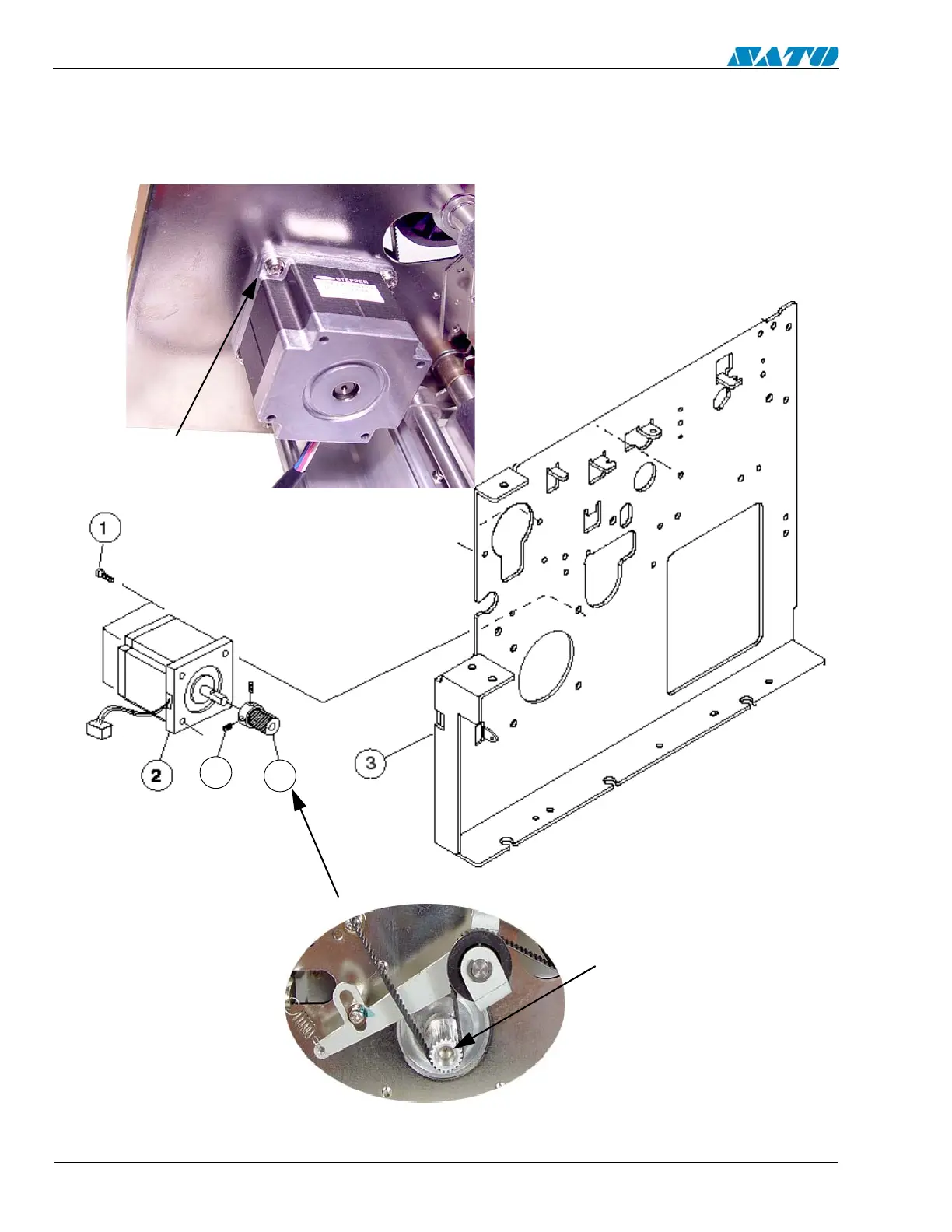

Replacing the Stepper Motor
DETACH PULLEY
FROM MOTOR SHAFT
REMOVE (4)
SCREWS
7
8
