Section 2. Configuration
Dip Switch Settings

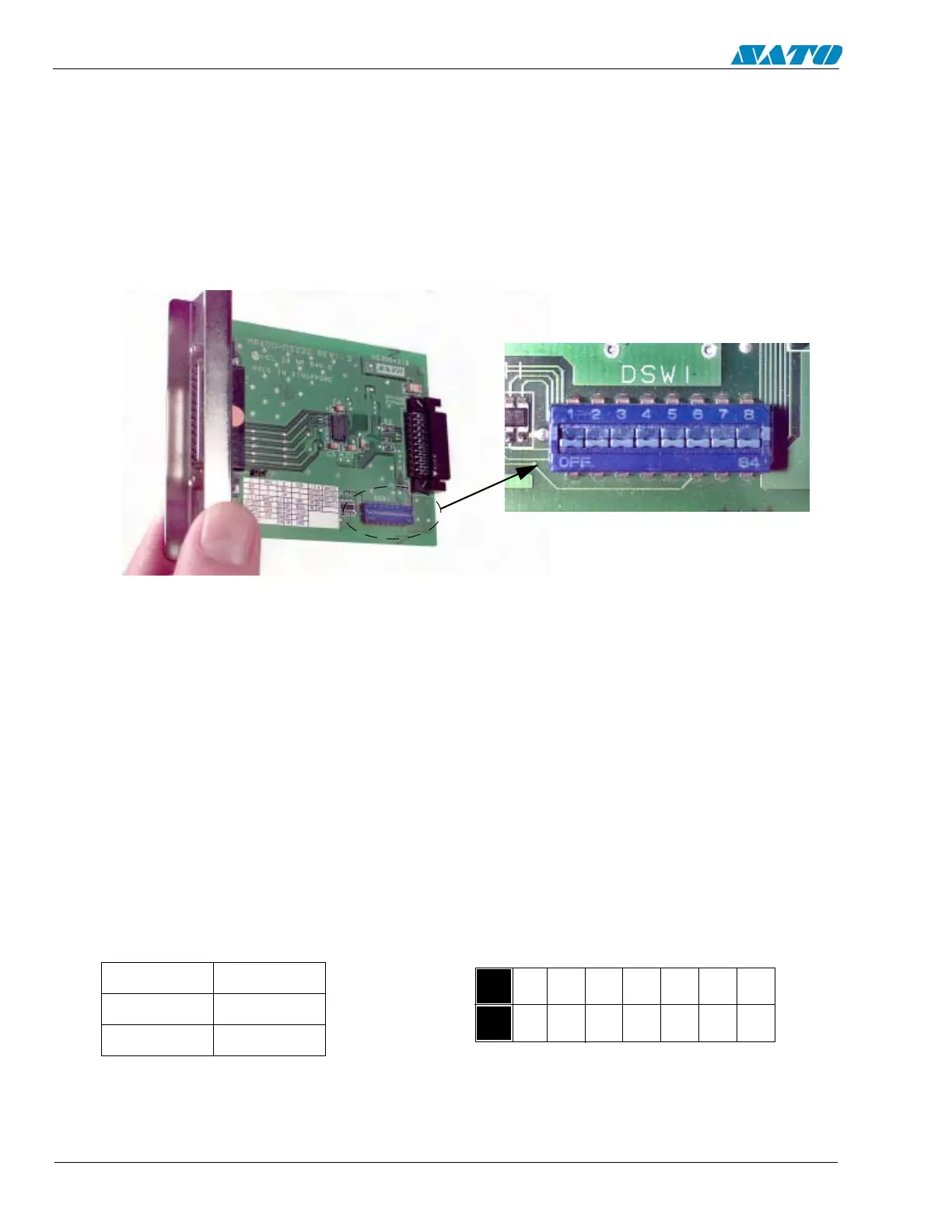

A third DIP switch (DSW1) is located on the RS232 Serial Inter-
face Adapter card and is used to set the RS232C transmit/receive
parameters.
DSW1
Each switch is an eight section toggle switch. The On position is always to the
top. To set the switches, first power the unit Off, then position the DIP switches.
Finally after placing the switches in the desired positions, power the printer back
on. The switch settings are read by the printer electronics during the power-up
sequence. They will not become in effect until the power is cycled.
The toggle settings for DSW1 is as follows:
RS232 Transmit/Receive Setting
Data Bit Selection (DSW1-1):
This selection sets the printer to receive 7 or 8 data bits
for each byte transmitted.
DSW1-1 SETTING
Off 8 Data Bits
On 7 Data Bits
123 4 56 7 8
ON
OFF
DSW1

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
