SATO M-10e TT/DT Printers Service Manual
Section 6. Replacement Procedures

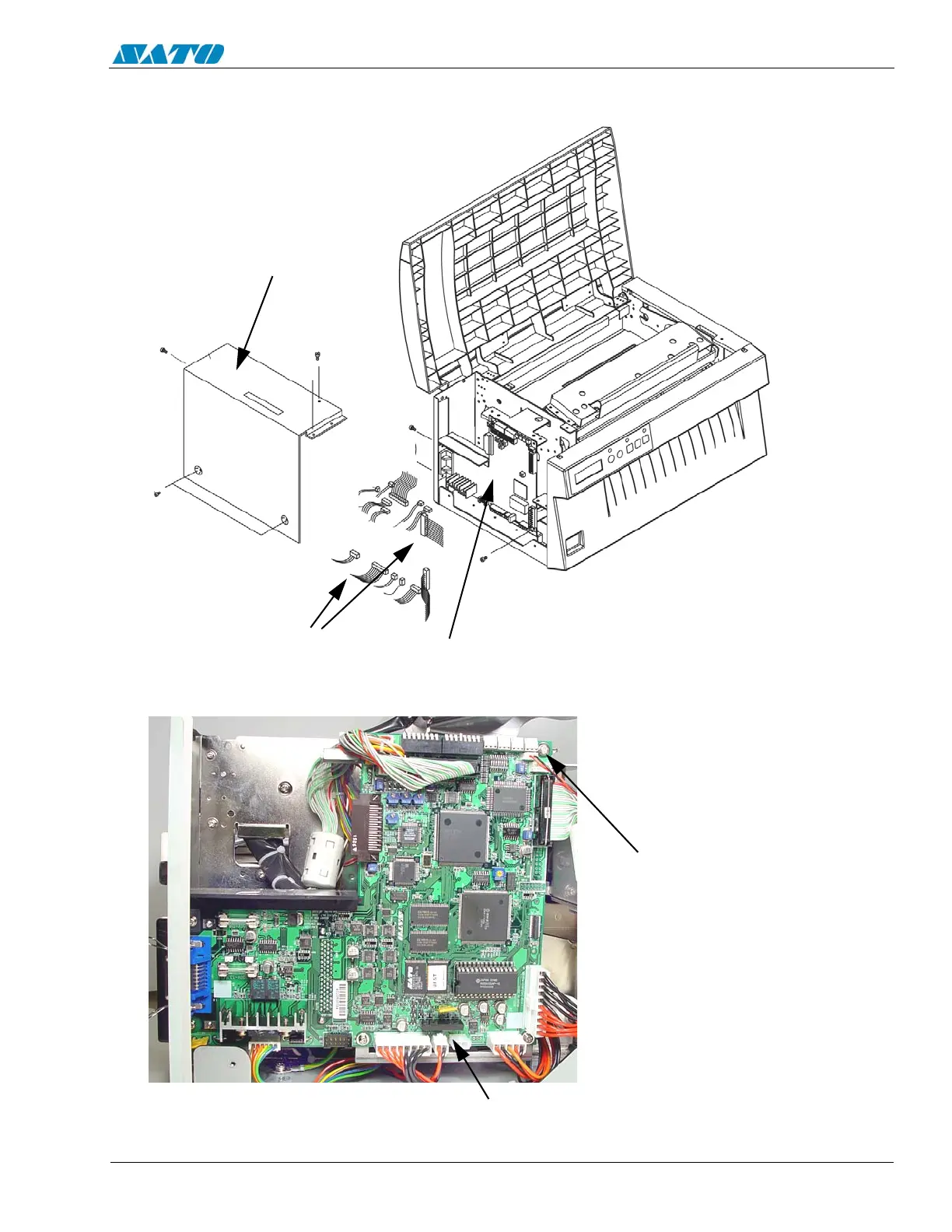

Replacing the Main Circuit Board
LEFT SIDE COVER
CONNECTORS
MAIN CIRCUIT BOARD
DISCONNECT CABLES
FROM CIRCUIT BOARD
REMOVE (4) SCREWS
TO DETACH CIRCUIT
BOARD FROM
BRACKET

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
