Ionizer (STABLO-AP Standard Equippment: W-AD Series · Option: W/ X series)Ionizer (STABLO-AP Standard Equippment: W-AD Series · Option: W/ X series)
1
3
5
2
4
6
7
8
12
14
13
9
10
11

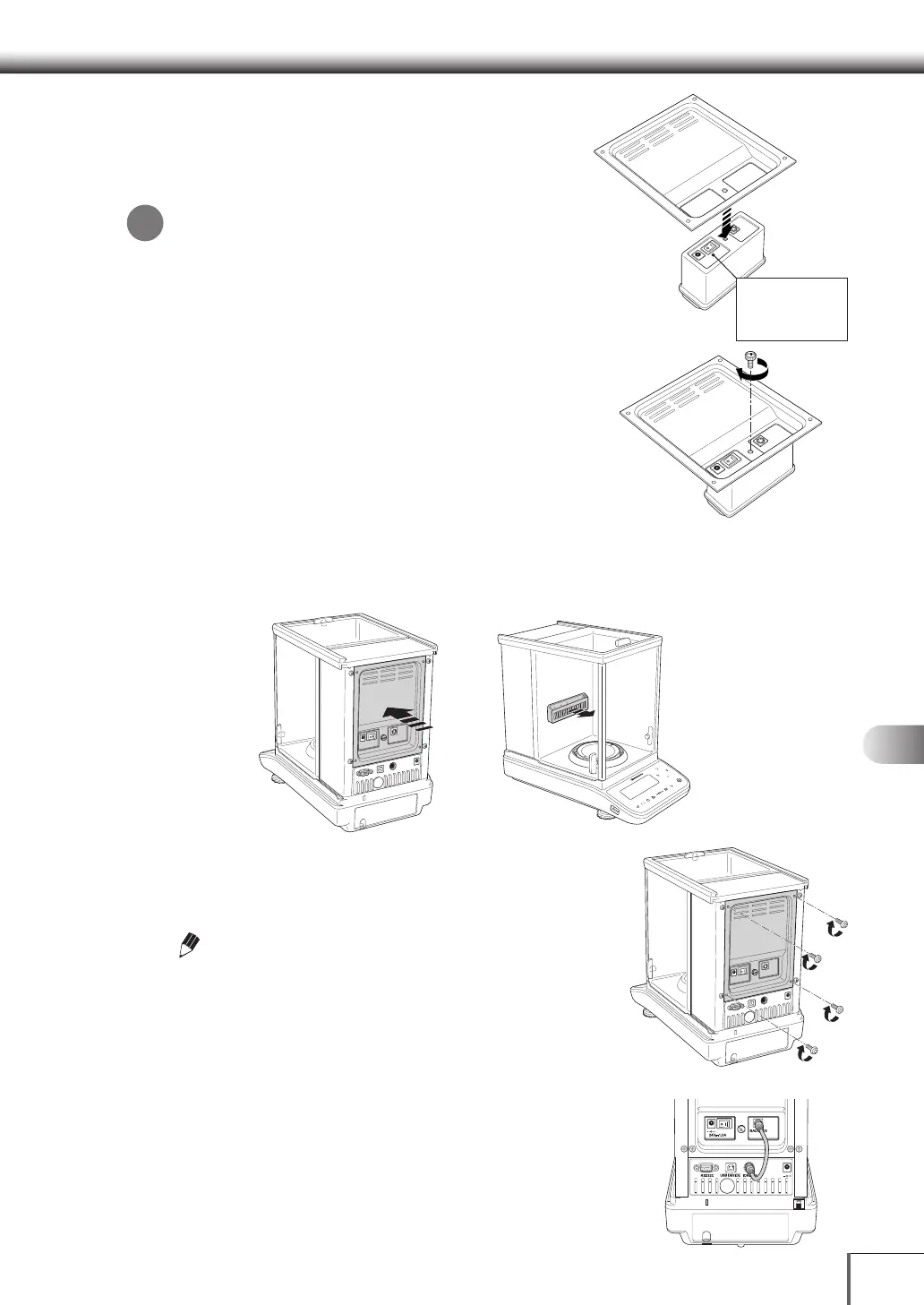

5.
Align the ionizer with the backplate
with the switch facing upward and
located on the left-hand side.
Aligning the Backplate
Align the ionizer so that the switch and connector
protrude from the hole in the backplate.
6.
Attach the ionizer by turning the knob
removed in Step 4 in a clockwise
direction through the center hole
7.
Align the backplate with the rear of the balance, and then push
the ionizer into place while making sure that the ion emitter is
located inside the weighing capacity chamber
OK
FUNC
g
d
POWER
ION
ALARM
8.
Use the screwdriver (#2) to fasten the
backplate using the screws (4 screws)
removed in step 1.
Precautions
Note: Make absolutely sure to use the screwdriver (#2).
9. Connect the cable supplied with the ionizer
*
* Align the switch
on the left-hand
side as shown in
the illustration.
