22 Component Names and FunctionsComponent Names and Functions


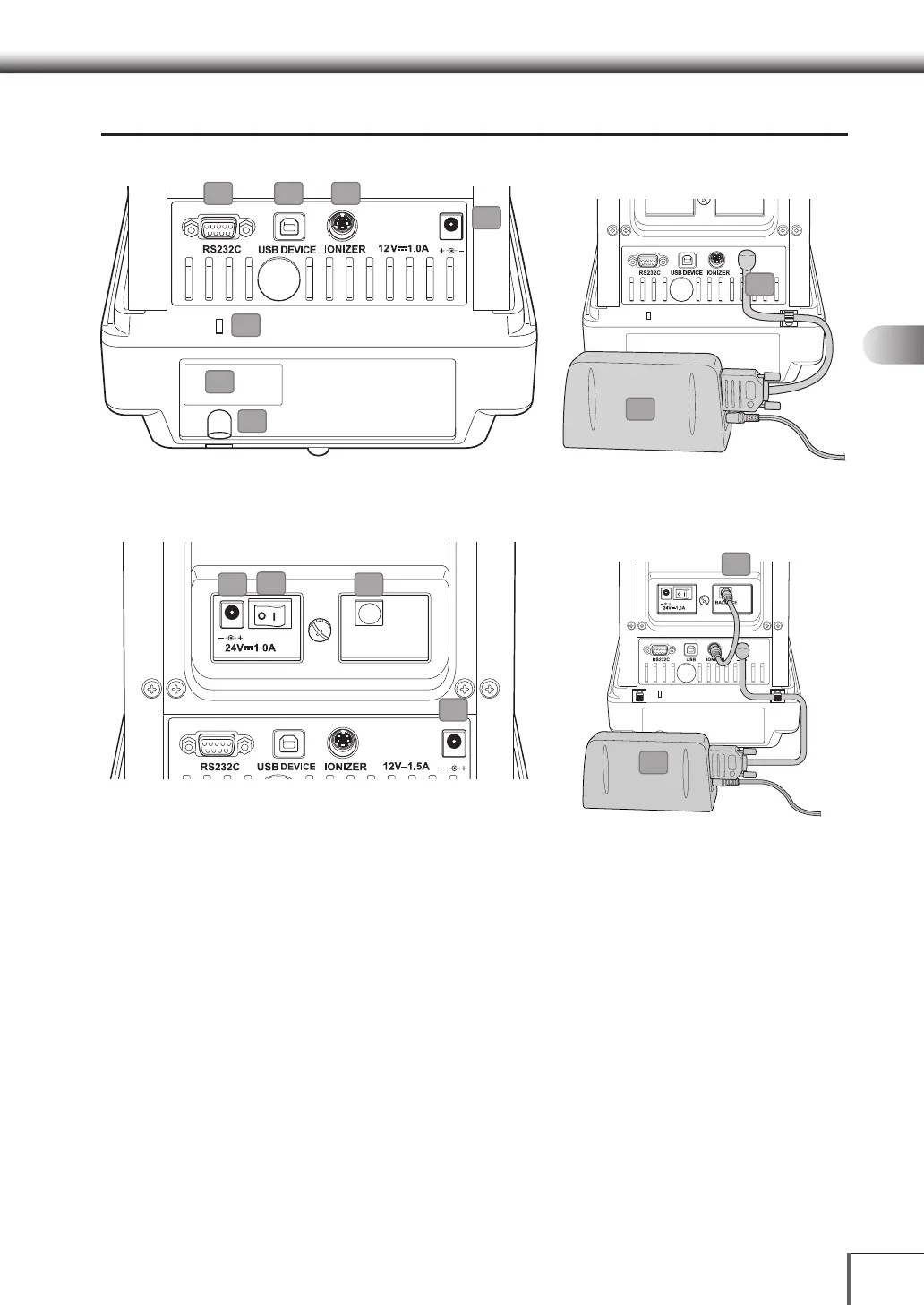

Main Unit Rear Panel
W/X/Y Series
(for Semi-micro models)
35
36
28 29 30
31
33
34
32
W-AD Series
(for Semi-micro models)
40
36
37
38
39
41
No. Components Name Function
28
RS232C Serial Connector This is used for connecting a printer (EP-100/110, etc.)
29
USB Device This is used when the balance is connected to a personal
computer.
30
connecter for ionizer (W-AD/ W/ X Series only) The connector for connecting the ionizer.
31
DC IN Connector The AC connector is connected to this to supply power to the
balance.
32
Security Slot The slot for use with an anti-theft locking system.
33
Product Label Lists the model name and serial number.
34
Anti-theft wire conduit The anti-theft wire is passed through this conduit.
35
Power pack connecting cable (for semi-micro models) This cable connects to the power supply unit (accessory) that is
set up separately.
36
Power pack (for semi-micro models) This power supply unit (accessory) is set up separately.
W-AD Series only
No. Components Name Function
37 DC IN Connector (for Ionizer) Used to connect the AC adapter and provide power.
38 ionizer power switch Used to turn the ionizer power ON/OFF.
39 Ionizer Connecting Connector Connector for connecting the ionizer.
40 Connecting cable for Ionizer Used to connect the ionizer and balance main body.
41 DC IN Connector (Except Semi-micro model) Used to connect the AC adapter and provide power.
